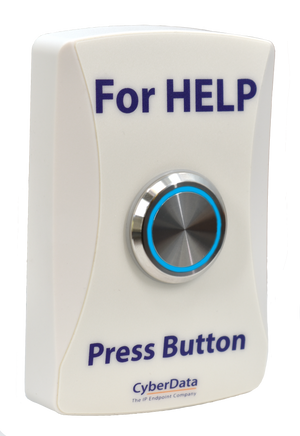

The CyberData WiFi Alert Button provides an easy and reliable device that, when pressed, will interact with the designated IP server to generate an appropriate mass notification response.
The WiFi Alert Button is designed to operate in different environments. Paired with the CyberData SIP Paging Server with Bell Scheduler (part #011146), the Button, when activated, will generate an event which triggers the SIP Paging Server to produce the configured notification response.
In an InformaCast environment, the Button sends a message to the InformaCast Server which then creates an event in the InformaCast software to generate the mass notification
response.
The device can be mounted on a wall or discreetly under a desk. Powered by an external +5V supply - such as a cell phone charger - and with a 4-hour back-up battery, the CyberData WiFi Alert Button is a key component to your emergency notification solution.
- A network of up to 100 Buttons* can be configured with a single CyberData SIP Paging Server or InformaCast Server.
- Large lighted color button
- Adjustable button brightness, blink rates and activation time
- Adjustable buzzer
- +5V power from USB wall charger with 3 ft cable (included)
- Built-in battery backup allows up to 4 hours of uninterrupted operation
- 802.11 b/g/n WiFi support
- WPA2 PSK
- WiFi Configuration/Discovery Tool
- Network battery diagnostic monitoring
- Over-the-air upgradeable firmware
| Wi-Fi | 802.11 b/g/n |
| On-board PCB Antenna | Gain of 3.7dBi |
| Power | External +5 Volt supply |
| Battery Backup | Up to four hours |
| Operating Range |
Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Dimensions* | Length: 2.95 in. [75 mm] Width: 1.01 in. [25.7 mm] Height: 4.53 in. [115 mm] |
| Weight | 0.25 lbs. [0.11 kg] |
| Boxed Weight | 0.45 lbs. [0.2 kg] |
| Compliance | RoHS Compliant |
| Warranty | 2 Years Limited |
| Part Number | 011527 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
Why would I want a WiFi Alert Button?
The WiFi alert button is an economical alternative to a SIP Call Button. Since this button is USB-Powered and communicates over Wi-Fi it can be installed in many different areas when compared to the SIP based variant. If you need to send an alert message over a network, the WiFi Alert button is an excellent option that would not require a new ethernet connection.
Can it work with both a SIP Paging Server AND Singlewire's InformaCast?
Not at the same time, it can work with either individually.
What comes with the WiFi Button?
The CyberData WiFi Alert Button includes the button, a 5-Volt AC to USB charger with a US plug, and a three-foot white USB to Micro-USB right angle cable.
Are any batteries required for the WiFi Button?
No, the WiFi Alert Button comes with an internal Lithium-ion battery to achieve the four-hour battery backup.
How do I get the WiFi Alert Button on my Wi-Fi Network?
Connect the WiFi button to a windows-based PC and use the CyberData Wi-Fi button utility. For more in-depth steps please review the documentation.
What Wi-Fi frequencies does the WiFi Alert Button Support?
2.3gz
Is the color of the LED button customizable?
No, the button can only illuminate blue.
Do I have to use the included AC to USB power supply?
No, it can be powered with a 5v transformer. Please consult a local certified electrician for installation assistance.
- Typical Installation
- SIP Paging Server Wi-Fi Button Typical Installation with Generator Backup
- Dimensions
- J1 Power Connection
- Wall Mounting Option
- Mounting Option—Optional Plastic Low Voltage Bracket (Not Included)
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:3/15/23 |
| PDF Quick Start Guide | DATE:3/7/23 |
| PDF Quick-Reference Placemat | DATE:3/7/23 |
| PDF Operations Guide | DATE:3/7/23 |
| PDF Setup Guide | DATE:3/14/23 |
| Firmware, Drivers & Utilities | |
| ZIP WiFi Alert Button Setup Utility and Drivers | DATE:3/9/21 |
| ZIP Firmware 2.4.2 | DATE:3/13/23 |
| ZIP Firmware 2.4.0 | DATE:3/9/21 |
Description
The CyberData WiFi Alert Button provides an easy and reliable device that, when pressed, will interact with the designated IP server to generate an appropriate mass notification response.
The WiFi Alert Button is designed to operate in different environments. Paired with the CyberData SIP Paging Server with Bell Scheduler (part #011146), the Button, when activated, will generate an event which triggers the SIP Paging Server to produce the configured notification response.
In an InformaCast environment, the Button sends a message to the InformaCast Server which then creates an event in the InformaCast software to generate the mass notification
response.
The device can be mounted on a wall or discreetly under a desk. Powered by an external +5V supply - such as a cell phone charger - and with a 4-hour back-up battery, the CyberData WiFi Alert Button is a key component to your emergency notification solution.
Features
- A network of up to 100 Buttons* can be configured with a single CyberData SIP Paging Server or InformaCast Server.
- Large lighted color button
- Adjustable button brightness, blink rates and activation time
- Adjustable buzzer
- +5V power from USB wall charger with 3 ft cable (included)
- Built-in battery backup allows up to 4 hours of uninterrupted operation
- 802.11 b/g/n WiFi support
- WPA2 PSK
- WiFi Configuration/Discovery Tool
- Network battery diagnostic monitoring
- Over-the-air upgradeable firmware
Specs
| Wi-Fi | 802.11 b/g/n |
| On-board PCB Antenna | Gain of 3.7dBi |
| Power | External +5 Volt supply |
| Battery Backup | Up to four hours |
| Operating Range |
Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Dimensions* | Length: 2.95 in. [75 mm] Width: 1.01 in. [25.7 mm] Height: 4.53 in. [115 mm] |
| Weight | 0.25 lbs. [0.11 kg] |
| Boxed Weight | 0.45 lbs. [0.2 kg] |
| Compliance | RoHS Compliant |
| Warranty | 2 Years Limited |
| Part Number | 011527 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
FAQs
Why would I want a WiFi Alert Button?
The WiFi alert button is an economical alternative to a SIP Call Button. Since this button is USB-Powered and communicates over Wi-Fi it can be installed in many different areas when compared to the SIP based variant. If you need to send an alert message over a network, the WiFi Alert button is an excellent option that would not require a new ethernet connection.
Can it work with both a SIP Paging Server AND Singlewire's InformaCast?
Not at the same time, it can work with either individually.
What comes with the WiFi Button?
The CyberData WiFi Alert Button includes the button, a 5-Volt AC to USB charger with a US plug, and a three-foot white USB to Micro-USB right angle cable.
Are any batteries required for the WiFi Button?
No, the WiFi Alert Button comes with an internal Lithium-ion battery to achieve the four-hour battery backup.
How do I get the WiFi Alert Button on my Wi-Fi Network?
Connect the WiFi button to a windows-based PC and use the CyberData Wi-Fi button utility. For more in-depth steps please review the documentation.
What Wi-Fi frequencies does the WiFi Alert Button Support?
2.3gz
Is the color of the LED button customizable?
No, the button can only illuminate blue.
Do I have to use the included AC to USB power supply?
No, it can be powered with a 5v transformer. Please consult a local certified electrician for installation assistance.
Installation
- Typical Installation
- SIP Paging Server Wi-Fi Button Typical Installation with Generator Backup
- Dimensions
- J1 Power Connection
- Wall Mounting Option
- Mounting Option—Optional Plastic Low Voltage Bracket (Not Included)
Downloads
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:3/15/23 |
| PDF Quick Start Guide | DATE:3/7/23 |
| PDF Quick-Reference Placemat | DATE:3/7/23 |
| PDF Operations Guide | DATE:3/7/23 |
| PDF Setup Guide | DATE:3/14/23 |
| Firmware, Drivers & Utilities | |
| ZIP WiFi Alert Button Setup Utility and Drivers | DATE:3/9/21 |
| ZIP Firmware 2.4.2 | DATE:3/13/23 |
| ZIP Firmware 2.4.0 | DATE:3/9/21 |
