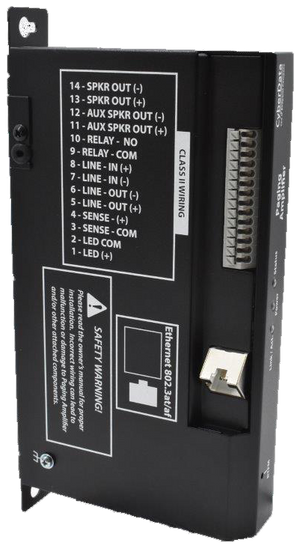

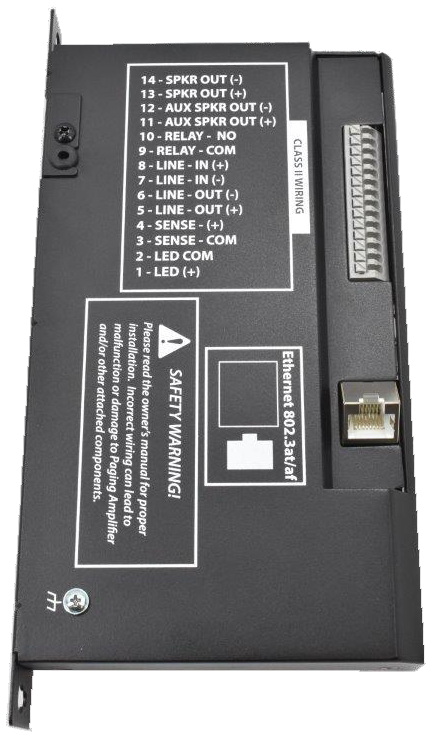

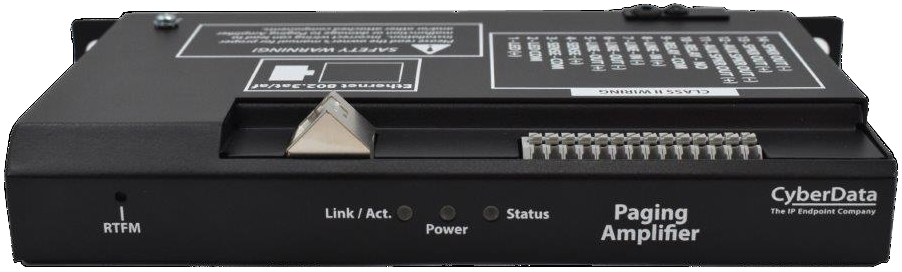

011403 InformaCast® Enabled Paging Amplifier
Part Number: 011403
MSRP: $670.00
- Description
- Features
- Specs
- FAQs
- Installation
- Downloads
The InformaCast Enabled Paging Amplifier is a Power over Ethernet (802.3at) VoIP paging device and loud ringer for use in places that need loud paging. It provides an easy method for implementing an IP-based overhead paging system for your existing or new VoIP Phone system.
Ethernet I/F | 10/100 Mbps | |
Protocol | SIP RFC 3261 Compatible | |
Notification Software | Singlewire InformaCast v4.0 and above | |
Power Input | PoE 802.3at or 802.3af | |
Audio Output |
802.3at: 117.9 (+/- 0.2) dBC @1M and 1kHz* 802.3af: 115.1 (+/- 0.2) dBC @1M and 1kHz* |
|
Line In: Input Signal Amplitudes Input Impedance |
2.0 VPP Maximum 10k Ohm |
|
Line Out: Output Signal Amplitudes Output Level Total Harmonic Distortion Output Impedance |
2.0 VPP Maximum +2dBm nominal 0.5% maximum 10k Ohm |
|
On-Board Relay | 1A @ 30 VDC | |
Payload Types | G.711 a-law, G.711 µ-law, G.722, and G.729 | |
Network Security | TLS 1.2, SRTP, HTTPS |
|
Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
|
Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) | |
Storage Altitude | Up to 15,000 ft. (4573 m) | |
Dimensions** | 1.10 in. [29.0 mm] Length 4.20 in. [107.0 mm] Width 8.50 in. [215.0 mm] Height |
|
Weight Boxed Weight |
1.27 lbs. [0.57 kg] 2.0 lbs. [0.90 kg] |
|
Compliance | CE: EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 62368-1; RoHS Compliant; FCC Part 15 Class A; Industry Canada ICES-3 Class A; IEEE 802.3 Compliant; TAA Compliant |
|
Warranty | 2 Years Limited | |
Part Number | 011403 |
*When used with the optional 011471 IP66 Analog Horn (sold separately)
**Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
What is multicast?
IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.
Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.
CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.
Questions regarding InformaCast-enabled devices?
I am looking for an approved panic button to connect to your amplifiers that has a cover over the panic button to avoid accidental pressing and also one that may be waterproof for outside use.
See the following webpage for a nice selection: https://www.sti-usa.com/pcategories/waterproof_buttons_and_switches/
Typical Installation
Connecting the Auxiliary RGB Strobe Kit to the Paging Amplifier
![](https://files.cyberdata.net/assets/common/011288-strobe-to-paging-amp.png)
Low Power Mode One Speaker
![](https://files.cyberdata.net/assets/common/011324-typical-installation-lowpower.png)
High Power Mode One Speaker
![](https://files.cyberdata.net/assets/common/011324-typical-installation-highpower.png)
High Power Mode Two Speakers
![](https://files.cyberdata.net/assets/common/011324-typical-installation-twospeakers.png)
Typical Warehouse Paging Setup
![](https://files.cyberdata.net/assets/common/typical-warehouse-paging-setup.png)
Intelligibility Outdoor Field Test
![](https://files.cyberdata.net/assets/common/outdoor_field_test.png)
Replacing the Speaker Wire
![](https://files.cyberdata.net/assets/common/011471-speaker-wire_replacement.png)
Suggested Outdoor Installation for Security
![](https://files.cyberdata.net/assets/common/011471-suggested-installation.png)
Serial Number begins with 4030xxxxx
Serial Number begins with 4032xxxxx
Documentation | |
---|---|
Description | Date |
PDF Datasheet | DATE:6/12/23 |
PDF Quick Start Guide | DATE:6/12/23 |
PDF Quick-Reference Placemat | DATE:6/12/23 |
PDF Operations Guide (firmware version 20.5.0) | DATE:6/12/23 |
PDF CyberData Night Ringer Explained | DATE:3/25/20 |
PDF CE Declaration of Conformity | DATE:5/15/17 |
Connecting to Compatible IP-PBX Servers | |
Firmware, Drivers & Utilities | |
ZIP Firmware 20.5.0 | DATE:10/18/22 |
ZIP The SolarWinds TFTP server is used when autoprovisioning firmware updates or audio files. | |
ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network. |
Description
The InformaCast Enabled Paging Amplifier is a Power over Ethernet (802.3at) VoIP paging device and loud ringer for use in places that need loud paging. It provides an easy method for implementing an IP-based overhead paging system for your existing or new VoIP Phone system.
Features
Specs
Ethernet I/F | 10/100 Mbps | |
Protocol | SIP RFC 3261 Compatible | |
Notification Software | Singlewire InformaCast v4.0 and above | |
Power Input | PoE 802.3at or 802.3af | |
Audio Output |
802.3at: 117.9 (+/- 0.2) dBC @1M and 1kHz* 802.3af: 115.1 (+/- 0.2) dBC @1M and 1kHz* |
|
Line In: Input Signal Amplitudes Input Impedance |
2.0 VPP Maximum 10k Ohm |
|
Line Out: Output Signal Amplitudes Output Level Total Harmonic Distortion Output Impedance |
2.0 VPP Maximum +2dBm nominal 0.5% maximum 10k Ohm |
|
On-Board Relay | 1A @ 30 VDC | |
Payload Types | G.711 a-law, G.711 µ-law, G.722, and G.729 | |
Network Security | TLS 1.2, SRTP, HTTPS |
|
Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
|
Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) | |
Storage Altitude | Up to 15,000 ft. (4573 m) | |
Dimensions** | 1.10 in. [29.0 mm] Length 4.20 in. [107.0 mm] Width 8.50 in. [215.0 mm] Height |
|
Weight Boxed Weight |
1.27 lbs. [0.57 kg] 2.0 lbs. [0.90 kg] |
|
Compliance | CE: EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 62368-1; RoHS Compliant; FCC Part 15 Class A; Industry Canada ICES-3 Class A; IEEE 802.3 Compliant; TAA Compliant |
|
Warranty | 2 Years Limited | |
Part Number | 011403 |
*When used with the optional 011471 IP66 Analog Horn (sold separately)
**Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
FAQs
What is multicast?
IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.
Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.
CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.
Questions regarding InformaCast-enabled devices?
I am looking for an approved panic button to connect to your amplifiers that has a cover over the panic button to avoid accidental pressing and also one that may be waterproof for outside use.
See the following webpage for a nice selection: https://www.sti-usa.com/pcategories/waterproof_buttons_and_switches/
Installation
Typical Installation
Connecting the Auxiliary RGB Strobe Kit to the Paging Amplifier
![](https://files.cyberdata.net/assets/common/011288-strobe-to-paging-amp.png)
Low Power Mode One Speaker
![](https://files.cyberdata.net/assets/common/011324-typical-installation-lowpower.png)
High Power Mode One Speaker
![](https://files.cyberdata.net/assets/common/011324-typical-installation-highpower.png)
High Power Mode Two Speakers
![](https://files.cyberdata.net/assets/common/011324-typical-installation-twospeakers.png)
Typical Warehouse Paging Setup
![](https://files.cyberdata.net/assets/common/typical-warehouse-paging-setup.png)
Intelligibility Outdoor Field Test
![](https://files.cyberdata.net/assets/common/outdoor_field_test.png)
Replacing the Speaker Wire
![](https://files.cyberdata.net/assets/common/011471-speaker-wire_replacement.png)
Suggested Outdoor Installation for Security
![](https://files.cyberdata.net/assets/common/011471-suggested-installation.png)
Downloads
Serial Number begins with 4030xxxxx
Serial Number begins with 4032xxxxx
Documentation | |
---|---|
Description | Date |
PDF Datasheet | DATE:6/12/23 |
PDF Quick Start Guide | DATE:6/12/23 |
PDF Quick-Reference Placemat | DATE:6/12/23 |
PDF Operations Guide (firmware version 20.5.0) | DATE:6/12/23 |
PDF CyberData Night Ringer Explained | DATE:3/25/20 |
PDF CE Declaration of Conformity | DATE:5/15/17 |
Connecting to Compatible IP-PBX Servers | |
Firmware, Drivers & Utilities | |
ZIP Firmware 20.5.0 | DATE:10/18/22 |
ZIP The SolarWinds TFTP server is used when autoprovisioning firmware updates or audio files. | |
ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network. |
