**NEW RELEASE** 011590 IP66 Analog Horn 25V/70V/8 Ohm

Part Number: 011590

MSRP: $93.00

CyberData’s Try & Buy program allows you to order QTY (1) of any SIP device and try it for 30 days to determine if it will meet your needs. When “Try and Buy" is selected, we charge on shipment and we will apply a credit IF the product is returned through our RMA process within 30 days, in good condition in its original packaging.

Once returned and upon inspection, CyberData will apply the credit to your credit card, less any shipping and handling charges that CyberData incurs. No returns are accepted after 30 days under our Try & Buy program.

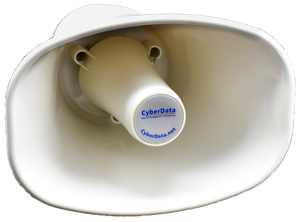

The new IP66 Analog Horn 25V/75V/8 Ohm is a heavy duty horn rated for outdoor use, while also being appropriate for warehouses,
manufacturing plants, garages and any environment needing loud paging.

The device is an analog re-entrant horn with a powerful and efficient compression driver designed for good speech intelligibility and a
large area of coverage.

The IP66 rating means that it is built for harsh outdoor environments including high moisture, dust, oil, and high pressure water jets.

When used with the CyberData SIP Paging 25V/70V Amplifier it can provide a cost-effective solution that can greatly extend the sound
coverage area. The Horn offers the option of constant voltage at either 25 or 70 volts as well as a traditional 8 Ohm mode.
Configured with 5 power tap settings, the user can select the desired wattage and equivalent dB levels for the space served.
Easy installation allows multiple horns to tee off a single home run cable to the Amplifier.

The Horn is also used with the CyberData Loudspeaker and Paging Amps shown below.

  • Supports 25V, 70V or traditional 8 Ohm power input
  • Multiple power tap settings for desired dB output
  • High efficiency speaker driver
  • Designed for good speech intelligibility
  • Suitable for background music
  •

  • Weather and corrosion resistant design
  • IP66 Rating
  • Adjustable mounting base
  • 3.28 ft (1m) connected cable
  • Modes 8 Ohm, 25V, 70V
    Direct Impedance 8 Ohms
    Power Handling 20 watts continuous duty
    Power Input 25V, 70V or 8 Ohm

    Audio Output:


    8 Ohm



    Constant Voltage










    802.3at: 117.9 (+/- 0.2) dBC @ 1M and 1 kHz*
    802.3af: 115.1 (+/- 0.2) dBC @ 1M and 1 kHz*



    Power Taps:   15W   |  10W   |    7W    |   2W

        25V            117.5  |   117   |  115.2  |  110.4

        70V            116.9  |  115.9  |   114   |  110.9

    *Note: Recorded output levels when tested with one speaker (011590) using a CyberData Paging Amplifier (011324)

    Frequency Response 400 - 8000K Hz
    IP Rating IP66
    Storage Temperature
    Storage Altitude
    -40 C to 70 C (-40 F to 158 F)
    Up to 15,000 ft. (4573 m)
    Operating Range Temperature: -40 degrees C to 55 degrees  C (-40 degrees F to 131 degrees  F)
    Humidity: 5-95%, non-condensing
    Dimensions**
    **Note: Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
    Length: 8.86 in. [225 mm]
    Width: 9.33 in. [237 mm]
    Height: 6.38 in. [162 mm] (without stand)
                  7.09 in. [180 mm] (including stand)
    Weight 3.0 lbs. [1.36 kg]
    Boxed Weight 3.6 lbs. [1.63 kg]
    Warranty 2 Years Limited
    Part Number 011590

    Typical Installation

    Typical Installation

    Dimensions

    Dimensions

    Speaker Options

    Low Power Mode One Speaker

    High Power Mode One Speaker


    High Power Mode Two Speakers

    Intelligibility Outdoor Field Test

    Intelligibility Outdoor Field Test

    Replacing the Speaker Wire

    Replacing the Speaker Wire

    IP66 Weatherproofing

    IP66 Weatherproofing

    Suggested Outdoor Installation for Security

    Suggested Outdoor Installation for Security
    Documentation
    Description Date
    PDF Datasheet DATE:9/25/23
    PDF Quick-Reference Placemat DATE:12/5/23



    Description

    The new IP66 Analog Horn 25V/75V/8 Ohm is a heavy duty horn rated for outdoor use, while also being appropriate for warehouses,
    manufacturing plants, garages and any environment needing loud paging.

    The device is an analog re-entrant horn with a powerful and efficient compression driver designed for good speech intelligibility and a
    large area of coverage.

    The IP66 rating means that it is built for harsh outdoor environments including high moisture, dust, oil, and high pressure water jets.

    When used with the CyberData SIP Paging 25V/70V Amplifier it can provide a cost-effective solution that can greatly extend the sound
    coverage area. The Horn offers the option of constant voltage at either 25 or 70 volts as well as a traditional 8 Ohm mode.
    Configured with 5 power tap settings, the user can select the desired wattage and equivalent dB levels for the space served.
    Easy installation allows multiple horns to tee off a single home run cable to the Amplifier.

    The Horn is also used with the CyberData Loudspeaker and Paging Amps shown below.

    Features

  • Supports 25V, 70V or traditional 8 Ohm power input
  • Multiple power tap settings for desired dB output
  • High efficiency speaker driver
  • Designed for good speech intelligibility
  • Suitable for background music
  •

  • Weather and corrosion resistant design
  • IP66 Rating
  • Adjustable mounting base
  • 3.28 ft (1m) connected cable
  • Specs

    Modes 8 Ohm, 25V, 70V
    Direct Impedance 8 Ohms
    Power Handling 20 watts continuous duty
    Power Input 25V, 70V or 8 Ohm

    Audio Output:


    8 Ohm



    Constant Voltage










    802.3at: 117.9 (+/- 0.2) dBC @ 1M and 1 kHz*
    802.3af: 115.1 (+/- 0.2) dBC @ 1M and 1 kHz*



    Power Taps:   15W   |  10W   |    7W    |   2W

        25V            117.5  |   117   |  115.2  |  110.4

        70V            116.9  |  115.9  |   114   |  110.9

    *Note: Recorded output levels when tested with one speaker (011590) using a CyberData Paging Amplifier (011324)

    Frequency Response 400 - 8000K Hz
    IP Rating IP66
    Storage Temperature
    Storage Altitude
    -40 C to 70 C (-40 F to 158 F)
    Up to 15,000 ft. (4573 m)
    Operating Range Temperature: -40 degrees C to 55 degrees  C (-40 degrees F to 131 degrees  F)
    Humidity: 5-95%, non-condensing
    Dimensions**
    **Note: Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
    Length: 8.86 in. [225 mm]
    Width: 9.33 in. [237 mm]
    Height: 6.38 in. [162 mm] (without stand)
                  7.09 in. [180 mm] (including stand)
    Weight 3.0 lbs. [1.36 kg]
    Boxed Weight 3.6 lbs. [1.63 kg]
    Warranty 2 Years Limited
    Part Number 011590
