Part Number: 011472

MSRP: $647.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

https://support.cyberdata.net/portal/en/newticket

CyberData’s Try & Buy program allows you to order QTY (1) of any SIP device and try it for 30 days to determine if it will meet your needs. When “Try and Buy" is selected, we charge on shipment and we will apply a credit IF the product is returned through our RMA process within 30 days, in good condition in its original packaging.

Once returned and upon inspection, CyberData will apply the credit to your credit card, less any shipping and handling charges that CyberData incurs. No returns are accepted after 30 days under our Try & Buy program.

Need help configuring your devices?

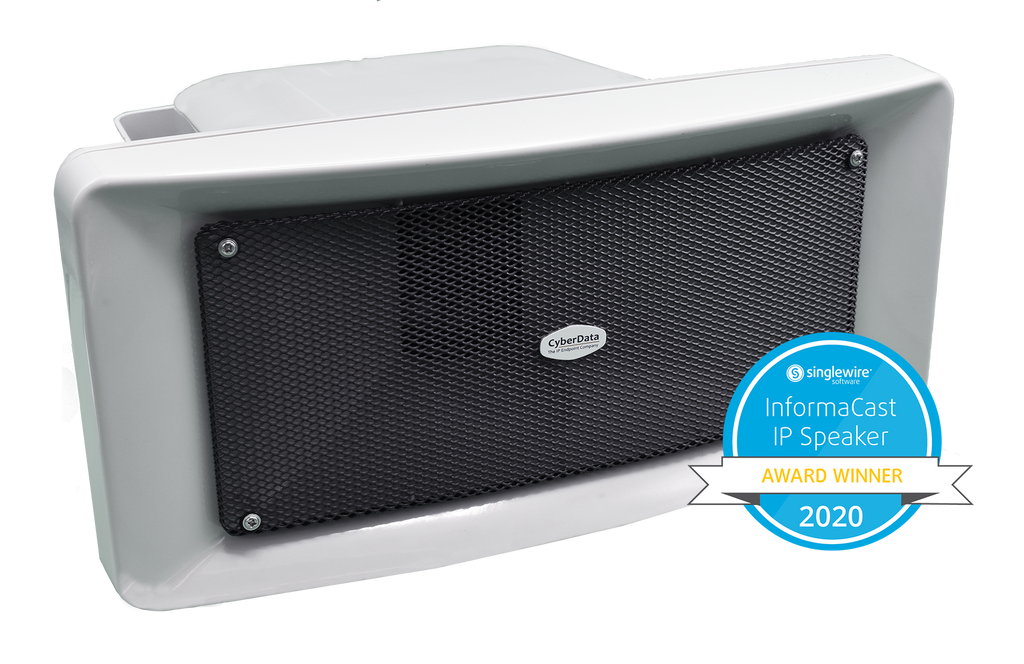

The CyberData InformaCast Enabled IP66 Indoor/Outdoor Horn is for use with Singlewire's InformaCast paging and emergency notification software.

The Horn connects into local area networks with a single CAT5/6 cable from your PoE switch and provides an easy method for implementing a loud IP-based overhead paging system for loud areas, warehouses, manufacturing areas, and outdoor areas.

The unique perforated front screen prevents birds and flying insects, such as wasps, from building nests inside the Horn thus eliminating the need for periodic clean out.

  • Compatible with Singlewire InformaCast v12.1, including support for downloading SIP credentials from InformaCast
  • Supports Singlewire InformaCast High Quality Audio
  • Concurrent InformaCast, SIP and multicast
  • Supports multiple user accounts, with distinct log in credentials
  • Paging prioritization
  • Support for 10 multicast paging groups
  • Supports user-uploadable ring tones and up to ten stored messages
  • Ambient Noise Compensation adjusts the volume, at the start of a stream,
    to compensate for the environment's ambient noise level. This helps to ensure
    all pages and notifications will be heard even as the daily ambient noise levels fluctuate.
  • Support for security code to prevent unwanted SIP calls
  • Can receive pages directly from Poly phones as well as other devices that can send standard multicast
  • Loud/Night Ringer function - second SIP extension
  • Supports delayed pages with call buffering
  • Audio health check, to verify operation of hardware, that can be scheduled or launched manually



  • Digital volume control
  • Sealed network cable gland
  • Protective screen keeps out flying pests and reduces maintenance



  • TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
  • Autoprovisioning via HTTP, HTTPS, or TFTP
  • HTTPS or HTTP web-based configuration. HTTPS is enabled by default
  • 802.11q VLAN tagging
  • Configurable event generation for device health and status monitoring
  • Support for Cisco SRST resiliency
  • HTTP Command Interface
Ethernet I/F 10/100 Mbps
Protocol SIP RFC 3261 Compatible
Notification Software Singlewire InformaCast v4.0 and above
Power Input PoE 802.3at or 802.3af
Audio Output 802.3at: 107.7 (+/- 0.2) dBC @1M and 1kHz
802.3af: 104.8 (+/- 0.2) dBC @1M and 1kHz
Payload Types G.711 a-law, G.711 μ-law, G.722, G.729
Network Security TLS 1.2, SRTP, HTTPS
IP Rating IP66
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity: 5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Dimensions* Length: 14.404 in. [366 mm]
Width: 10.630 in. [270 mm]
Height: 6.772 in. [172 mm] (without stand)
Height: 9.291 in. [236 mm] (with stand)
Weight
Boxed Weight
6.6 lbs. [3.00 kg]
8.8 lbs. [3.99 kg]
Compliance CE: EMC Directive – Class A EN 55032
& EN 55024, LV Safety Directive –EN 62368-1;
RoHS Compliant; FCC Part 15 Class A;
Industry Canada ICES-3 Class A;
IEEE 802.3 Compliant; TAA Compliant
Warranty 2 Years Limited
Part Number 011472

*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

What is multicast?

IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.

Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.

CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.

What cage or enclosure is recommended for the horn?

We recommend the G2058 by American-Time. This protective cage is made from 3 gauge wire and has ample space to enclose the horn. https://www.american-time.com/product/g2058/

Typical Installation
Dimensions
Intelligibility Outdoor Field Test

Install the Network Cable Through Weatherproof Cable Gland

Serial Number begins with 4720xxxxx

Documentation
Description Date
PDF Datasheet DATE:9/15/23
PDF Quick Start Guide DATE:5/17/19
PDF Quick-Reference Placemat DATE:2/28/22
PDF Operations Guide (Firmware Version 12.1.0) DATE:4/22/22
PDF Operations Guide (Firmware Version 12.0.3) DATE:8/1/19
PDF Operations Guide (Firmware Version 11.8.5) DATE:5/4/18
PDF Intelligibility Outdoor Field Test DATE:6/19/18
PDF CE Declaration of Conformity DATE:3/17/18
PDF Singlewire Speaker Awards DATE:1/2/20
Connecting to Compatible IP-PBX Servers
Firmware, Drivers & Utilities
ZIP Firmware 12.2.0. See the release notes for more information. DATE: 5/21/20
ZIP Firmware 12.1.0. See the release notes for more information. DATE: 4/6/20
ZIP Firmware 12.0.4. See the release notes for more information. DATE: 8/14/19
ZIP Firmware 12.0.3. See the release notes for more information. DATE: 8/1/19
ZIP Firmware 11.8.5. See the release notes for more information. DATE: 3/26/18
ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network.

Serial Number begins with 4722xxxxx

Documentation
Description Date
PDF Datasheet DATE:9/15/23
PDF Quick Start Guide DATE:2/21/23
PDF Quick-Reference Placemat DATE:10/10/24
PDF Operations Guide (Firmware Version 20.6.1) DATE:9/14/23
PDF Operations Guide (Firmware Version 20.5.0) DATE:10/25/22
PDF Intelligibility Outdoor Field Test DATE:6/19/18
PDF CE Declaration of Conformity DATE:3/17/18
PDF Singlewire Speaker Awards DATE:1/2/20
Connecting to Compatible IP-PBX Servers
Firmware, Drivers & Utilities
ZIP Firmware 20.6.1. See the release notes for more information. DATE:9/13/23
ZIP Firmware 20.5.6. See the release notes for more information. DATE:5/3/23
ZIP Firmware 20.5.5. See the release notes for more information. DATE:3/8/23
ZIP Firmware 20.5.2. See the release notes for more information. DATE:8/24/22
ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network.
