011547 Cisco Webex Desk Pro Video Device Secure Case - Handset

011547 Cisco Webex Desk Pro Video Device Secure Case - Handset

Part Number: 011547

Contact Us For Pricing

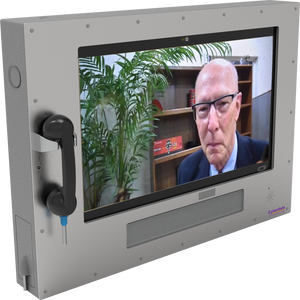

The Cisco Webex Desk Pro Video Device Secure Case is a heavy-duty metal enclosure designed to protect the Cisco Webex Desk Pro from damage. The case will safeguard the video conferencing device in demanding environments such as prisons, jails, juvenile detention facilities, and medical confinement facilities.

It is available with a heavy-duty handset and 32-inch armored cable or as a handsfree device utilizing the speaker and microphones of the Webex Desk Pro. The Lexan panel can be field replaced if damaged. The screws holding the stainless steel front panel are security Torx type.

Initiating a call
Calls can be originated when lifting the handset by programing the Webex Video Device to dial a specific phone number when the handset is lifted. Calls can also be initiated by using the Proximity function from either a Webex Desk application or Proximity app on a smart phone/tablet device. This enables you to outbound dial a call on the Cisco Webex Video Device without needing to touch the screen which is being protected by a Lexan panel.

Answering a call
Calls can be answered by several different methods:

  • Auto answer - through the Webex Video Device's web interface it can be programmed to auto answer any inbound call.
    • Handsfree Mode: the user converses using the internal microphone and speaker of the Webex Video Device.
    • Handset Mode: the Webex Video Device is configured to automatically answer an incoming call where the audio will only play through the handset.
  • Manual answer - the Webex Video Device will ring until the user physically picks up the handset to answer the call, and all audio is played through the handset of the case.

Hanging up a call
Calls are terminated depending on the mode selected:

  • Handsfree or Auto-Answer Mode - the call can only be ended when the ‘far-side’ participant has hung up. The call cannot be ended by the CyberData Video Device Secure Case, however, the call can be terminated using the Proximity function of the Webex Desk PC application or the Cisco Proximity mobile application.
  • Handset Mode - the call ends when the handset is hung up on the phone cradle hook switch of the Webex Video Device Secure Case.
Notes
  • The Cisco Webex Desk Pro Video Device is sold separately.
  • The screen is protected with a sheet of Lexan plastic so the touch function is not available.
  • Handset volume control is available by accessing the Webex Video Device's web interface remotely.
  • The Webex Video Device can not be shipped inside the case;  it must be installed at the site of operation.
  • The power switch is accessible with a special tool, the Power Switch Access Pin, which is included.
  • Stainless Steel front cover
  • Lexan cover for Webex Video Device display; replacement panels available
  • Powder-coated Back Box
  • Handset with 32-inch armored cable
  • USB with Hookswitch Controller
  • Dimensions Length: 31.496 inches [800 mm]
    Width: 4.016 inches [102 mm] - not including handset
    Height: 17.262 inches [438 mm]
    Weight 38.5 lbs. [17.46 kg]
    Compliance RoHS and TAA Compliant
    Warranty 2 Year Limited
    Part Number

    011547, Cisco Webex Desk Pro Video Device Secure Case Handset

    011552, Cisco Webex Desk Pro Video Device Secure Case Handsfree - Alternate Option Available

    Note: Dimensions are measured from the perspective of the product being upright with the front of the product facing you.


                Mounting


                Assembly




    Documentation
    Documentation
    Description Date
    PDF Datasheet DATE:6/9/22
    PDF Quick-Reference Placemat 8/2/22
    Firmware, Drivers & Utilities

    Description

    The Cisco Webex Desk Pro Video Device Secure Case is a heavy-duty metal enclosure designed to protect the Cisco Webex Desk Pro from damage. The case will safeguard the video conferencing device in demanding environments such as prisons, jails, juvenile detention facilities, and medical confinement facilities.

    It is available with a heavy-duty handset and 32-inch armored cable or as a handsfree device utilizing the speaker and microphones of the Webex Desk Pro. The Lexan panel can be field replaced if damaged. The screws holding the stainless steel front panel are security Torx type.

    Initiating a call
    Calls can be originated when lifting the handset by programing the Webex Video Device to dial a specific phone number when the handset is lifted. Calls can also be initiated by using the Proximity function from either a Webex Desk application or Proximity app on a smart phone/tablet device. This enables you to outbound dial a call on the Cisco Webex Video Device without needing to touch the screen which is being protected by a Lexan panel.

    Answering a call
    Calls can be answered by several different methods:

    • Auto answer - through the Webex Video Device's web interface it can be programmed to auto answer any inbound call.
      • Handsfree Mode: the user converses using the internal microphone and speaker of the Webex Video Device.
      • Handset Mode: the Webex Video Device is configured to automatically answer an incoming call where the audio will only play through the handset.
    • Manual answer - the Webex Video Device will ring until the user physically picks up the handset to answer the call, and all audio is played through the handset of the case.

    Hanging up a call
    Calls are terminated depending on the mode selected:

    • Handsfree or Auto-Answer Mode - the call can only be ended when the ‘far-side’ participant has hung up. The call cannot be ended by the CyberData Video Device Secure Case, however, the call can be terminated using the Proximity function of the Webex Desk PC application or the Cisco Proximity mobile application.
    • Handset Mode - the call ends when the handset is hung up on the phone cradle hook switch of the Webex Video Device Secure Case.
    Notes
    • The Cisco Webex Desk Pro Video Device is sold separately.
    • The screen is protected with a sheet of Lexan plastic so the touch function is not available.
    • Handset volume control is available by accessing the Webex Video Device's web interface remotely.
    • The Webex Video Device can not be shipped inside the case;  it must be installed at the site of operation.
    • The power switch is accessible with a special tool, the Power Switch Access Pin, which is included.

    Features

  • Stainless Steel front cover
  • Lexan cover for Webex Video Device display; replacement panels available
  • Powder-coated Back Box
  • Handset with 32-inch armored cable
  • USB with Hookswitch Controller
  • Specs

    Dimensions Length: 31.496 inches [800 mm]
    Width: 4.016 inches [102 mm] - not including handset
    Height: 17.262 inches [438 mm]
    Weight 38.5 lbs. [17.46 kg]
    Compliance RoHS and TAA Compliant
    Warranty 2 Year Limited
    Part Number

    011547, Cisco Webex Desk Pro Video Device Secure Case Handset

    011552, Cisco Webex Desk Pro Video Device Secure Case Handsfree - Alternate Option Available

    Note: Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
