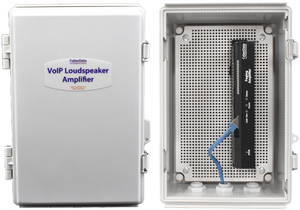

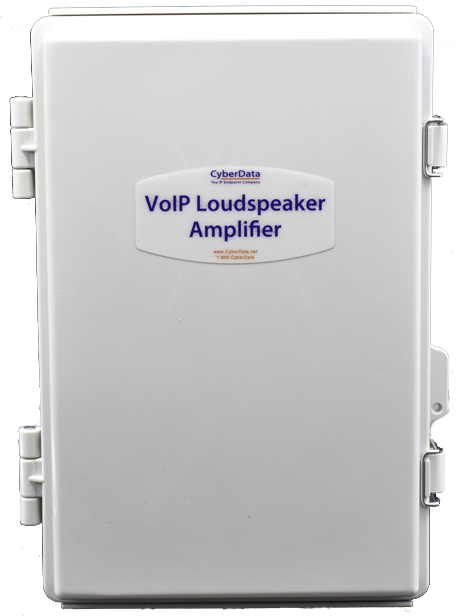

011407 InformaCast® Enabled Loudspeaker Amplifier (PoE)
Part Number: 011407
MSRP: $746.00
- Description
- Features
- Specs
- FAQs
- Installation
- Downloads
The CyberData InformaCast Enabled Loudspeaker Amplifier is for use with Singlewire's InformaCast paging and emergency notification software.
This PoE-powered paging device and loud ringer is for use in places that need loud paging. It provides an easy method for implementing an IP-based overhead paging system for your existing or new VoIP Phone system.

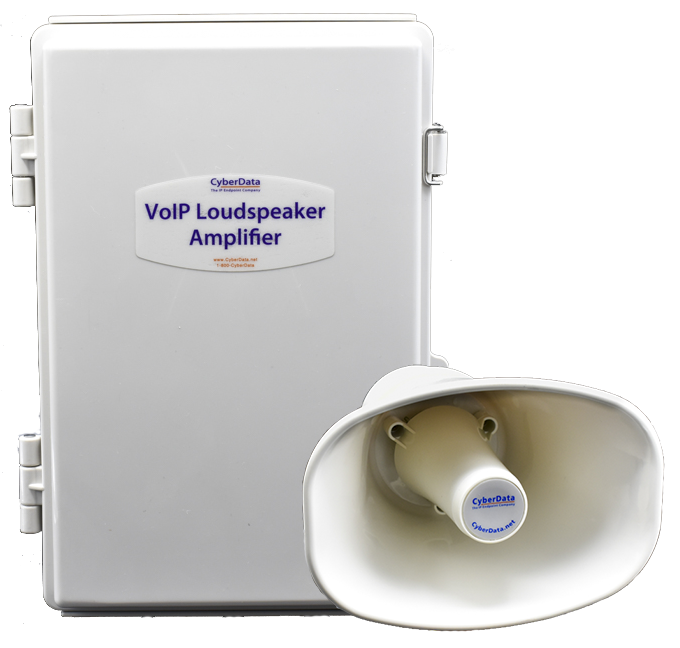

The InformaCast Enabled Loudspeaker Amplifier can have one or two 011471 IP66 Analog Horns attached. See more details in the Operations Guide or under the Installation tab above.
- Compatible with Singlewire InformaCast v12.1 and higher, including support for downloading SIP credentials from InformaCast
- Supports Singlewire InformaCast High Quality Audio
- Capable of receiving Singlewire InformaCast, SIP, and Multicast messages
- Support for InformaCast resiliency
- Concurrent InformaCast, SIP and multicast paging
- Loud/Night Ringer function - second SIP extension
- Paging Prioritization
- Support for 10 multicast paging groups
- 9 user-uploadable page messages
- Can receive pages directly from Poly phones as well as other devices that can send standard multicast
- Sense input capable of generating events or SIP calls
- Supports delayed pages, i.e. call buffering
- Support for security code to prevent unwanted SIP calls
- Support for auxiliary strobe
- Line-in for background music
- Line-out connector
- DTMF controlled relay
- Supports up to two 011471 IP66 Analog Horns or other 8 Ohm speaker
- Network volume control
- TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
- Autoprovisioning via HTTPS, HTTP or TFTP
- HTTPS web based configuration
- Configurable event generation for device health and status monitoring
- 802.11q VLAN tagging
- HTTPS command interface
- Support for Cisco SRST resiliency
Ethernet I/F | 10/100 Mbps | |
Protocol | SIP RFC 3261 Compatible | |
Notification Software | Singlewire InformaCast v4.0 and above | |
Power Input | PoE 802.3at or 802.3af | |
Audio Output |
802.3at: 117.9 (+/- 0.2) dBC @1M and 1kHz* 802.3af: 115.1 (+/- 0.2) dBC @1M and 1kHz* |
|
Line In: Input Signal Amplitudes Input Impedance |
2.0 VPP Maximum 10k Ohm |
|
Line Out: Output Signal Amplitudes Output Level Total Harmonic Distortion Output Impedance |
2.0 VPP Maximum +2dBm nominal 0.5% maximum 10k Ohm |
|
On-Board Relay | 1A @ 30 VDC | |
Payload Types | G.711 a-law, G.711 µ-law, G.722, and G.729 | |
Network Security | TLS/SSL 1.2 and SRTP | |
Enclosure | UL 94-HB flame resistant, IK 08 Impact-rated, IP66 enclosure | |
Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
|
Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) | |
Storage Altitude | Up to 15,000 ft. (4573 m) | |
Dimensions** | 10 in. [254 mm] Length 4 in. [101.6 mm] Width 14 in. [355.6 mm] Height |
|
Weight Boxed Weight |
3.6 lbs. [1.63 kg] 4.6 lbs. [2.1 kg] |
|
Compliance | CE: EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 62368-1; RoHS Compliant; FCC Part 15 Class A; Industry Canada ICES-3 Class A; IEEE 802.3 Compliant; TAA Compliant |
|
Warranty | 2 Years Limited | |
Part Number | 011407 |
*When used with the optional 011471 IP66 Analog Horn (sold separately)
**Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
What is multicast?
IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.
Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.
CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.
Questions regarding Singlewire-enabled devices?
I am looking for an approved panic button to connect to your amplifiers that has a cover over the panic button to avoid accidental pressing and also one that may be waterproof for outside use.
See the following webpage for a nice selection: https://www.sti-usa.com/pcategories/waterproof_buttons_and_switches/
Typical Installation
Connecting the Auxiliary RGB Strobe Kit to the Loudspeaker Amplifier
Low Power Mode One Speaker
High Power Mode One Speaker
High Power Mode Two Speakers
Typical Warehouse Paging Setup
Intelligibility Outdoor Field Test

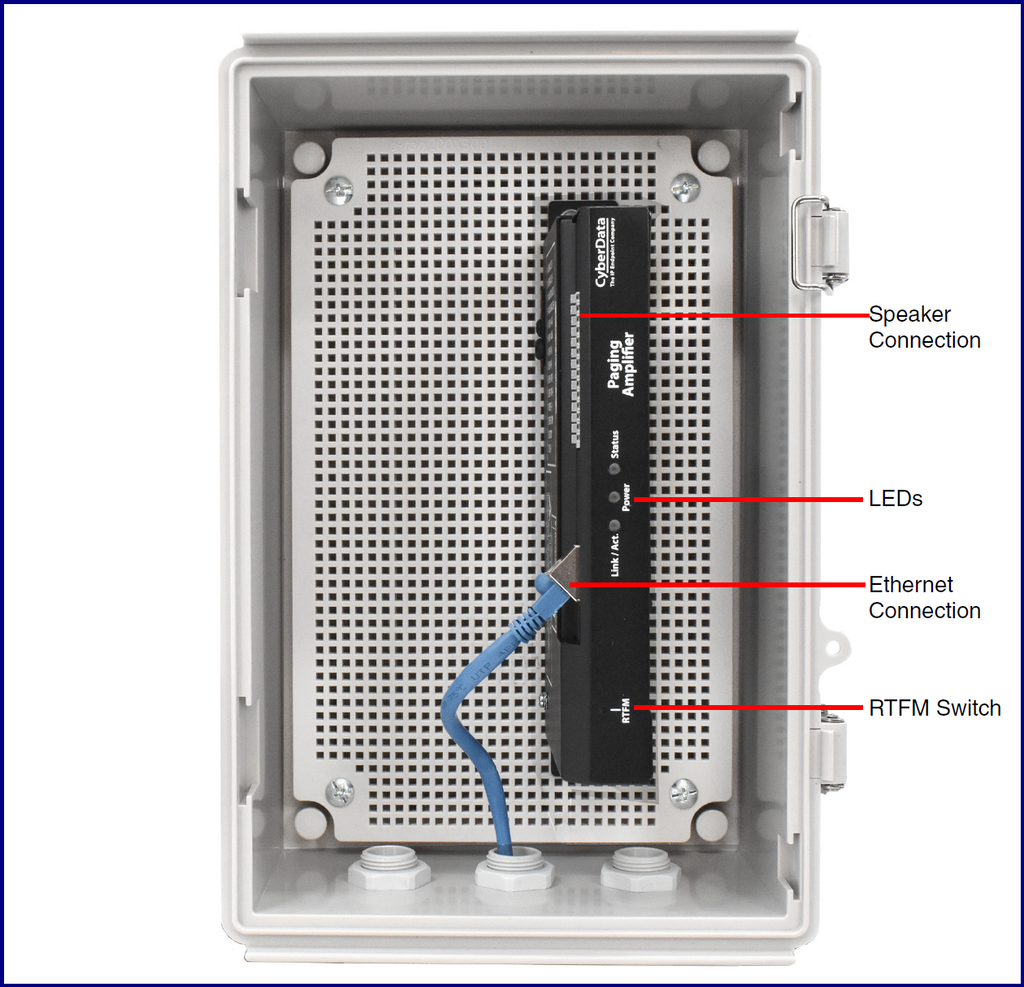

Components
Replacing the Speaker Wire
IP66 Weatherproofing
Suggested Installation of the Horn
Serial Number begins with 4070xxxxx
Serial Number begins with 4072xxxxx
Documentation | |
---|---|
Description | Date |
PDF Datasheet | DATE:6/12/23 |
PDF Quick Start Guide | DATE:6/12/23 |
PDF Quick-Reference Placemat | DATE:6/12/23 |
PDF Operations Guide (firmware version 20.5.0) | DATE:6/12/23 |
PDF CyberData Night Ringer Explained | DATE:3/25/20 |
PDF CE Declaration of Conformity | DATE:5/15/17 |
Connecting to Compatible IP-PBX Servers | |
Firmware, Drivers & Utilities | |
ZIP Firmware 20.5.1 | DATE:10/18/22 |
ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network. |
