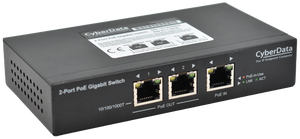

011187 2-Port PoE Gigabit Switch

Part Number: 011187

MSRP: $114.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

http://support.cyberdata.net/register.php


The CyberData 2-Port PoE Gigabit Switch is designed to expand a single PoE network connection into one or two PoE network ports.

Pass through PoE Power

The CyberData 2-Port PoE Gigabit Switch is powered from a single 802.3at or 802.3af network switch and or power source and passes that power through to one or both of the switch ports

In the basic configuration, one of the Gigabit ports can drive a VoIP phone directly with PoE and the other Gigabit port can be connected to a user’s PC.

No external power supplies are required.

Power
  • Fully compliant to IEEE 802.3af/at standard
  • 1 Power Device (PD) input port 802.3af or 802.3at
  • 2 Power Source Equipment (PSE) output ports 802.3af or 802.3at (dependent on PD input)
  •

    Data
  • All ports are 10/100/1000Mbps (10BASE-T,100BASE-TX,1000BASE-T) auto sensing based upon the port's individual connection
  • Each port has auto MDI-X
  • 802.11q VLAN tagging
  • Automatic address learning, address aging and address migration
  • Supports 9216-byte jumbo frame length
  •

    Notification
  • Link/Status and connection speed LEDs
  • Ethernet I/F 10/100/1000 Mbps, Auto MDI-X, RJ45
    Power Distribution
    Input PD input up to 30W:
  • 802.3af @ 15W
  • 802.3at @ 25W
  • Generic PoE Injector up to 30W
  • Internal Circuit Use 2W
    Output* Power available to share between two PSE outputs:
  • 13W with 802.3af input
  • 23W with 802.3at input
  • 28W with generic 30W PoE injector input
  • Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
    Humidity: 5-95%, non-condensing
    Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
    Storage Altitude Up to 15,000 ft. (4573 m)
    Dimensions** Length: 5.31 inches [134.8 mm]
    Width: 3.03 inches [76.9 mm]
    Height: 1.06 inches [26.9 mm]
    Weight
    Boxed Weight
    0.56 lbs. [0.25 kg]
    1.0 lbs. [.54 kg]
    Compliance CE: EMC Directive - Class A EN 55032, EN 55035 & EN 61000, LV Safety Directive- EN 62368-1; RoHS Compliant; FCC Part 15 Class A; IEEE 802.3 Compliant
    Warranty 2 years limited
    Part Number 011187

    *Either one or both of the PSE outputs can provide PoE power as long as the overall PSE output wattage is 2W less than the PD input.

    **Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

    Network Connection

    The Standard RJ-45 Introduction


    The Standard Cable, RJ-45 Pin Assignment




    Documentation
    Description Date
    PDF Datasheet DATE:5/14/21
    PDF Quick-Reference Placemat DATE:8/26/21

    Description

    The CyberData 2-Port PoE Gigabit Switch is designed to expand a single PoE network connection into one or two PoE network ports.

    Pass through PoE Power

    The CyberData 2-Port PoE Gigabit Switch is powered from a single 802.3at or 802.3af network switch and or power source and passes that power through to one or both of the switch ports

    In the basic configuration, one of the Gigabit ports can drive a VoIP phone directly with PoE and the other Gigabit port can be connected to a user’s PC.

    No external power supplies are required.

    Features

    Power
  • Fully compliant to IEEE 802.3af/at standard
  • 1 Power Device (PD) input port 802.3af or 802.3at
  • 2 Power Source Equipment (PSE) output ports 802.3af or 802.3at (dependent on PD input)
  •

    Data
  • All ports are 10/100/1000Mbps (10BASE-T,100BASE-TX,1000BASE-T) auto sensing based upon the port's individual connection
  • Each port has auto MDI-X
  • 802.11q VLAN tagging
  • Automatic address learning, address aging and address migration
  • Supports 9216-byte jumbo frame length
  •

    Notification
  • Link/Status and connection speed LEDs
  • Specs

    Ethernet I/F 10/100/1000 Mbps, Auto MDI-X, RJ45
    Power Distribution
    Input PD input up to 30W:
  • 802.3af @ 15W
  • 802.3at @ 25W
  • Generic PoE Injector up to 30W
  • Internal Circuit Use 2W
    Output* Power available to share between two PSE outputs:
  • 13W with 802.3af input
  • 23W with 802.3at input
  • 28W with generic 30W PoE injector input
  • Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
    Humidity: 5-95%, non-condensing
    Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
    Storage Altitude Up to 15,000 ft. (4573 m)
    Dimensions** Length: 5.31 inches [134.8 mm]
    Width: 3.03 inches [76.9 mm]
    Height: 1.06 inches [26.9 mm]
    Weight
    Boxed Weight
    0.56 lbs. [0.25 kg]
    1.0 lbs. [.54 kg]
    Compliance CE: EMC Directive - Class A EN 55032, EN 55035 & EN 61000, LV Safety Directive- EN 62368-1; RoHS Compliant; FCC Part 15 Class A; IEEE 802.3 Compliant
    Warranty 2 years limited
    Part Number 011187

    *Either one or both of the PSE outputs can provide PoE power as long as the overall PSE output wattage is 2W less than the PD input.

    **Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

    Installation

    Network Connection

    The Standard RJ-45 Introduction


    The Standard Cable, RJ-45 Pin Assignment




    Downloads

    Documentation
    Description Date
    PDF Datasheet DATE:5/14/21
    PDF Quick-Reference Placemat DATE:8/26/21
