011377 InformaCast® Enabled RGB (Multi-Color) Strobe
Part Number: 011377
MSRP: $678.00
- Description
- Features
- Specs
- FAQs
- Installation
- Downloads

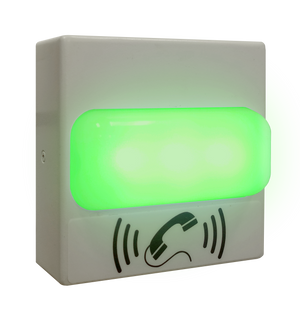

The wall-mounted InformaCast Enabled RGB (Multi-Color) Strobe operates as a visual alerting device.
In InformaCast mode, when receiving an audio page, the Strobe will be activated, displaying the specific color, brightness and blink rate configured by the user. The Strobe supports 10 InformaCast priority levels*.
In the SIP mode, the device can be set up as part of a ring group or call group with the Strobe engaged as notification of incoming calls or pages. You can have the Strobe respond to message waiting signals by blinking. When the message has been heard, the Strobe stops blinking.
The InformaCast Enabled Strobe may also be activated by being part of a multicast group. The Strobe can be configured with up to 10 multicast addresses and is activated when a stream is sent to its address. Users may also use CyberData's HTTP command set to directly access the Strobe's functions.
*InformaCast v9.0.1 or higher is required to take advantage of this feature.
- Compatible with Singlewire InformaCast v12.1, including support for downloading SIP credentials from InformaCast
- Compatible with Cisco Call Manager
- Meets ADA requirements for telephony signaling and notification

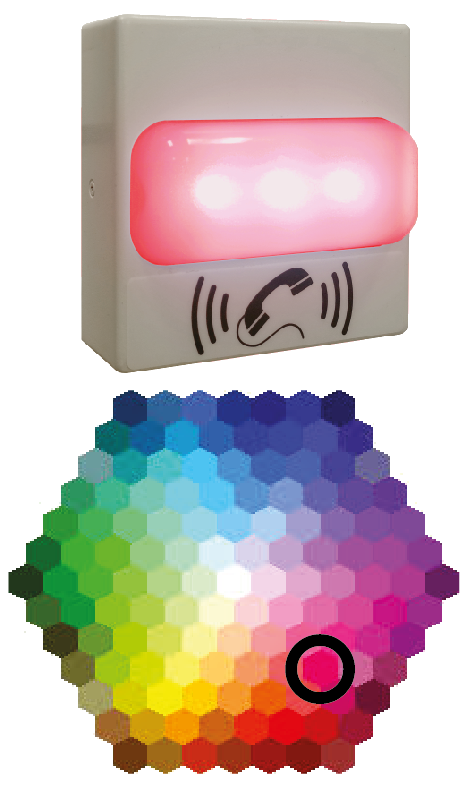

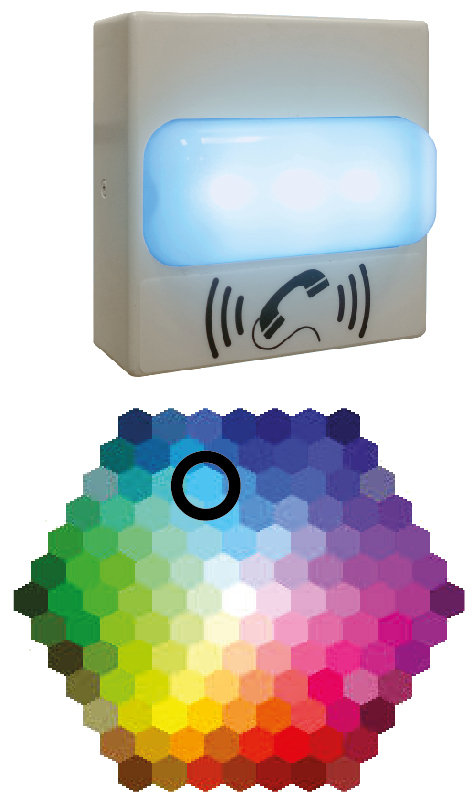

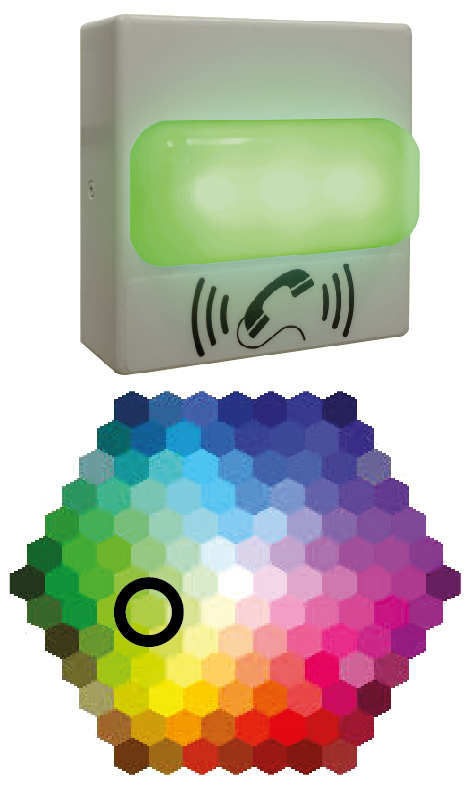

- Multiple colors, blink rate and brightness can be selected for each of the different activation methods
- SIP and multicast activation
- Cisco SRST support
- Event-controlled relay
- Tamper sensor
- TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
- Web-based setup
Indoor Use Areas Include:
- Sales and Support mailbox indication
- Classrooms, offices or courtrooms
- Banks and financial institutions
- Court Rooms
- Manufacturing Warehouses
Ethernet I/F | 10/100 Mbps |
Protocol | SIP RFC 3261 Compatible |
Notification Software | InformaCast v4.0 and above |
Power Input | PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included) |
Flash Rate | 5 user-defined scenes |
LED MTBF | 100,000 Hours |
On-Board Relay | 1A at 30 VDC |
Network Security | TLS/SSL 1.2 |
Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
Storage Altitude | Up to 15,000 ft. (4573 m) |
Dimensions* |
Length: 4.5 inches [115 mm] Width: 2.1 inches [55 mm] Height: 4.5 inches [115 mm] |
Weight Boxed Weight |
1.0 lbs. [0.45 kg] 2.0 lbs. [0.90 kg] |
Compliance | CE; EMC Directive Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
Warranty | 2 years limited |
Part Number | 011377 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
I have a Cisco 6513 switch. When I plug in a CyberData VoIP device, the device constantly reboots and will not register to the SIP server.
Please adjust the switch power selection to Power inline static, as opposed to Power inline dynamic. This will allow the device to continuously receive 15.4W of power.
I need to install a CyberData Strobe outdoors. Is there a dome enclosure that can be used with your strobes and if so, what is the part#?
We recommend the dome enclosure made by Safety Technology International <https://www.sti-usa.com> PN: STI-1229-HAZ
I have a Cisco Catalyst series switch. How do I set the unit so that it can use PoE (under 15.4w) instead of an external power source?
There are known PoE limitations with third party devices on the Cisco Catalyst series switches. This includes the 2500, 3500, and 6500 series switches. It's important to keep in mind that CyberData devices are considered third party devices and require switch port setting adjustments. Be sure to turn power policing off if it has been enabled on your switch. Power policing is disabled by default. Also, configure your port for no shutdown. Use the following command to configure inline power: power inline static max 15400.
What IP phones do you recommend for setting up a Peer to Peer with this device?
Typical Installation
Mounting
Serial Number begins with 3771xxxxx
Documentation | |
---|---|
Description | Date |
PDF Datasheet | DATE:7/23/19 |
PDF Quick Start Guide | DATE:3/28/17 |
PDF Quick-Reference Placemat | DATE:3/28/17 |
PDF Operations Guide (firmware version 11.7.3) | DATE:12/13/17 |
PDF Operations Guide (firmware version 11.6.0) | DATE:1/11/17 |
PDF Using a CyberData Informacast Enabled RGB Strobe | DATE:9/3/19 |
PDF CE Declaration of Conformity | DATE:5/15/17 |
Firmware, Drivers & Utilities | |
ZIP Firmware 11.8.0, autoprovisioning template, and release notes. Please note that a firmware upgrade could change your configuration. Therefore, please be sure to back up your configuration before upgrading your firmware. | DATE: 6/20/17 |
ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network. |
Serial Number begins with 3772xxxxx
Documentation | |
---|---|
Description | Date |
PDF Datasheet | DATE:7/23/19 |
PDF Quick Start Guide | DATE:3/15/19 |
PDF Quick-Reference Placemat | DATE:8/16/24 |
PDF Operations Guide (firmware version 21.0.0) | DATE:1/20/23 |
PDF Operations Guide (firmware version 20.0.0) | DATE:3/15/19 |
PDF Using a CyberData Informacast Enabled RGB Strobe | DATE:9/3/19 |
PDF CE Declaration of Conformity | DATE:2/23/17 |
Connecting to Compatible IP-PBX Servers | |
Firmware, Drivers & Utilities | |
ZIP Firmware 21.1.1 | DATE:2/28/23 |
ZIP Firmware 21.0.0 | DATE:1/20/23 |
ZIP Firmware 20.0.0 | DATE:3/13/19 |
ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network. |
Description
The wall-mounted InformaCast Enabled RGB (Multi-Color) Strobe operates as a visual alerting device.
In InformaCast mode, when receiving an audio page, the Strobe will be activated, displaying the specific color, brightness and blink rate configured by the user. The Strobe supports 10 InformaCast priority levels*.
In the SIP mode, the device can be set up as part of a ring group or call group with the Strobe engaged as notification of incoming calls or pages. You can have the Strobe respond to message waiting signals by blinking. When the message has been heard, the Strobe stops blinking.
The InformaCast Enabled Strobe may also be activated by being part of a multicast group. The Strobe can be configured with up to 10 multicast addresses and is activated when a stream is sent to its address. Users may also use CyberData's HTTP command set to directly access the Strobe's functions.
*InformaCast v9.0.1 or higher is required to take advantage of this feature.
Features
- Compatible with Singlewire InformaCast v12.1, including support for downloading SIP credentials from InformaCast
- Compatible with Cisco Call Manager
- Meets ADA requirements for telephony signaling and notification
- Multiple colors, blink rate and brightness can be selected for each of the different activation methods
- SIP and multicast activation
- Cisco SRST support
- Event-controlled relay
- Tamper sensor
- TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
- Web-based setup
Indoor Use Areas Include:
- Sales and Support mailbox indication
- Classrooms, offices or courtrooms
- Banks and financial institutions
- Court Rooms
- Manufacturing Warehouses
Specs
Ethernet I/F | 10/100 Mbps |
Protocol | SIP RFC 3261 Compatible |
Notification Software | InformaCast v4.0 and above |
Power Input | PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included) |
Flash Rate | 5 user-defined scenes |
LED MTBF | 100,000 Hours |
On-Board Relay | 1A at 30 VDC |
Network Security | TLS/SSL 1.2 |
Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
Storage Altitude | Up to 15,000 ft. (4573 m) |
Dimensions* |
Length: 4.5 inches [115 mm] Width: 2.1 inches [55 mm] Height: 4.5 inches [115 mm] |
Weight Boxed Weight |
1.0 lbs. [0.45 kg] 2.0 lbs. [0.90 kg] |
Compliance | CE; EMC Directive Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
Warranty | 2 years limited |
Part Number | 011377 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
FAQs
I have a Cisco 6513 switch. When I plug in a CyberData VoIP device, the device constantly reboots and will not register to the SIP server.
Please adjust the switch power selection to Power inline static, as opposed to Power inline dynamic. This will allow the device to continuously receive 15.4W of power.
I need to install a CyberData Strobe outdoors. Is there a dome enclosure that can be used with your strobes and if so, what is the part#?
We recommend the dome enclosure made by Safety Technology International <https://www.sti-usa.com> PN: STI-1229-HAZ
I have a Cisco Catalyst series switch. How do I set the unit so that it can use PoE (under 15.4w) instead of an external power source?
There are known PoE limitations with third party devices on the Cisco Catalyst series switches. This includes the 2500, 3500, and 6500 series switches. It's important to keep in mind that CyberData devices are considered third party devices and require switch port setting adjustments. Be sure to turn power policing off if it has been enabled on your switch. Power policing is disabled by default. Also, configure your port for no shutdown. Use the following command to configure inline power: power inline static max 15400.
What IP phones do you recommend for setting up a Peer to Peer with this device?
