**NEW RELEASE** 011490 Outdoor Auxiliary RGB (Multi-Color) Strobe Kit
**NEW RELEASE** 011490 Outdoor Auxiliary RGB (Multi-Color) Strobe Kit
**NEW RELEASE** 011490 Outdoor Auxiliary RGB (Multi-Color) Strobe Kit

**NEW RELEASE** 011490 Outdoor Auxiliary RGB (Multi-Color) Strobe Kit

Part Number: 011490

MSRP: $271.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

http://support.cyberdata.net/register.php

CyberData’s Try & Buy program allows you to order QTY (1) of any SIP device and try it for 30 days to determine if it will meet your needs. When “Try and Buy" is selected, we charge on shipment and we will apply a credit IF the product is returned through our RMA process within 30 days, in good condition in its original packaging.

Once returned and upon inspection, CyberData will apply the credit to your credit card, less any shipping and handling charges that CyberData incurs. No returns are accepted after 30 days under our Try & Buy program.

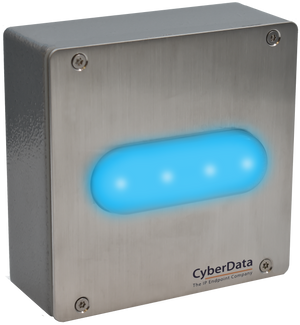

The Outdoor Auxiliary RGB (Multi-Color) Strobe Kit is an IP66 rated cost-effective, user-installable option for the latest line of CyberData VoIP products. The Strobe Kit comes with a 3 meter (9.8 ft) cable that enables the user to connect to a supported CyberData IP endpoint. Power and signaling for the Strobe comes from the attached CyberData endpoint.

Setup of the Strobe’s blink rates and brightness are through the web interface of the attached CyberData IP endpoint.

  • Meets ADA requirements for telephony signaling and notification
  • Different Strobe colors, blink rate and brightness can be tied to multiple activation scenes
  • Activates from a CyberData IP endpoint
  • Mailbox "message waiting" indication
  • Multicast activation
  • Web-based setup
  • Compatible with CyberData devices operating in a Singlewire InformaCast environment

Use Areas Include:

  • Shipping and receiving areas
  • Parking garages and parking lots
  • Playgrounds
  • Places of Refuge
  • Anyplace needing an IP rated outdoor visual alert
Power Input Supplied by the supported CyberData VoIP endpoint
Flash rate 5 user-defined scenes
LED MTBF 100,000 Hours
IP Rating IP66
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity: 5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Dimensions* 5.1 inches [129.5 mm] Length
2.9 inches [73.66 mm] Width
5.1 inches [129.5 mm] Height
Weight
Boxed Weight

2.0 lbs. [0.90 kg]
3.0 lbs. [1.35 kg]

Compliance CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 Years Limited
Part Number 011490

*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.



I need to install a CyberData Strobe outdoors. Is there a dome enclosure that can be used with your strobes and if so, what is the part#?

We recommend the dome enclosure made by Safety Technology International <https://www.sti-usa.com> PN: STI-1229-HAZ




Typical Installation

Wall Mounting (Outdoor Intercom or Outdoor Call Button)

Loudspeaker Amplifier Connections

Intercom Connections
Documentation
Description Date
PDF Datasheet DATE:4/24/19
PDF Quick-Reference Placemat DATE:4/24/19
PDF Operations Guide DATE:4/24/19

Description

The Outdoor Auxiliary RGB (Multi-Color) Strobe Kit is an IP66 rated cost-effective, user-installable option for the latest line of CyberData VoIP products. The Strobe Kit comes with a 3 meter (9.8 ft) cable that enables the user to connect to a supported CyberData IP endpoint. Power and signaling for the Strobe comes from the attached CyberData endpoint.

Setup of the Strobe’s blink rates and brightness are through the web interface of the attached CyberData IP endpoint.

Features

  • Meets ADA requirements for telephony signaling and notification
  • Different Strobe colors, blink rate and brightness can be tied to multiple activation scenes
  • Activates from a CyberData IP endpoint
  • Mailbox "message waiting" indication
  • Multicast activation
  • Web-based setup
  • Compatible with CyberData devices operating in a Singlewire InformaCast environment

Use Areas Include:

  • Shipping and receiving areas
  • Parking garages and parking lots
  • Playgrounds
  • Places of Refuge
  • Anyplace needing an IP rated outdoor visual alert

Specs

Power Input Supplied by the supported CyberData VoIP endpoint
Flash rate 5 user-defined scenes
LED MTBF 100,000 Hours
IP Rating IP66
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity: 5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Dimensions* 5.1 inches [129.5 mm] Length
2.9 inches [73.66 mm] Width
5.1 inches [129.5 mm] Height
Weight
Boxed Weight

2.0 lbs. [0.90 kg]
3.0 lbs. [1.35 kg]

Compliance CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 Years Limited
Part Number 011490

*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

FAQs



I need to install a CyberData Strobe outdoors. Is there a dome enclosure that can be used with your strobes and if so, what is the part#?

We recommend the dome enclosure made by Safety Technology International <https://www.sti-usa.com> PN: STI-1229-HAZ



Installation


Typical Installation

Wall Mounting (Outdoor Intercom or Outdoor Call Button)

Loudspeaker Amplifier Connections

Intercom Connections

Downloads

Documentation
Description Date
PDF Datasheet DATE:4/24/19
PDF Quick-Reference Placemat DATE:4/24/19
PDF Operations Guide DATE:4/24/19
