011236 2-Port USB Gigabit Switch

Part Number: 011236

MSRP: $86.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

https://support.cyberdata.net/portal/en/newticket

  • Description
  • Features
  • Specs
  • Installation
  • Downloads
The CyberData 2-Port USB Gigabit Switch enables users of a PC to split a single Gigabit Ethernet port into two Gigabit Ethernet ports. The power for the switch is supplied by the PC's USB port.
  • 3-port auto-negotiating (no crossover cable required)
  • 10/100/1000 full duplex
  • Link/Status and connection speed LEDs
  • Low Power
  • VLAN Packet Forwarding
  • RoHS Compliant
Ports 3 x RJ45, 1 x USB-B
Standards IEEE 802.3u
Modes 10Base-T, 100Base-TX, 1000Base-T
Power 350mA at 5V (supplied by a USB or PS/2 port)
LEDs Link, Status, Connection Speed
Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
Boxed Weight 0.3 lbs [.136 kg]
Unit Weight 0.2 lbs [.09 kg]
Dimensions 2.75 in. [68.58 mm] L x 3.78 in. [96 mm] W x 1.1 in. [27.94 mm] H
Warranty 2 Year Limited
Part Number 011236

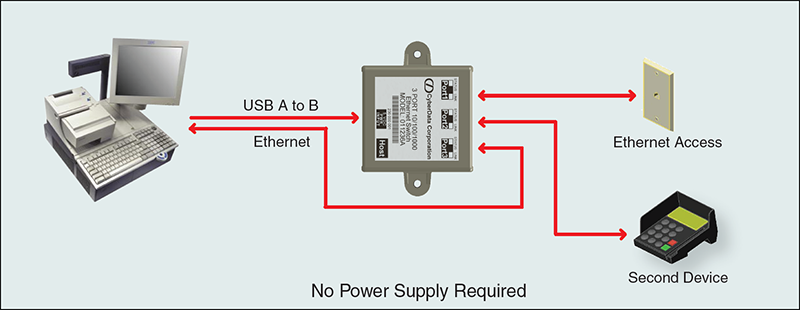

Typical Installation
Documentation
Description Date
PDF Datasheet DATE:3/9/18
PDF Quick-Reference Placemat DATE:2/13/20

Description

The CyberData 2-Port USB Gigabit Switch enables users of a PC to split a single Gigabit Ethernet port into two Gigabit Ethernet ports. The power for the switch is supplied by the PC's USB port.

Features

  • 3-port auto-negotiating (no crossover cable required)
  • 10/100/1000 full duplex
  • Link/Status and connection speed LEDs
  • Low Power
  • VLAN Packet Forwarding
  • RoHS Compliant

Specs

Ports 3 x RJ45, 1 x USB-B
Standards IEEE 802.3u
Modes 10Base-T, 100Base-TX, 1000Base-T
Power 350mA at 5V (supplied by a USB or PS/2 port)
LEDs Link, Status, Connection Speed
Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
Boxed Weight 0.3 lbs [.136 kg]
Unit Weight 0.2 lbs [.09 kg]
Dimensions 2.75 in. [68.58 mm] L x 3.78 in. [96 mm] W x 1.1 in. [27.94 mm] H
Warranty 2 Year Limited
Part Number 011236

Installation


Typical Installation

Downloads

Documentation
Description Date
PDF Datasheet DATE:3/9/18
PDF Quick-Reference Placemat DATE:2/13/20
