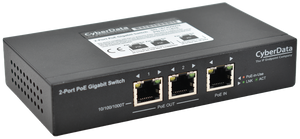

011187 3-Port PoE-Powered Switch

Part Number: 011187

MSRP: $94.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

http://support.cyberdata.net/register.php


The CyberData 3-Port PoE-Powered Switch is designed to expand a single PoE network connection into one or two PoE network ports.

Power is supplied by PoE to the uplink port.

  • 2-Port auto-negotiating (no crossover cable required)
  • 10.100.1000 full duplex (PoE-powered)
  • Link/Status and connection speed LEDs
  • VLAN Packet Forwarding
  • 9216-byte jumbo packet length forwarding at wire speed
  • RoHS compliant
Power Distribution
  • The PD input can be up to 30W.
  • A 802.3af source @ 15W
  • A 802.3at source @ 25W
  • A non-compliant PoE injector up to 30W
  • The internal circuits on the splitter takes 2W to operate.
  • With an 802.3af input, 13W are available to share between the two PSE outputs.
  • With an 802.3at input, 23W are available to share between the two PSE outputs.
  • With a non-compliant 30W PoE injector, 28W are available to share between the two PSE outputs.
  • Either one or both of the PSE outputs can provide PoE power as long as the overall PSE output wattage is 2W less than the PD input.
Uplink In Port PD 802.3af or 802.3at
Downlink Out Port PSE 802.3at (limited PD input)
Dimensions 5.31-inches L x 3.03-inches W x 1.06-inches H
Warranty 2 years
Unit Weight 0.56 lbs.
Standards IEEE
Modes 10BASE-T, 100BASE-TX, and 1000BASE-T
LEDs Link/Status and Connection Speed
Operating temperature 0 to 70 degrees Celsius
Part Number 011187

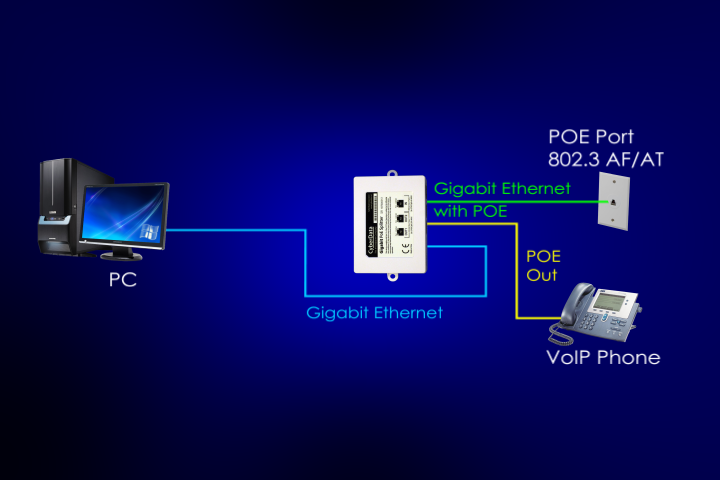

PC Connection

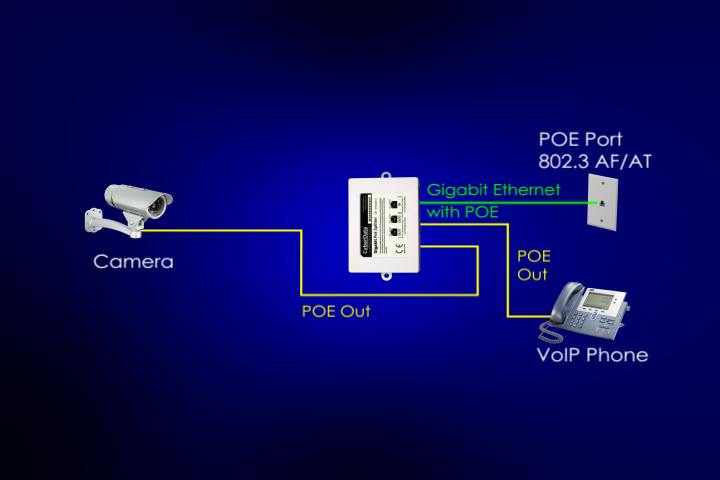

Camera Connection

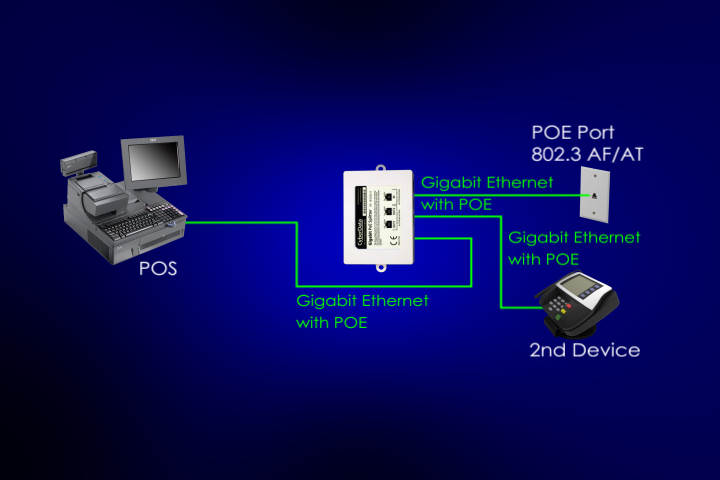

POS Terminal Connection
Documentation
Description Date
PDF Datashee DATE:6/17/14
PDF Quick-Reference Placemat DATE:4/10/13
PDF Operations Guide DATE:4/10/13

Description

The CyberData 3-Port PoE-Powered Switch is designed to expand a single PoE network connection into one or two PoE network ports.

Power is supplied by PoE to the uplink port.

Features

  • 2-Port auto-negotiating (no crossover cable required)
  • 10.100.1000 full duplex (PoE-powered)
  • Link/Status and connection speed LEDs
  • VLAN Packet Forwarding
  • 9216-byte jumbo packet length forwarding at wire speed
  • RoHS compliant
Power Distribution
  • The PD input can be up to 30W.
  • A 802.3af source @ 15W
  • A 802.3at source @ 25W
  • A non-compliant PoE injector up to 30W
  • The internal circuits on the splitter takes 2W to operate.
  • With an 802.3af input, 13W are available to share between the two PSE outputs.
  • With an 802.3at input, 23W are available to share between the two PSE outputs.
  • With a non-compliant 30W PoE injector, 28W are available to share between the two PSE outputs.
  • Either one or both of the PSE outputs can provide PoE power as long as the overall PSE output wattage is 2W less than the PD input.

Specs

Uplink In Port PD 802.3af or 802.3at
Downlink Out Port PSE 802.3at (limited PD input)
Dimensions 5.31-inches L x 3.03-inches W x 1.06-inches H
Warranty 2 years
Unit Weight 0.56 lbs.
Standards IEEE
Modes 10BASE-T, 100BASE-TX, and 1000BASE-T
LEDs Link/Status and Connection Speed
Operating temperature 0 to 70 degrees Celsius
Part Number 011187

Installation


PC Connection

Camera Connection

POS Terminal Connection

Downloads

Documentation
Description Date
PDF Datashee DATE:6/17/14
PDF Quick-Reference Placemat DATE:4/10/13
PDF Operations Guide DATE:4/10/13
