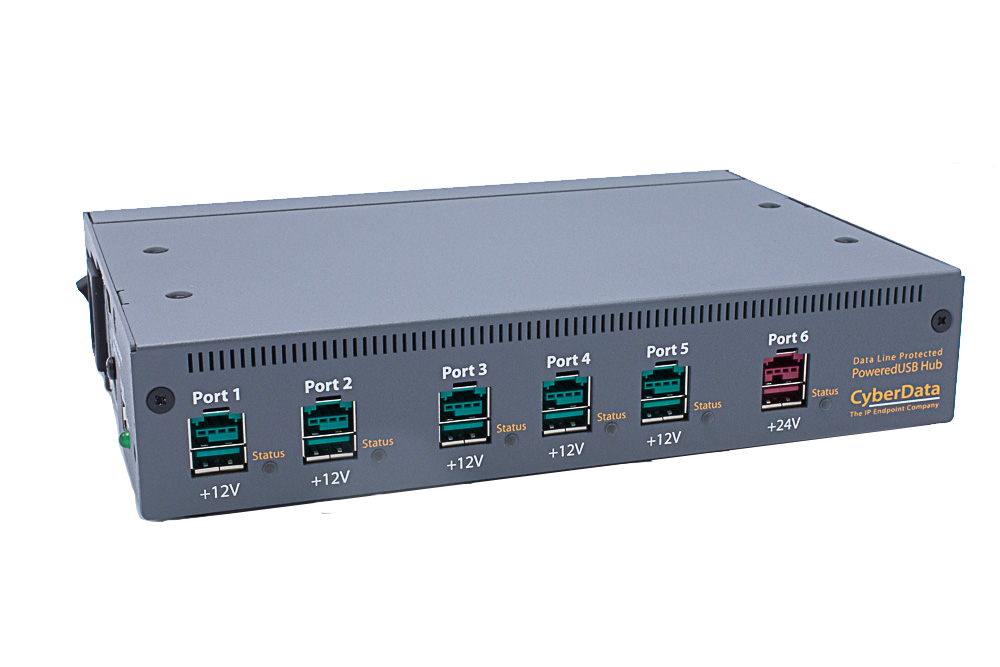

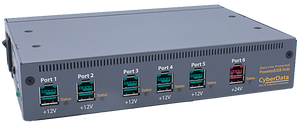

The PoweredUSB hub allows the OEM to add PoweredUSB technology to their existing products. Power to the ports is controlled by an exclusive CyberData peripheral power saving function that let's the PC control the power to the Hub by means of the Windows Sleep or standby function. The CyberData PoweredUSB 6-Port Hub provides a simple and affordable way to add up to six PoweredUSB ports to a standard PC. The hub offers one +24 volt port with ample current available for a multi-station POS printer and five +12 volt ports.
Advanced DataLine Protection
Advanced DataLine Protection
The CyberData PoweredUSB hub is designed with circuitry that protects the communcation and power lines from damage when hot plugging non-PoweredUSB compliant peripherals.
- Adds 6 USB 2.0 PoweredUSB ports
- One +24 volt at 2A for POS printer
- Five +12 volt at 1.5A each
- Advanced DataLine protection
- No external power supply required
- Designed to support Multi-function printer power requirements
- Powered ports respond to suspend mode operation
- External LED to show USB port and power status
| PoweredUSB Ports | 6 |
| Power Output (Standard)* | 1@24V 2A, 5@12V 1.5A each *All ports support standard "A" type +5V USB connection. |
| Port Baud Rates | 480Mbps, 12Mbps, 1.5Mbps |
| External LEDs | Power, Link, Status |
| Boot Up Default | No power to ports |
| AC Voltage Input | 90VAC to 260VAC, 50/60Hz |
| Dimensions | 9.0 inches [229 mm] Length 6.1 inches [156 mm] Width 1.9 inches [49 mm] Height |
| Weight | 5.5 pounds [2.5 kg] |
| Compliance | CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
| Warranty | 2 years limited |
| Part Number | 010630 |
Typical Installation
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:8/15/18 |
| PDF Operations Guide | DATE:8/15/18 |
