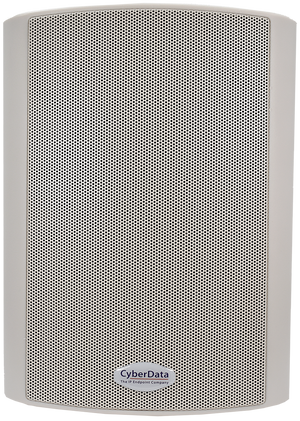

**NEW RELEASE** 011589 Analog Wall Mount Speaker 25V/70V/8 Ohm

Part Number: 011589

MSRP: $68.00

CyberData’s Try & Buy program allows you to order QTY (1) of any SIP device and try it for 30 days to determine if it will meet your needs. When “Try and Buy" is selected, we charge on shipment and we will apply a credit IF the product is returned through our RMA process within 30 days, in good condition in its original packaging.

Once returned and upon inspection, CyberData will apply the credit to your credit card, less any shipping and handling charges that CyberData incurs. No returns are accepted after 30 days under our Try & Buy program.

  • Description
  • Features
  • Specs
  • Installation
  • Downloads

When paired with the new CyberData SIP Paging 25V/70V Amplifier, the Analog Wall Mount 25V/70V/8 Ohm Speakers offer a cost-effective solution that can greatly extend the sound coverage area.

The Speaker offers the option of constant voltage at either 25 or 70 volts as well as a traditional 8 Ohm setting. Each Speaker is configured with 5 power tap settings.

Easy to install, multiple speakers can tee off a single home run cable to the SIP Paging 25V/70V Amplifier.

  • Supports 25V, 70V or traditional 8 Ohm power input
  • Multiple power tap settings for desired dB output
  • High efficiency speaker driver
  • Designed for good speech intelligibility
  • Suitable for background music


  • High efficiency speaker driver
  • Easy installation
    • Modes 8 Ohm, 25V, 70V
    Direct Impedance 8 Ohms
    Power Handling 20 watts continuous duty
    Power Input 25V, 70V or 8 Ohm

    Audio Output:

    8 Ohm

    Constant Voltage

    Power Taps

    25V

    70V

    802.3at: 117.9 (+/- 0.2) dBC @ 1M and 1 kHz*
    802.3af: 115.1 (+/- 0.2) dBC @ 1M and 1 kHz*

    1.25W  |  3.75W  |  10W  |  30W

    85.4  |  90  |  93.6  |  97.8

    85.9  |  90.5  |  94.4  |  98.8
    *Note: Recorded output levels when tested with one speaker (011590) using a CyberData Paging Amplifier (011324)
    Frequency Response 60 to 20000 Hz
    IP Rating IP64
    Storage Temperature
    Storage Altitude    		 -40 C to 70 C (-40 F to 158 F)
    Up to 15,000 ft. (4573 m)
    Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
    Humidity: 5-95%, non-condensing
    Dimensions**
    **Note: Dimensions are measured from the perspective of the product being upright with the front of the product facing you.    		 7.224 inches [183.5 mm] Length
    7.453 inches [189.3 mm] Width (with bracket)
    9.960 inches [253 mm] Height
    Weight 5.2 lbs [2.36 kg]
    Boxed Weight 6.7 lbs [3.04 kg]
    Warranty 2 Years Limited
    Part Number 011589



    Typical Installation

    Typical Installation

    Dimensions

    Dimensions
    Documentation
    Description Date
    PDF Datasheet DATE:10/4/23
    PDF Quick-Reference Placemat DATE:12/5/23



    Description

    When paired with the new CyberData SIP Paging 25V/70V Amplifier, the Analog Wall Mount 25V/70V/8 Ohm Speakers offer a cost-effective solution that can greatly extend the sound coverage area.

    The Speaker offers the option of constant voltage at either 25 or 70 volts as well as a traditional 8 Ohm setting. Each Speaker is configured with 5 power tap settings.

    Easy to install, multiple speakers can tee off a single home run cable to the SIP Paging 25V/70V Amplifier.

    Features

  • Supports 25V, 70V or traditional 8 Ohm power input
  • Multiple power tap settings for desired dB output
  • High efficiency speaker driver
  • Designed for good speech intelligibility
  • Suitable for background music


  • High efficiency speaker driver
  • Easy installation

    • Specs

    Modes 8 Ohm, 25V, 70V
    Direct Impedance 8 Ohms
    Power Handling 20 watts continuous duty
    Power Input 25V, 70V or 8 Ohm

    Audio Output:

    8 Ohm

    Constant Voltage

    Power Taps

    25V

    70V

    802.3at: 117.9 (+/- 0.2) dBC @ 1M and 1 kHz*
    802.3af: 115.1 (+/- 0.2) dBC @ 1M and 1 kHz*

    1.25W  |  3.75W  |  10W  |  30W

    85.4  |  90  |  93.6  |  97.8

    85.9  |  90.5  |  94.4  |  98.8
    *Note: Recorded output levels when tested with one speaker (011590) using a CyberData Paging Amplifier (011324)
    Frequency Response 60 to 20000 Hz
    IP Rating IP64
    Storage Temperature
    Storage Altitude    		 -40 C to 70 C (-40 F to 158 F)
    Up to 15,000 ft. (4573 m)
    Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
    Humidity: 5-95%, non-condensing
    Dimensions**
    **Note: Dimensions are measured from the perspective of the product being upright with the front of the product facing you.    		 7.224 inches [183.5 mm] Length
    7.453 inches [189.3 mm] Width (with bracket)
    9.960 inches [253 mm] Height
    Weight 5.2 lbs [2.36 kg]
    Boxed Weight 6.7 lbs [3.04 kg]
    Warranty 2 Years Limited
    Part Number 011589



    Installation

    Typical Installation

    Typical Installation

    Dimensions

    Dimensions

    Downloads

    Documentation
    Description Date
    PDF Datasheet DATE:10/4/23
    PDF Quick-Reference Placemat DATE:12/5/23
