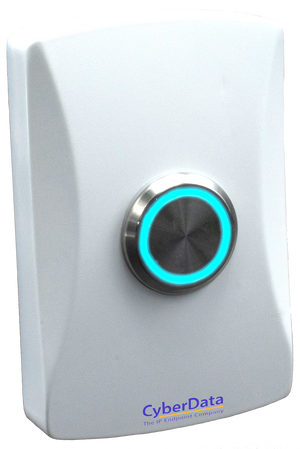

011508 Remote Call Button
Part Number: 011508
MSRP: $99.00
- Description
- Features
- Specs
- Installation
- Downloads
The CyberData Remote Call Button is an optional accessory that, when connected to a CyberData Talk-Back Speaker, allows users to make a call to a predefined phone number.
Additionally, when the Talk-Back Speaker is called from a remote phone and Auto-Answer is not enabled on the Speaker’s Web Interface, the LED on the Call Button will blink. A press of the Call Button will answer the incoming call.
If installed in close proximity to the Speaker, the Remote Call Button can also be configured for Push to Talk on the Speaker side.
The Speaker’s Web interface allows user programmable scenarios of the Button’s LED light to show call activity.
- Operates in SIP and InformaCast Enabled environments
- Can initiate a call from or receive a call to the Talk-Back Speaker
- Enables Push to Talk half duplex audio from the Speaker side for loud environments
- User Programmable LED Light to show call activity
- Easy mounting enclosure
| Mounting | Standard single gang or flush mount |
| LED Light Color | Blue |
| Operating Range |
Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Dimensions* |
Length: 2.95 inches [75 mm] Width: 1.01 inches [25.7 mm] Height: 4.53 inches [115 mm] |
| Weight | 0.25 lbs. [0.11 kg] |
| Boxed Weight | 0.45 lbs. [0.20 kg] |
| Compliance | RoHS |
| Warranty | 2 Years Limited |
| Part Number | 011508 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
SIP Talk-Back Speaker with Remote Call Button
InformaCast Enabled Talk-Back Speaker with Remote Call Button
Dimensions
Connections
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:10/22/19 |
| PDF Quick-Reference Placemat | DATE:8/16/23 |
Description
The CyberData Remote Call Button is an optional accessory that, when connected to a CyberData Talk-Back Speaker, allows users to make a call to a predefined phone number.
Additionally, when the Talk-Back Speaker is called from a remote phone and Auto-Answer is not enabled on the Speaker’s Web Interface, the LED on the Call Button will blink. A press of the Call Button will answer the incoming call.
If installed in close proximity to the Speaker, the Remote Call Button can also be configured for Push to Talk on the Speaker side.
The Speaker’s Web interface allows user programmable scenarios of the Button’s LED light to show call activity.
Features
- Operates in SIP and InformaCast Enabled environments
- Can initiate a call from or receive a call to the Talk-Back Speaker
- Enables Push to Talk half duplex audio from the Speaker side for loud environments
- User Programmable LED Light to show call activity
- Easy mounting enclosure
Specs
| Mounting | Standard single gang or flush mount |
| LED Light Color | Blue |
| Operating Range |
Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Dimensions* |
Length: 2.95 inches [75 mm] Width: 1.01 inches [25.7 mm] Height: 4.53 inches [115 mm] |
| Weight | 0.25 lbs. [0.11 kg] |
| Boxed Weight | 0.45 lbs. [0.20 kg] |
| Compliance | RoHS |
| Warranty | 2 Years Limited |
| Part Number | 011508 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
Installation
SIP Talk-Back Speaker with Remote Call Button
InformaCast Enabled Talk-Back Speaker with Remote Call Button
Dimensions

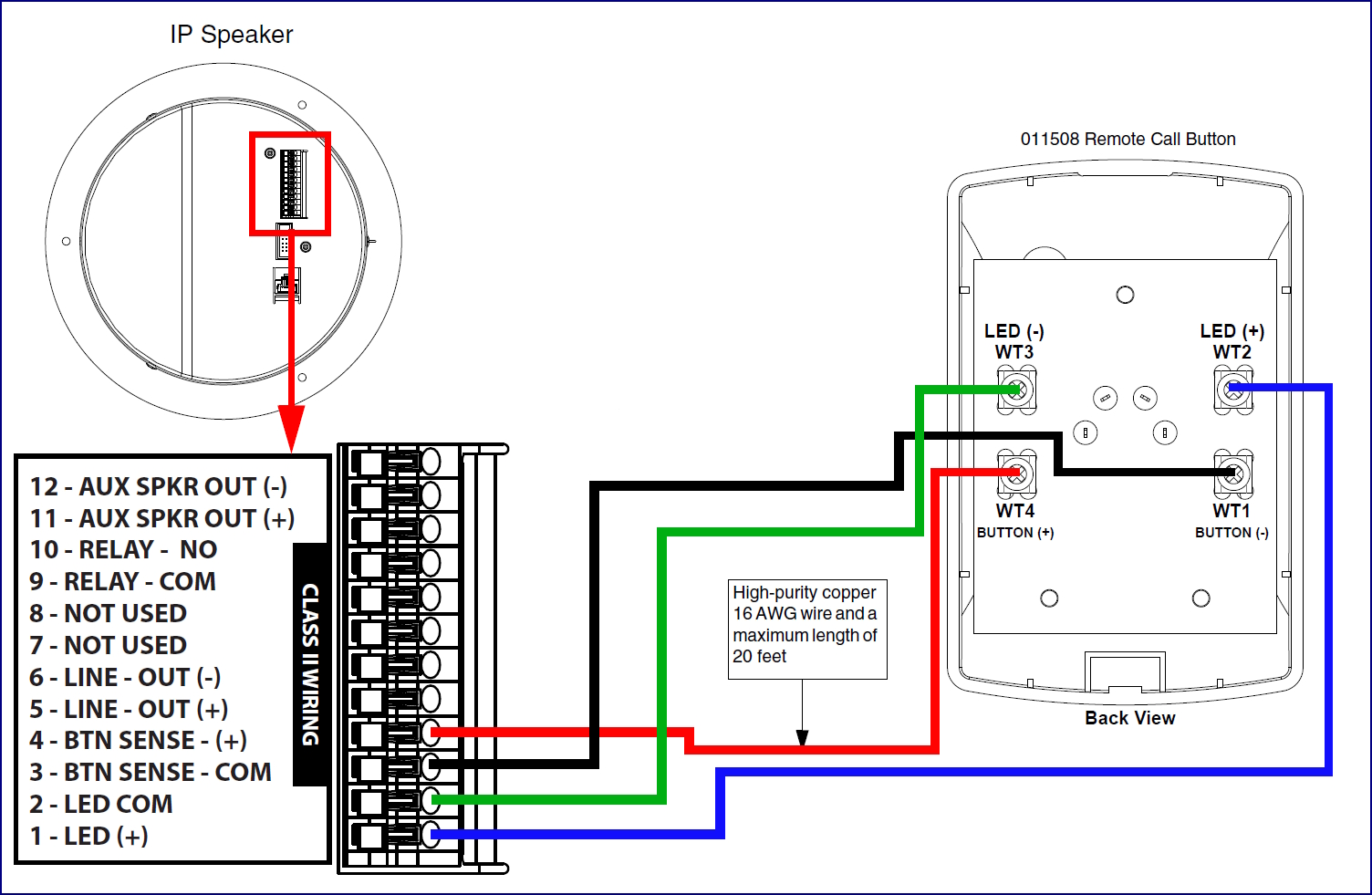

Connections
Downloads
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:10/22/19 |
| PDF Quick-Reference Placemat | DATE:8/16/23 |
