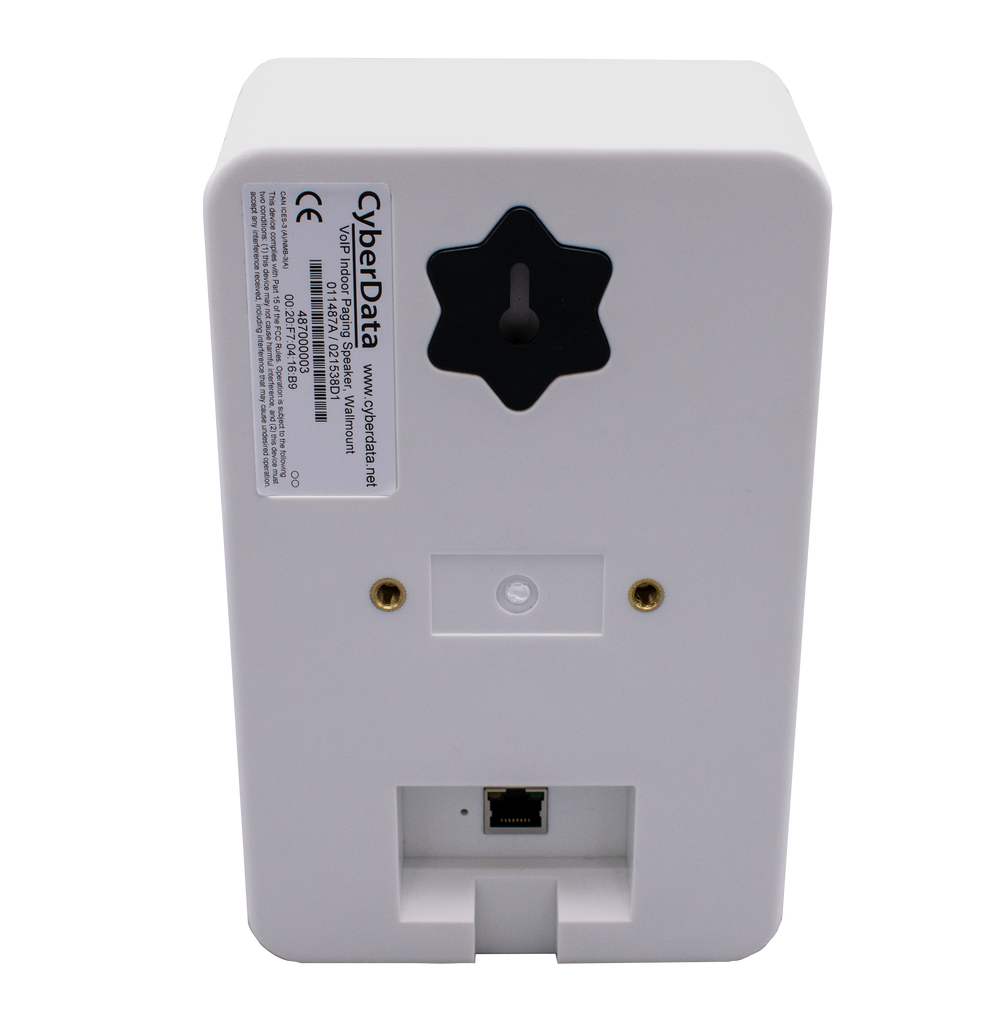

Rear of Speaker
Mounting Hardware (included) with Speaker

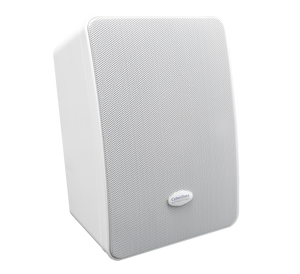

011487 Multicast Wall Mount Speaker

Part Number: 011487

MSRP: $255.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

http://support.cyberdata.net/register.php

Need help configuring your devices?

The CyberData Multicast Wall Mount Speaker is an economical Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address product. It easily connects to your PoE network with a single Ethernet cable connection. The speaker is capable of playing messages from any multicast source like the CyberData SIP Paging Server with Bell Scheduler (PN#011146). The device’s streamlined case and included mounting hardware offers an easy installation in almost any environment.

This product is not SIP-enabled.

  • Receives multicast messages
  • Supports audio prioritization for 10 multicast paging groups
  • Can receive pages directly from Poly phones as well as other devices that can send standard multicast
  • Supports delayed pages with buffered multicast
  • Network-adjustable speaker volume
  • High efficiency speaker driver
  • Small footprint
  • TLS security for autoprovisioning and web-based configuration
  • 802.11q VLAN tagging
  • Configurable event generation for device health and status monitoring
  • User upgradeable firmware via web interface or autoprovisioning
Ethernet I/F 10/100 Mbps
Protocol RTP
Power Input PoE 802.3af
Audio Output 802.3af - SPL 98 dB @ 1 meter
Payload Types G.711 a-law and G.711 μ-law
Network Security TLS/SSL 1.2
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity: 5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Dimensions* 6.42 in. [163 mm] Length
5.39 in. [137 mm] Width
9.18 in. [233 mm] Height
Weight
Boxed Weight
3.8 lbs [1.72 kg]
4.4 lbs [1.96 kg]
Compliance CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive –
EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada;
ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 Years Limited
Part Number 011487

*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

How do I update my firmware?

Go to the Downloads tab, click on the serial number range matching your device and download the firmware compatible with it. To update the firmware, unzip the file and log in to the web GUI for the device you are trying to upgrade. Navigate to the Firmware tab and browse for the firmware file you just downloaded. Select and upload that file. Do not reboot, the device will do it for you. For more information, please check your product’s Operations Guide, also available under the Downloads tab.

PLEASE NOTE: If you are downgrading, please contact CyberData’s Technical Support Department first to ensure the device does not get damaged. We also recommend you export a copy of your current configuration BEFORE updating, should a loss of power or another issue occur that would potentially lose your settings.

Is this device compatible with my service provider or IP-PBX server?

This product does not register onto an IP-PBX server as it is a multicast-exclusive product. In other words this device cannot be given a SIP extension because it only receives multicast.

What is multicast?

IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.

Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.

CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.

For additional support or answers to questions not covered on this page, who should I contact?

Typical Installation

Dimensions

Rafter and/or Joist Mounting

Calculator

Use the Speaker Calculator below to estimate the approximate number of speakers needed for any given space with a maximum ceiling height of 15 ft.

If the ceiling height is higher than 15 ft, please contact sales@cyberdata.net for assistance and guidance.

The speaker calculations are based on equal-sided, unobstructed rooms. For elongated rooms like hallways or for obstructed rooms, additional IP Speakers may be required.

Description

The CyberData Multicast Wall Mount Speaker is an economical Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address product. It easily connects to your PoE network with a single Ethernet cable connection. The speaker is capable of playing messages from any multicast source like the CyberData SIP Paging Server with Bell Scheduler (PN#011146). The device’s streamlined case and included mounting hardware offers an easy installation in almost any environment.

This product is not SIP-enabled.

Features

  • Receives multicast messages
  • Supports audio prioritization for 10 multicast paging groups
  • Can receive pages directly from Poly phones as well as other devices that can send standard multicast
  • Supports delayed pages with buffered multicast
  • Network-adjustable speaker volume
  • High efficiency speaker driver
  • Small footprint
  • TLS security for autoprovisioning and web-based configuration
  • 802.11q VLAN tagging
  • Configurable event generation for device health and status monitoring
  • User upgradeable firmware via web interface or autoprovisioning

Specs

Ethernet I/F 10/100 Mbps
Protocol RTP
Power Input PoE 802.3af
Audio Output 802.3af - SPL 98 dB @ 1 meter
Payload Types G.711 a-law and G.711 μ-law
Network Security TLS/SSL 1.2
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity: 5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Dimensions* 6.42 in. [163 mm] Length
5.39 in. [137 mm] Width
9.18 in. [233 mm] Height
Weight
Boxed Weight
3.8 lbs [1.72 kg]
4.4 lbs [1.96 kg]
Compliance CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive –
EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada;
ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 Years Limited
Part Number 011487

*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

FAQs

How do I update my firmware?

Go to the Downloads tab, click on the serial number range matching your device and download the firmware compatible with it. To update the firmware, unzip the file and log in to the web GUI for the device you are trying to upgrade. Navigate to the Firmware tab and browse for the firmware file you just downloaded. Select and upload that file. Do not reboot, the device will do it for you. For more information, please check your product’s Operations Guide, also available under the Downloads tab.

PLEASE NOTE: If you are downgrading, please contact CyberData’s Technical Support Department first to ensure the device does not get damaged. We also recommend you export a copy of your current configuration BEFORE updating, should a loss of power or another issue occur that would potentially lose your settings.

Is this device compatible with my service provider or IP-PBX server?

This product does not register onto an IP-PBX server as it is a multicast-exclusive product. In other words this device cannot be given a SIP extension because it only receives multicast.

What is multicast?

IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.

Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.

CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.

For additional support or answers to questions not covered on this page, who should I contact?
