011402 Singlewire InformaCast/SIP Ceiling Tile Drop-In Speaker

Part Number: 011402

MSRP: $582.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

http://support.cyberdata.net/register.php

CyberData’s Try & Buy program allows you to order QTY (1) of any SIP device and try it for 30 days to determine if it will meet your needs. When “Try and Buy" is selected, we charge on shipment and we will apply a credit IF the product is returned through our RMA process within 30 days, in good condition in its original packaging.

Once returned and upon inspection, CyberData will apply the credit to your credit card, less any shipping and handling charges that CyberData incurs. No returns are accepted after 30 days under our Try & Buy program.


The Singlewire InformaCast/SIP Ceiling Tile Drop-In Speaker is the newest option for installation of the Singlewire InformaCast Speaker. The "Drop-In" design combines easy installation with a streamlined look.

  • Capable of receiving SingleWire Informacast, SIP and Multicast messages
  • Support for security code to prevent unwanted SIP calls
  • Optional red/green/blue/white strobe kit connection available (coming soon)
  • Autoprovisioning via HTTP, HTTPS, or TFTP
  • HTTPS or HTTP web based configuration. HTTPS is enabled by default.
  • 802.11q VLAN tagging
  • Configurable sense input for use with fault detection or with optional lighted button kit
  • Configurable event generation for device health and status monitoring
  • Support for G.711 u-law, G.711 a-law, and G.722 codecs
  • Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply (not included)
  • Enhanced interoperability for hosted environments
  • SIP (RFC 3261) compatible
  • Night Ringer function
  • Plays audio from Multicast
  • Web-based configuration
  • Paging prioritization and background music
  • User upgradeable firmware via web interface or autoprovisioning
  • External volume control
  • Small footprint
  • High efficiency speaker driver
  • IGMP l SIP endpoint or Multicast group member Network-adjustable speaker volume
  • Can drive one external analog speaker for greater coverage (part #011120/011121 sold separately)
  • Support for 10 multicast paging groups
  • Support for multiple SIP servers for redundancy
  • Support for Cisco SRST resiliency
  • Relay for activating door locks, external amplifiers, etc.
  • Line-level audio output for connecting to an external amplifier
Singlewire InformaCast Features
  • Singlewire Informacast compatibility available.
  • Includes support for Informacast resiliency.
  • Supports both SIP and Singlewire InformaCast
  • InformaCast compliant
  • InformaCast CK compliant
Audio Output 802.3af SPL 109.2 dB @ 1 meter
802.3at SPL 111.9 dB @ 1 meter
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity 5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Ethernet I/F 10/100 Mbps
Protocol InformaCast® and/or SIP RFC 3261 Compatible
Power Input PoE 802.3af/802.3at
Payload Types G.711 a-law, G.711 a-law, and G.722
Dimensions (Unit) Length: 12 in. [304.8 mm], Width: 3.23 in. [82.04 mm], Height: 23.75 in. [603.25 mm]
Dimensions (Boxed) Length: 16.25 in. [412.75 mm], Width 8.125 in. [206.38 mm], Height: 28.25 in. [717.55 mm]
Boxed Weight 8.0 lbs. [3.63 kg]
Compliance CE; EMC Directive- Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 years limited
Part Number Standard Color 011402, RAL 9002 Gray White (replaces 011128)
Questions regarding Singlewire-enabled devices?

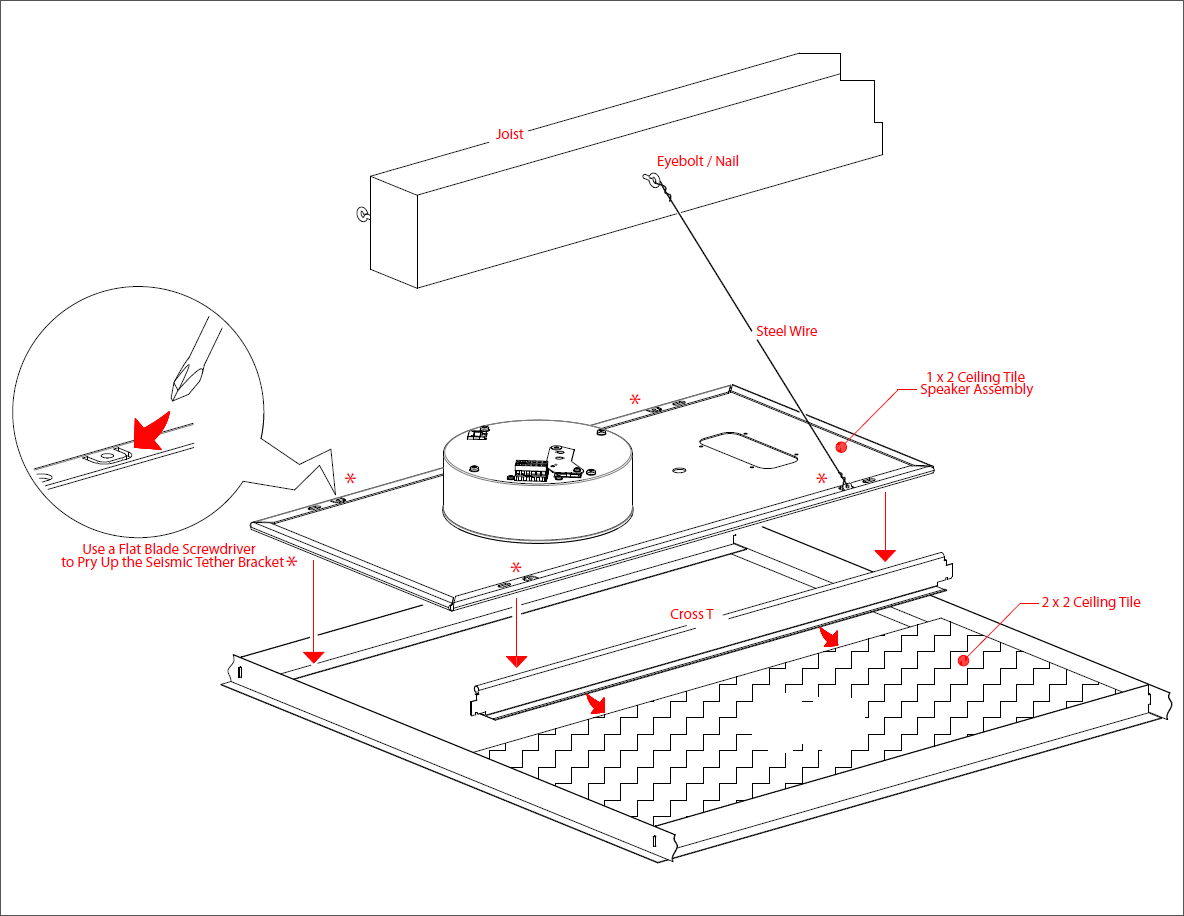

Typical Installation

Calculator

Use the Speaker Calculator below to estimate the approximate number of speakers needed for any given space with a maximum ceiling height of 15 ft.

If the ceiling height is higher than 15 ft, please contact sales@cyberdata.net for assistance and guidance.

The speaker calculations are based on equal-sided, unobstructed rooms. For elongated rooms like hallways or for obstructed rooms, additional IP Speakers may be required.

Description

The Singlewire InformaCast/SIP Ceiling Tile Drop-In Speaker is the newest option for installation of the Singlewire InformaCast Speaker. The "Drop-In" design combines easy installation with a streamlined look.

Features

  • Capable of receiving SingleWire Informacast, SIP and Multicast messages
  • Support for security code to prevent unwanted SIP calls
  • Optional red/green/blue/white strobe kit connection available (coming soon)
  • Autoprovisioning via HTTP, HTTPS, or TFTP
  • HTTPS or HTTP web based configuration. HTTPS is enabled by default.
  • 802.11q VLAN tagging
  • Configurable sense input for use with fault detection or with optional lighted button kit
  • Configurable event generation for device health and status monitoring
  • Support for G.711 u-law, G.711 a-law, and G.722 codecs
  • Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply (not included)
  • Enhanced interoperability for hosted environments
  • SIP (RFC 3261) compatible
  • Night Ringer function
  • Plays audio from Multicast
  • Web-based configuration
  • Paging prioritization and background music
  • User upgradeable firmware via web interface or autoprovisioning
  • External volume control
  • Small footprint
  • High efficiency speaker driver
  • IGMP l SIP endpoint or Multicast group member Network-adjustable speaker volume
  • Can drive one external analog speaker for greater coverage (part #011120/011121 sold separately)
  • Support for 10 multicast paging groups
  • Support for multiple SIP servers for redundancy
  • Support for Cisco SRST resiliency
  • Relay for activating door locks, external amplifiers, etc.
  • Line-level audio output for connecting to an external amplifier
Singlewire InformaCast Features
  • Singlewire Informacast compatibility available.
  • Includes support for Informacast resiliency.
  • Supports both SIP and Singlewire InformaCast
  • InformaCast compliant
  • InformaCast CK compliant

Specs

Audio Output 802.3af SPL 109.2 dB @ 1 meter
802.3at SPL 111.9 dB @ 1 meter
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity 5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Ethernet I/F 10/100 Mbps
Protocol InformaCast® and/or SIP RFC 3261 Compatible
Power Input PoE 802.3af/802.3at
Payload Types G.711 a-law, G.711 a-law, and G.722
Dimensions (Unit) Length: 12 in. [304.8 mm], Width: 3.23 in. [82.04 mm], Height: 23.75 in. [603.25 mm]
Dimensions (Boxed) Length: 16.25 in. [412.75 mm], Width 8.125 in. [206.38 mm], Height: 28.25 in. [717.55 mm]
Boxed Weight 8.0 lbs. [3.63 kg]
Compliance CE; EMC Directive- Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 years limited
Part Number Standard Color 011402, RAL 9002 Gray White (replaces 011128)

FAQs

Questions regarding Singlewire-enabled devices?

Installation


Typical Installation

Downloads

Calculator

Calculator

Use the Speaker Calculator below to estimate the approximate number of speakers needed for any given space with a maximum ceiling height of 15 ft.

If the ceiling height is higher than 15 ft, please contact sales@cyberdata.net for assistance and guidance.

The speaker calculations are based on equal-sided, unobstructed rooms. For elongated rooms like hallways or for obstructed rooms, additional IP Speakers may be required.
