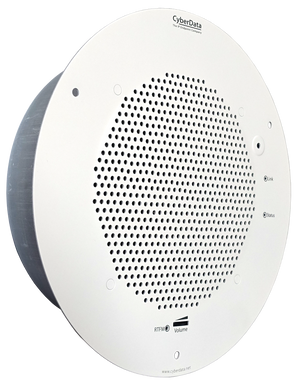

011399/011400 InformaCast Enabled Talk-Back Speaker
Part Number: 011399
MSRP: $470.00
- Description
- Features
- Specs
- FAQs
- Installation
- Downloads
- Calculator
The CyberData InformaCast® Enabled Talk-Back Speaker enables two-way conversations using the Singlewire InformaCast® Talk Back application running on the phone. The Talk-Back Speaker easily connects into local area networks with a single CAT5/6 cable from your PoE switch. Its small footprint allows the speaker to be mounted almost anywhere with multiple mounting options available.
- Capable of receiving Singlewire InformaCast, SIP, and Multicast messages
- Supports Singlewire InformaCast High Quality Audio
- Plays audio from Multicast
- Singlewire speakers now offer dual registration for both SIP and Singlewire
- AudioFull-duplex (SIP) or half-duplex (push to talk)
- Support for security code to prevent unwanted SIP calls
- Optional red/green/blue/white strobe kit connection available
- Autoprovisioning via HTTP, HTTPS, or TFTP
- HTTPS or HTTP web based configuration. HTTPS is enabled by default.
- 802.11q VLAN tagging
- Configurable sense input for use with fault detection or with optional lighted button kit
- Configurable event generation for device health and status monitoring
- Support for G.722 codecs
- Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply (not included)
- Enhanced interoperability for hosted environments
- Plays audio from Multicast
- Web-based configuration
- Paging prioritization
- Web-based firmware upgradeable
- Plenum-rated enclosure
- Autoprovisioning
- High efficiency speaker driver
- DTMF-controlled relay
- Line-out connection
- Network and manual speaker volume control.
- Can drive one external analog speaker for greater coverage
- User-uploadable ring and alert tones
- Receives pages directly from Polycom phones
- Singlewire InformaCast compatibility available.
- Includes support for InformaCast resiliency.
- Supports both SIP and Singlewire InformaCast
- InformaCast compliant
- InformaCast CK compliant
| Audio Output | 802.3af - SPL 109.2 dB @ 1 meter |
| 802.3at - SPL 111.9 dB @ 1 meter | |
| Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) |
| Humidity | 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Ethernet I/F | 10/100 Mbps |
| Protocol | InformaCast® and/or SIP RFC 3261 Compatible |
| Power Input | PoE 802.3af/802.3at |
| Payload Types | G.711 μ-law, G.711 a-law, and G.722 |
| Dimensions | 9 in. [228.6 mm] x 2.4 in. [60.96 mm] |
| Boxed Weight | 4.0 lbs. [1.81 kg] |
| Compliance | CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
| Warranty | 2 years limited |
| Part Number Standard Color | 011399, RAL 9002, Gray White (replaces 011182) |
| Part Number Optional Color | 011400, RAL 9003, Signal White (replaces 011183) |
What is multicast?
IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.
Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.
CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.
Questions regarding Singlewire-enabled devices?
Typical Installation 1
AC Power
LED Strobe
Auxilliary Analog Speaker
Amplifier
Ceiling Mounting
Mounting Bracket
Speaker to Strobe Connections
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:11/1/18 |
| PDF Quick Start Guide | DATE:11/7/18 |
| PDF Quick Reference Placemat | DATE:11/7/18 |
| PDF Operations Guide (firmware version 11.6.9) | DATE:8/7/17 |
| PDF Operations Guide (firmware version 11.6.7) | DATE:12/05/16 |
| PDF Operations Guide (firmware version 11.6.6) | DATE:11/18/16 |
| PDF Operations Guide (firmware version 11.6.2) | DATE:7/11/16 |
| PDF CE Declaration of Conformity | DATE:5/15/17 |
| Connecting to Compatible IP-PBX Servers | |
| Firmware, Drivers & Utilities | |
| ZIP Firmware 11.6.9, autoprovisioning template, and release notes. Please note that a firmware upgrade could change your configuration. Therefore, please be sure to back up your configuration before upgrading your firmware. | DATE: 8/2/17 |
| ZIP The SolarWinds TFTP server is used when autoprovisioning firmware updates or audio files. | |
| ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network. | |
Calculator
Use the Speaker Calculator below to estimate the approximate number of speakers needed for any given space with a maximum ceiling height of 15 ft.
If the ceiling height is higher than 15 ft, please contact sales@cyberdata.net for assistance and guidance.
The speaker calculations are based on equal-sided, unobstructed rooms. For elongated rooms like hallways or for obstructed rooms, additional IP Speakers may be required.
Description
The CyberData InformaCast® Enabled Talk-Back Speaker enables two-way conversations using the Singlewire InformaCast® Talk Back application running on the phone. The Talk-Back Speaker easily connects into local area networks with a single CAT5/6 cable from your PoE switch. Its small footprint allows the speaker to be mounted almost anywhere with multiple mounting options available.
Features
- Capable of receiving Singlewire InformaCast, SIP, and Multicast messages
- Supports Singlewire InformaCast High Quality Audio
- Plays audio from Multicast
- Singlewire speakers now offer dual registration for both SIP and Singlewire
- AudioFull-duplex (SIP) or half-duplex (push to talk)
- Support for security code to prevent unwanted SIP calls
- Optional red/green/blue/white strobe kit connection available
- Autoprovisioning via HTTP, HTTPS, or TFTP
- HTTPS or HTTP web based configuration. HTTPS is enabled by default.
- 802.11q VLAN tagging
- Configurable sense input for use with fault detection or with optional lighted button kit
- Configurable event generation for device health and status monitoring
- Support for G.722 codecs
- Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply (not included)
- Enhanced interoperability for hosted environments
- Plays audio from Multicast
- Web-based configuration
- Paging prioritization
- Web-based firmware upgradeable
- Plenum-rated enclosure
- Autoprovisioning
- High efficiency speaker driver
- DTMF-controlled relay
- Line-out connection
- Network and manual speaker volume control.
- Can drive one external analog speaker for greater coverage
- User-uploadable ring and alert tones
- Receives pages directly from Polycom phones
- Singlewire InformaCast compatibility available.
- Includes support for InformaCast resiliency.
- Supports both SIP and Singlewire InformaCast
- InformaCast compliant
- InformaCast CK compliant
Specs
| Audio Output | 802.3af - SPL 109.2 dB @ 1 meter |
| 802.3at - SPL 111.9 dB @ 1 meter | |
| Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) |
| Humidity | 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Ethernet I/F | 10/100 Mbps |
| Protocol | InformaCast® and/or SIP RFC 3261 Compatible |
| Power Input | PoE 802.3af/802.3at |
| Payload Types | G.711 μ-law, G.711 a-law, and G.722 |
| Dimensions | 9 in. [228.6 mm] x 2.4 in. [60.96 mm] |
| Boxed Weight | 4.0 lbs. [1.81 kg] |
| Compliance | CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
| Warranty | 2 years limited |
| Part Number Standard Color | 011399, RAL 9002, Gray White (replaces 011182) |
| Part Number Optional Color | 011400, RAL 9003, Signal White (replaces 011183) |
FAQs
What is multicast?
IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.
Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.
CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.
Questions regarding Singlewire-enabled devices?
Installation
Typical Installation 1
AC Power
LED Strobe
Auxilliary Analog Speaker
Amplifier
Ceiling Mounting
Mounting Bracket
Speaker to Strobe Connections
Downloads
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:11/1/18 |
| PDF Quick Start Guide | DATE:11/7/18 |
| PDF Quick Reference Placemat | DATE:11/7/18 |
| PDF Operations Guide (firmware version 11.6.9) | DATE:8/7/17 |
| PDF Operations Guide (firmware version 11.6.7) | DATE:12/05/16 |
| PDF Operations Guide (firmware version 11.6.6) | DATE:11/18/16 |
| PDF Operations Guide (firmware version 11.6.2) | DATE:7/11/16 |
| PDF CE Declaration of Conformity | DATE:5/15/17 |
| Connecting to Compatible IP-PBX Servers | |
| Firmware, Drivers & Utilities | |
| ZIP Firmware 11.6.9, autoprovisioning template, and release notes. Please note that a firmware upgrade could change your configuration. Therefore, please be sure to back up your configuration before upgrading your firmware. | DATE: 8/2/17 |
| ZIP The SolarWinds TFTP server is used when autoprovisioning firmware updates or audio files. | |
| ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network. | |
Calculator
Calculator
Use the Speaker Calculator below to estimate the approximate number of speakers needed for any given space with a maximum ceiling height of 15 ft.
If the ceiling height is higher than 15 ft, please contact sales@cyberdata.net for assistance and guidance.
The speaker calculations are based on equal-sided, unobstructed rooms. For elongated rooms like hallways or for obstructed rooms, additional IP Speakers may be required.
