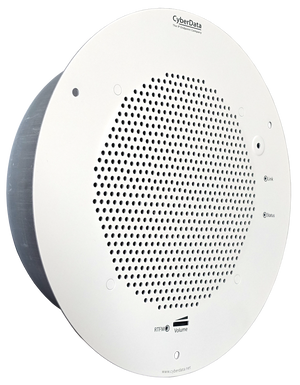

011397/011398 SIP Talk-Back Speaker

Part Number: 011397

MSRP: $445.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

http://support.cyberdata.net/register.php

CyberData’s Try & Buy program allows you to order QTY (1) of any SIP device and try it for 30 days to determine if it will meet your needs. When “Try and Buy" is selected, we charge on shipment and we will apply a credit IF the product is returned through our RMA process within 30 days, in good condition in its original packaging.

Once returned and upon inspection, CyberData will apply the credit to your credit card, less any shipping and handling charges that CyberData incurs. No returns are accepted after 30 days under our Try & Buy program.


CyberData's new SIP Talk-Back Speaker enables two-way conversations in settings such as classrooms, offices, medical facilities and clinics. By use of remote call button (sold separately, part# 011185), calls to a predetermined extension can be initiated from the room with the speaker. During the active calls, the LED light on the switch can be programmed to blink to show call activity. Alternatively, a call can be placed to the speaker to initiate either a page or two-way conversation.

Can receive pages directly from Polycom phones

  • Full-duplex (SIP) or half-duplex (push to talk)
  • Support for security code to prevent unwanted SIP calls
  • Optional red/green/blue/white strobe kit connection available
  • Autoprovisioning via HTTP, HTTPS, or TFTP
  • HTTPS or HTTP web based configuration. HTTPS is enabled by default.
  • 802.11q VLAN tagging
  • Configurable sense input for use with fault detection or with optional lighted button kit
  • Configurable event generation for device health and status monitoring
  • Support for G.722 codecs
  • Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply (not included)
  • Enhanced interoperability for hosted environments
  • Receives pages directly from Polycom phones
  • SIP (RFC 3261) compatible
  • Simultaneous SIP and multicast
  • Web-based configuration
  • Paging prioritization
  • Web-based firmware upgradeable
  • Plenum-rated enclosure
  • Autoprovisioning
  • High efficiency speaker driver
  • DTMF-controlled relay
  • Line-out connection
  • Network and manual speaker volume control Can drive one external analog speaker for greater coverage
  • User-uploadable ring and alert tones
Audio Output 802.3af- SPL 109.2 dB @ 1 meter
802.3at SPL 111.9 dB @ 1 meter
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity 5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Ethernet I/F 10/100 Mbps
Protocol SIP RFC 3261 Compatible
Power Input PoE 802.3af/802.3at
Payload Types G.711 a-law, G.711 a-law, G.722 a-law, G.722 a-law
Dimensions 9 in. [228.6 mm] x 2.4 in. [60.96 mm]
Boxed Weight 4.0 lbs. [1.81 kg]
Compliance CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 Year Limited
Part Number Standard Color 011397, RAL 9002, Gray White
Part Number Optional Color 011398, RAL 9003, Signal White
Are there a set of specs. or standards that define proper spacing for your IP Speakers along a hallway?

In a ceiling mount, you would want about 1 speaker per every 10-15 feet of hallway length. If you used the paging amp you could use 3 paging amps per 100 feet. This assumes average ambient noise and surface attenuation levels.

I am unable to connect with the unit when it is plugged into a Cisco SLM 224P switch.

The cables or switch ports that you are connecting to are set in switch or hub mode instead of endpoint stations. The MDIX setting needs to be changed to MDI since our VoIP products are end stations. From the Cisco SLM 224P User Guide:

Change to MDI: MDI/MDIX displays the Media Dependent Interface (MDI) / Media Dependent Interface with Crossover (MDIX) status on the port. Hubs and switches are deliberately wired the opposite of the way end stations are wired, so that when a hub or switch is connected to an end station, a straight through Ethernet cable can be used, and the pairs are matched up properly. When two hubs or switches are connected to each other, or two end stations are connected to each other, a crossover cable is used to ensure that the correct pairs are connected. The possible field values are: MDIX

Use for hubs and switches. MDI Use for end stations.
I have a Cisco 6513 switch. When I plug in a CyberData VoIP device, the device constantly reboots and will not register to the SIP server.

Please adjust the switch power selection to Power inline static, as opposed to Power inline dynamic. This will allow the device to continuously receive 15.4W of power.

I have a Cisco Catalyst series switch. How do I set the unit so that it can use PoE (under 15.4w) instead of an external power source?

There are known PoE limitations with third party devices on the Cisco Catalyst series switches. This includes the 2500, 3500, and 6500 series switches. It's important to keep in mind that CyberData devices are considered third party devices and require switch port setting adjustments. Be sure to turn power policing off if it has been enabled on your switch. Power policing is disabled by default. Also, configure your port for no shutdown. Use the following command to configure inline power: power inline static max 15400.

What IP phones do you recommend for setting up a Peer to Peer with this device?

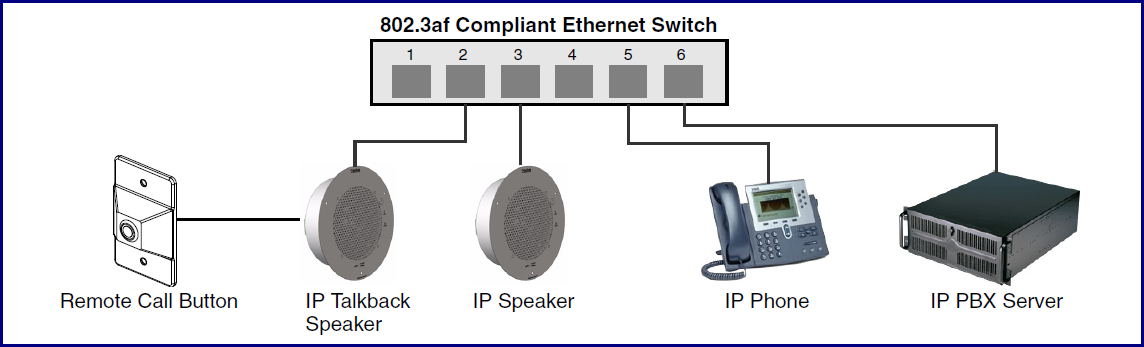

Typical Installation 1

AC Power

LED Strobe

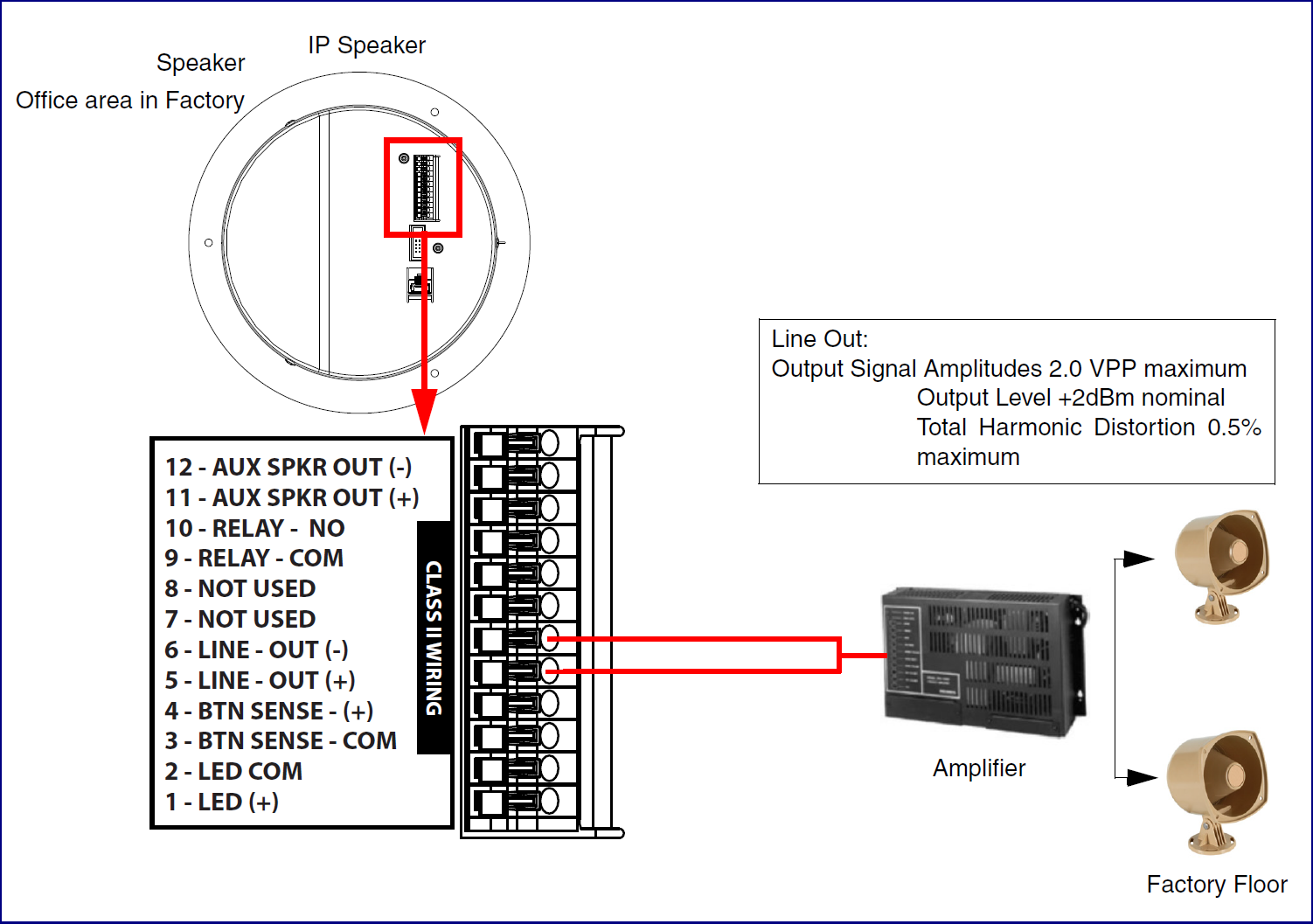

Auxilliary Analog Speaker

Amplifier

Amplifier

Ceiling Mounting

Mounting Bracket

Speaker to Strobe Connections
Documentation
Description Date
PDF Datasheet DATE:9/13/17
PDF Quick Start Guide DATE:7/11/16
PDF Quick Reference Placemat DATE:11/18/16
PDF Operations Guide (firmware version 11.6.9) DATE:9/22/17
PDF Operations Guide (firmware version 11.6.7) DATE:5/17/17
PDF Operations Guide (firmware version 11.6.6) DATE:11/18/16
PDF Operations Guide (firmware version 11.6.2) DATE:7/27/16
PDF CE Declaration of Conformity DATE:5/15/17
Connecting to Compatible IP-PBX Servers
Firmware, Drivers & Utilities
ZIP Firmware 11.6.9 , autoprovisioning template, and release notes. Please note that a firmware upgrade could change your configuration. Therefore, please be sure to back up your configuration before upgrading your firmware. DATE:8/3/17
ZIP Firmware 11.6.7 , autoprovisioning template, and release notes. Please note that a firmware upgrade could change your configuration. Therefore, please be sure to back up your configuration before upgrading your firmware. DATE:12/02/16
ZIP Firmware 11.6.6 , autoprovisioning template, and release notes. Please note that a firmware upgrade could change your configuration. Therefore, please be sure to back up your configuration before upgrading your firmware. DATE:9/14/16
ZIP Firmware 11.6.4 , autoprovisioning template, and release notes. Please note that a firmware upgrade could change your configuration. Therefore, please be sure to back up your configuration before upgrading your firmware. DATE:8/3/16
ZIP Firmware 11.6.2 , autoprovisioning template, and release notes. Please note that a firmware upgrade could change your configuration. Therefore, please be sure to back up your configuration before upgrading your firmware. DATE:7/12/16
ZIP The SolarWinds TFTP server is used when autoprovisioning firmware updates or audio files.
ZIP The Discovery Utility scans the network and reports back any found VoIP devices that are attached to the physical network.

Calculator

Use the Speaker Calculator below to estimate the approximate number of speakers needed for any given space with a maximum ceiling height of 15 ft.
