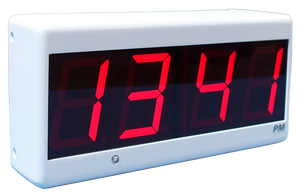

011313 PoE Digital Clock

Part Number: 011313

MSRP: $429.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

http://support.cyberdata.net/register.php

CyberData’s Try & Buy program allows you to order QTY (1) of any SIP device and try it for 30 days to determine if it will meet your needs. When “Try and Buy" is selected, we charge on shipment and we will apply a credit IF the product is returned through our RMA process within 30 days, in good condition in its original packaging.

Once returned and upon inspection, CyberData will apply the credit to your credit card, less any shipping and handling charges that CyberData incurs. No returns are accepted after 30 days under our Try & Buy program.

Need help configuring your devices?

The PoE Digital Clock connects to your PoE network and gets the device's precision time updated from an NTP (Network Time Protocol) server. The device includes an automatic daylight savings time mode and a Windows-based discovery and setup utility. No other software is required.

The CyberData PoE Digital Clock contains CyberData's exclusive PoE pass-through switch which allows other PoE devices to be daisy chained off of the clock.  See the Installation tab for daisy chain options.

CyberData has maintained one of the most comprehensive lists of IP PBX servers certified to work with CyberData VoIP Products.

  • 4 digits that are 2.3-inches tall
  • 5-Watts total power
  • Network configurable, DHCP or static IP
  • Network discoverable, with CyberData discovery and configuration utility
  • 12/24 hour formats
  • Configurable colon, on, off, flashing
  • Configurable display intensity 1-15 or auto intensity - ambient light sense
  • Configurable time zone
  • Configurable daylight saving - automatic adjustment daylight savings or standard time
  • Automatic NTP update, by IP or URL
Ethernet I/F 10/100 Mbps
Protocol SIP RFC 3261 Compatible
Power Input PoE 802.3af compliant or +12 to +24VDC @ 1000mA (500 mA minimum)
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity:5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Dimensions**
8.58 in. [218.0 mm] Length
2.34 in. [59.4 mm] Width
4.33 in. [110.0 mm] Height
Weight
Boxed Weight
1.4 lbs. [0.64 kg]
2.0 lbs. [0.90 kg]
Compliance CE; EMC Directive, Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 years limited
Part Number 011313

*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

What IP phones do you recommend for setting up a Peer to Peer with this device?

PoE Pass-Through Connections

Product Mounting

Dimensions
Daisy Chain Connections
Documentation
Documentation
Description Date
PDF Datasheet DATE:1/11/19
PDF Quick-Reference Placemat DATE:10/4/17
PDF Operations Guide DATE:10/4/17
Firmware, Drivers & Utilities
ZIP Configuration Utility for the PoE Clock

Description

The PoE Digital Clock connects to your PoE network and gets the device's precision time updated from an NTP (Network Time Protocol) server. The device includes an automatic daylight savings time mode and a Windows-based discovery and setup utility. No other software is required.

The CyberData PoE Digital Clock contains CyberData's exclusive PoE pass-through switch which allows other PoE devices to be daisy chained off of the clock.  See the Installation tab for daisy chain options.

CyberData has maintained one of the most comprehensive lists of IP PBX servers certified to work with CyberData VoIP Products.

Features

  • 4 digits that are 2.3-inches tall
  • 5-Watts total power
  • Network configurable, DHCP or static IP
  • Network discoverable, with CyberData discovery and configuration utility
  • 12/24 hour formats
  • Configurable colon, on, off, flashing
  • Configurable display intensity 1-15 or auto intensity - ambient light sense
  • Configurable time zone
  • Configurable daylight saving - automatic adjustment daylight savings or standard time
  • Automatic NTP update, by IP or URL

Specs

Ethernet I/F 10/100 Mbps
Protocol SIP RFC 3261 Compatible
Power Input PoE 802.3af compliant or +12 to +24VDC @ 1000mA (500 mA minimum)
Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity:5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Dimensions**
8.58 in. [218.0 mm] Length
2.34 in. [59.4 mm] Width
4.33 in. [110.0 mm] Height
Weight
Boxed Weight
1.4 lbs. [0.64 kg]
2.0 lbs. [0.90 kg]
Compliance CE; EMC Directive, Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 years limited
Part Number 011313

*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

FAQs

What IP phones do you recommend for setting up a Peer to Peer with this device?

Installation


PoE Pass-Through Connections

Product Mounting

Dimensions
Daisy Chain Connections

Downloads

Documentation
Documentation
Description Date
PDF Datasheet DATE:1/11/19
PDF Quick-Reference Placemat DATE:10/4/17
PDF Operations Guide DATE:10/4/17
Firmware, Drivers & Utilities
ZIP Configuration Utility for the PoE Clock
