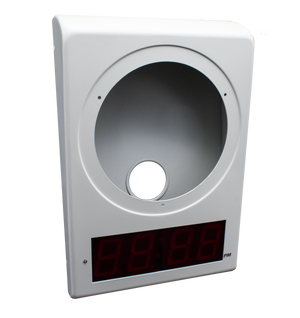

011153/011154 Wall Mount Clock Kit

Part Number: 011153

MSRP: $315.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

http://support.cyberdata.net/register.php

CyberData’s Try & Buy program allows you to order QTY (1) of any SIP device and try it for 30 days to determine if it will meet your needs. When “Try and Buy" is selected, we charge on shipment and we will apply a credit IF the product is returned through our RMA process within 30 days, in good condition in its original packaging.

Once returned and upon inspection, CyberData will apply the credit to your credit card, less any shipping and handling charges that CyberData incurs. No returns are accepted after 30 days under our Try & Buy program.

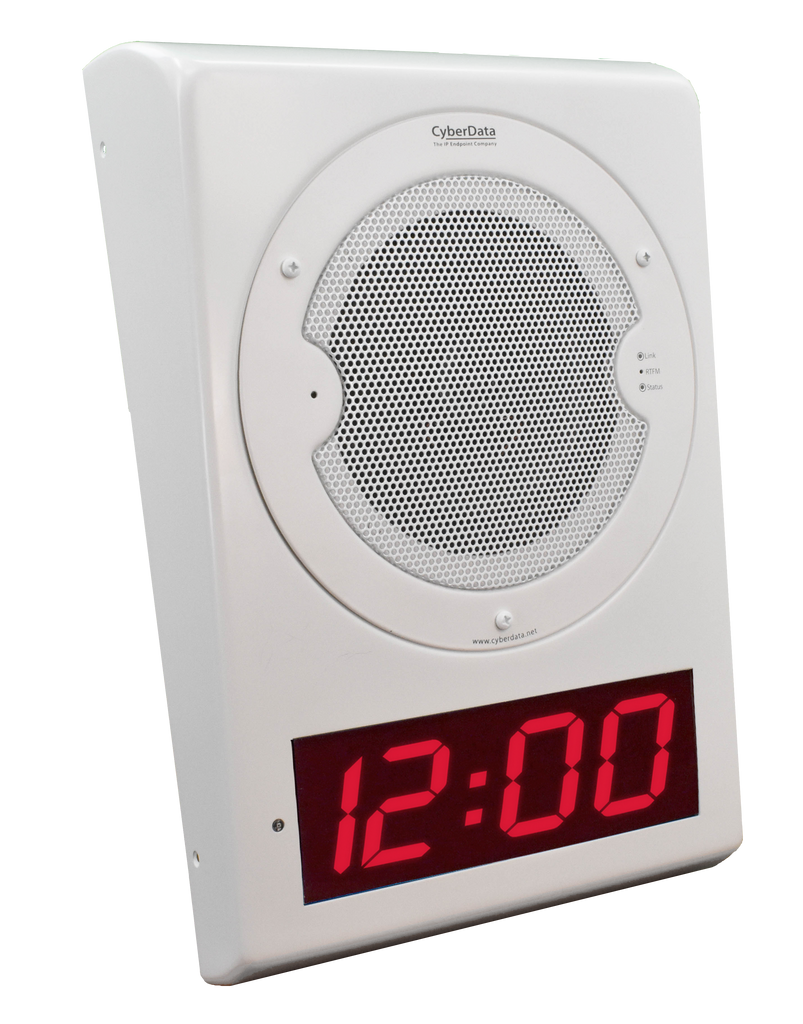

The Clock Kit enables the CyberData SIP, Singlewire and Syn-Apps Speakers to be upgraded to a highly visible public address device with a time display. The large display characters are easily read and adjust for ambient light conditions. Time sync is performed by NTP and a built-in real-time clock. Power is supplied by the CyberData SIP, Singlewire or Syn-Apps Speaker from a single PoE connection.

*The Clock Kit/Speaker combo cannot support the Auxiliary Strobe Kit.

  • Easy wall or ceiling installation
  • Mounting kit included
  • Electrogalvinized steel construction
  • RoHS compliant
  • Keyhold for easy installation
  • Top and bottom cable channels
  • 2.3-inch sized digits
  • 12 or 24 hour format
Mounting kit Yes
Material Electrogalvanized Steel
RoHS Compliant Yes
Time Source NTP
Battery Backup Yes
Warranty 2 Year Limited
Part Number Wall Mount, Standard Color 011153, RAL 9002, Gray White (replaces 011023)
Part Number Wall Mount, Optional Color 011154, RAL 9003, Signal White
What dry wall mount enclosure do I need to use for the flush-mounted Clock Kit adapter?

Use the ATLAS FEST-18SC enclosure which is sold separately by ATLAS.

Do I need to do anything with my Clock kit before I install it?

Make sure JP1 is installed. This powers the Real Time Clock from the battery. If you do not install JP1, the clock will lose it's time when the power is disconnected.

I am unable to connect with the unit when it is plugged into a Cisco SLM 224P switch.

The cables or switch ports that you are connecting to are set in switch or hub mode instead of endpoint stations. The MDIX setting needs to be changed to MDI since our VoIP products are end stations. From the Cisco SLM 224P User Guide:

Change to MDI: MDI/MDIX displays the Media Dependent Interface (MDI) / Media Dependent Interface with Crossover (MDIX) status on the port. Hubs and switches are deliberately wired the opposite of the way end stations are wired, so that when a hub or switch is connected to an end station, a straight through Ethernet cable can be used, and the pairs are matched up properly. When two hubs or switches are connected to each other, or two end stations are connected to each other, a crossover cable is used to ensure that the correct pairs are connected. The possible field values are: MDIX

Use for hubs and switches. MDI Use for end stations.


Typical Installation

Wall Mounting

Dimensions
Documentation
Description Date
PDF Datasheet DATE:10/10/16
PDF Quick Reference DATE:10/4/17
PDF Operations Guide DATE:10/4/17

Description

The Clock Kit enables the CyberData SIP, Singlewire and Syn-Apps Speakers to be upgraded to a highly visible public address device with a time display. The large display characters are easily read and adjust for ambient light conditions. Time sync is performed by NTP and a built-in real-time clock. Power is supplied by the CyberData SIP, Singlewire or Syn-Apps Speaker from a single PoE connection.

*The Clock Kit/Speaker combo cannot support the Auxiliary Strobe Kit.

Features

  • Easy wall or ceiling installation
  • Mounting kit included
  • Electrogalvinized steel construction
  • RoHS compliant
  • Keyhold for easy installation
  • Top and bottom cable channels
  • 2.3-inch sized digits
  • 12 or 24 hour format

Specs

Mounting kit Yes
Material Electrogalvanized Steel
RoHS Compliant Yes
Time Source NTP
Battery Backup Yes
Warranty 2 Year Limited
Part Number Wall Mount, Standard Color 011153, RAL 9002, Gray White (replaces 011023)
Part Number Wall Mount, Optional Color 011154, RAL 9003, Signal White

FAQs

What dry wall mount enclosure do I need to use for the flush-mounted Clock Kit adapter?

Use the ATLAS FEST-18SC enclosure which is sold separately by ATLAS.

Do I need to do anything with my Clock kit before I install it?

Make sure JP1 is installed. This powers the Real Time Clock from the battery. If you do not install JP1, the clock will lose it's time when the power is disconnected.

I am unable to connect with the unit when it is plugged into a Cisco SLM 224P switch.

The cables or switch ports that you are connecting to are set in switch or hub mode instead of endpoint stations. The MDIX setting needs to be changed to MDI since our VoIP products are end stations. From the Cisco SLM 224P User Guide:

Change to MDI: MDI/MDIX displays the Media Dependent Interface (MDI) / Media Dependent Interface with Crossover (MDIX) status on the port. Hubs and switches are deliberately wired the opposite of the way end stations are wired, so that when a hub or switch is connected to an end station, a straight through Ethernet cable can be used, and the pairs are matched up properly. When two hubs or switches are connected to each other, or two end stations are connected to each other, a crossover cable is used to ensure that the correct pairs are connected. The possible field values are: MDIX

Use for hubs and switches. MDI Use for end stations.

Installation


Typical Installation

Wall Mounting

Dimensions

Downloads

Documentation
Description Date
PDF Datasheet DATE:10/10/16
PDF Quick Reference DATE:10/4/17
PDF Operations Guide DATE:10/4/17
