011153 Wall Mount Clock Kit - RAL 9002 Gray White (Replacement Product is 011154)

011153 Wall Mount Clock Kit - RAL 9002 Gray White (Replacement Product is 011154)

Part Number: 011153 - Color Discontinued

MSRP: $0.00

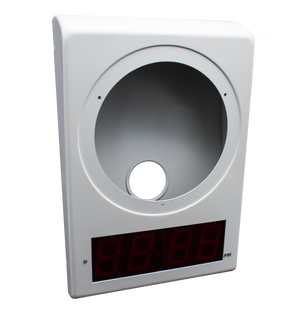

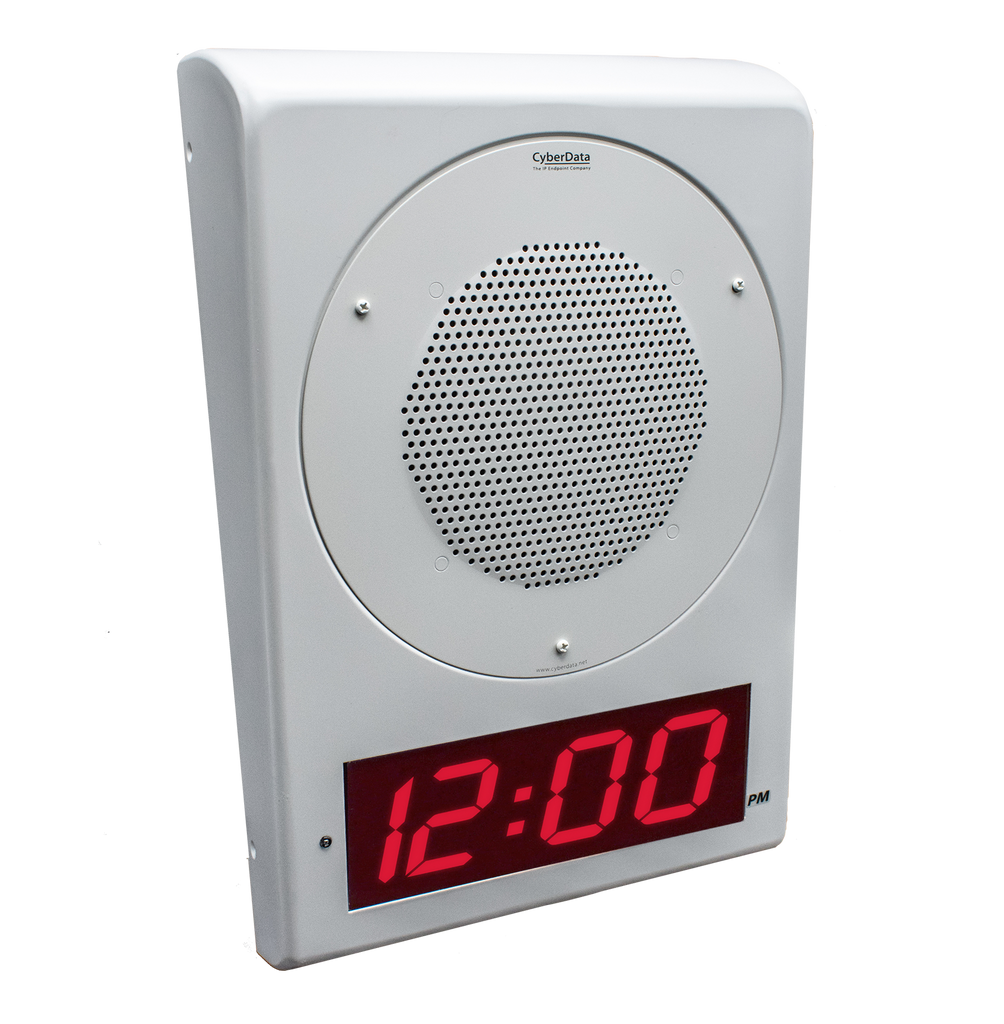

The Clock Kit enables the CyberData SIP, InformaCast Enabled and Syn-Apps Speakers to be upgraded to a highly visible public address device with a time display. The large display characters are easily read and adjust for ambient light conditions. Time sync is performed by NTP and a built-in real-time clock. Power is supplied by the CyberData SIP, InformaCast Enabled or Syn-Apps Speaker from a single PoE connection.

*The Clock Kit/Speaker combo cannot support the Auxiliary RGB (Multi-Color) Strobe Kit.

  • Easy wall or ceiling installation
  • Mounting kit included
  • Electrogalvinized steel construction
  • RoHS compliant
  • Top and bottom cable channels
  • 2.3-inch sized digits
  • 12 or 24 hour format
  • Auto ambient light adjustment
Mounting kit Yes
Material Electrogalvanized Steel
RoHS Compliant Yes
Time Source NTP
Battery Backup Yes
Dimensions 15.8 in. [402 mm] L x 10.4 in. [264 mm] W x 4.0 in. [102 mm] D
Boxed Weight 5.8 lbs. [2.63 kg]
Warranty 2 Year Limited
Part Number/Color 011154/RAL 9003 (Signal White)
What dry wall mount enclosure do I need to use for the flush-mounted Clock Kit adapter?

Use the ATLAS FEST-18SC enclosure which is sold separately by ATLAS.

Do I need to do anything with my Clock kit before I install it?

Make sure JP1 is installed. This powers the Real Time Clock from the battery. If you do not install JP1, the clock will lose it's time when the power is disconnected.

I am unable to connect with the unit when it is plugged into a Cisco SLM 224P switch.

The cables or switch ports that you are connecting to are set in switch or hub mode instead of endpoint stations. The MDIX setting needs to be changed to MDI since our VoIP products are end stations. From the Cisco SLM 224P User Guide:

Change to MDI: MDI/MDIX displays the Media Dependent Interface (MDI) / Media Dependent Interface with Crossover (MDIX) status on the port. Hubs and switches are deliberately wired the opposite of the way end stations are wired, so that when a hub or switch is connected to an end station, a straight through Ethernet cable can be used, and the pairs are matched up properly. When two hubs or switches are connected to each other, or two end stations are connected to each other, a crossover cable is used to ensure that the correct pairs are connected. The possible field values are: MDIX

Use for hubs and switches. MDI Use for end stations.


Typical Installation

Wall Mounting

Dimensions
Documentation
Description Date
PDF Datasheet DATE:10/10/16
PDF Quick Reference DATE:6/7/19
PDF Operations Guide DATE:10/4/17

Description

The Clock Kit enables the CyberData SIP, InformaCast Enabled and Syn-Apps Speakers to be upgraded to a highly visible public address device with a time display. The large display characters are easily read and adjust for ambient light conditions. Time sync is performed by NTP and a built-in real-time clock. Power is supplied by the CyberData SIP, InformaCast Enabled or Syn-Apps Speaker from a single PoE connection.

*The Clock Kit/Speaker combo cannot support the Auxiliary RGB (Multi-Color) Strobe Kit.

Features

  • Easy wall or ceiling installation
  • Mounting kit included
  • Electrogalvinized steel construction
  • RoHS compliant
  • Top and bottom cable channels
  • 2.3-inch sized digits
  • 12 or 24 hour format
  • Auto ambient light adjustment

Specs

Mounting kit Yes
Material Electrogalvanized Steel
RoHS Compliant Yes
Time Source NTP
Battery Backup Yes
Dimensions 15.8 in. [402 mm] L x 10.4 in. [264 mm] W x 4.0 in. [102 mm] D
Boxed Weight 5.8 lbs. [2.63 kg]
Warranty 2 Year Limited
Part Number/Color 011154/RAL 9003 (Signal White)

FAQs

What dry wall mount enclosure do I need to use for the flush-mounted Clock Kit adapter?

Use the ATLAS FEST-18SC enclosure which is sold separately by ATLAS.

Do I need to do anything with my Clock kit before I install it?

Make sure JP1 is installed. This powers the Real Time Clock from the battery. If you do not install JP1, the clock will lose it's time when the power is disconnected.

I am unable to connect with the unit when it is plugged into a Cisco SLM 224P switch.

The cables or switch ports that you are connecting to are set in switch or hub mode instead of endpoint stations. The MDIX setting needs to be changed to MDI since our VoIP products are end stations. From the Cisco SLM 224P User Guide:

Change to MDI: MDI/MDIX displays the Media Dependent Interface (MDI) / Media Dependent Interface with Crossover (MDIX) status on the port. Hubs and switches are deliberately wired the opposite of the way end stations are wired, so that when a hub or switch is connected to an end station, a straight through Ethernet cable can be used, and the pairs are matched up properly. When two hubs or switches are connected to each other, or two end stations are connected to each other, a crossover cable is used to ensure that the correct pairs are connected. The possible field values are: MDIX

Use for hubs and switches. MDI Use for end stations.

Installation


Typical Installation

Wall Mounting

Dimensions

Downloads

Documentation
Description Date
PDF Datasheet DATE:10/10/16
PDF Quick Reference DATE:6/7/19
PDF Operations Guide DATE:10/4/17
