011151/011152 Speaker Wall Mount

011151/011152 Speaker Wall Mount

Part Number: 011151

MSRP: $96.00

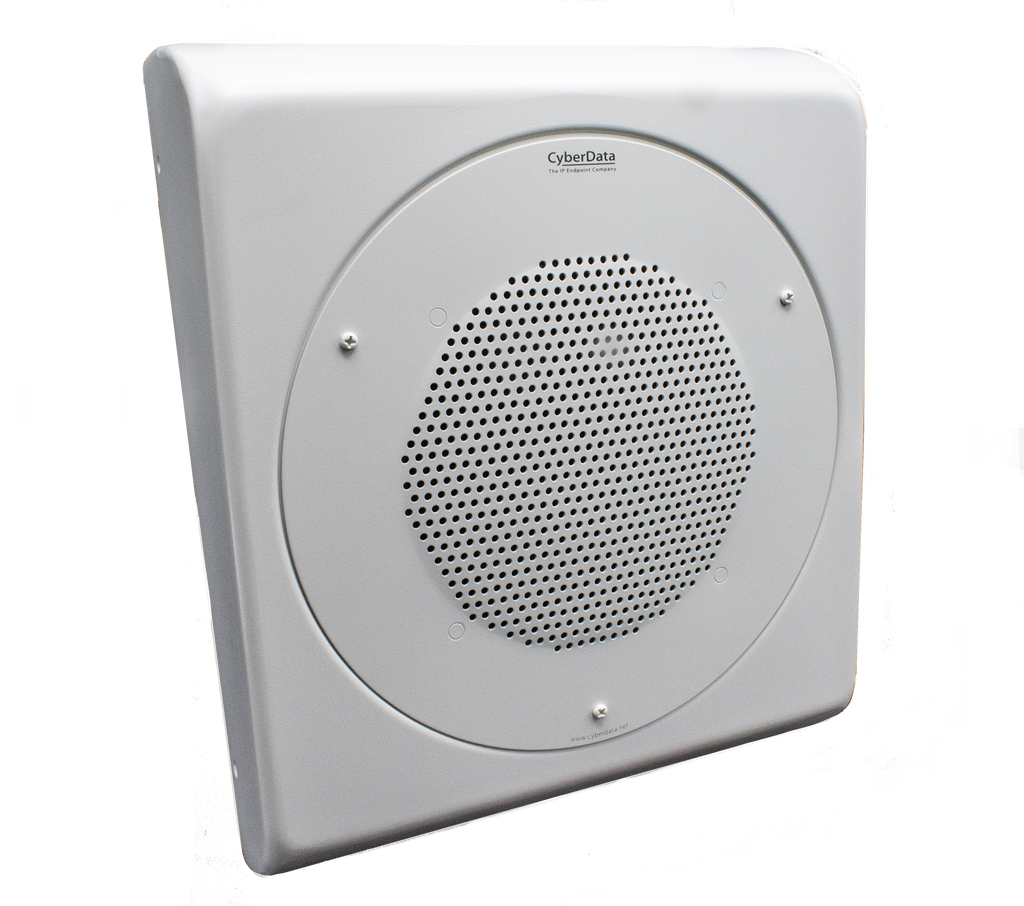

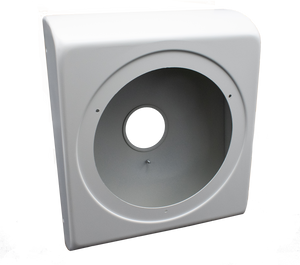

The CyberData Speaker Wall Mount enables the various CyberData SIP, InformaCast Enabled and Syn-Apps Speakers for wall mounting. The front plate is angled for downward sound dispersion.

  • Easy wall or ceiling installation
  • Mounting kit included
  • Electro-galvanized steel construction
  • RoHS compliant
  •  for easy installation
  • Top and bottom cable channels
Mounting kit Yes
Material Electro-galvanized Steel
RoHS Compliant Yes
Dimensions 12.05 in. [306 mm] L x 10.0 in. [254 mm] W x 3.97 in. [100.8 mm] D
Boxed Weight 5.8 lbs. [2.63 kg]
Warranty 2 Year Limited
Part Number Standard Color 011151, RAL 9002, Gray White (replaces 010882)
Part Number Optional Color 011152, RAL 9003, Signal White

Typical Installation
Documentation
Description Date
PDF Datasheet DATE:3/10/15
PDF Quick Reference DATE:11/6/18

Description

The CyberData Speaker Wall Mount enables the various CyberData SIP, InformaCast Enabled and Syn-Apps Speakers for wall mounting. The front plate is angled for downward sound dispersion.

Features

  • Easy wall or ceiling installation
  • Mounting kit included
  • Electro-galvanized steel construction
  • RoHS compliant
  •  for easy installation
  • Top and bottom cable channels

Specs

Mounting kit Yes
Material Electro-galvanized Steel
RoHS Compliant Yes
Dimensions 12.05 in. [306 mm] L x 10.0 in. [254 mm] W x 3.97 in. [100.8 mm] D
Boxed Weight 5.8 lbs. [2.63 kg]
Warranty 2 Year Limited
Part Number Standard Color 011151, RAL 9002, Gray White (replaces 010882)
Part Number Optional Color 011152, RAL 9003, Signal White

Installation


Typical Installation

Downloads

Documentation
Description Date
PDF Datasheet DATE:3/10/15
PDF Quick Reference DATE:11/6/18
