Part Number: 011479

MSRP: $699.00

Each CyberData device comes with a Two-Year Warranty. Extended Warranty extends your warranty for an additional two years. Already have a CyberData device and want to add a Two-Year Warranty? Please click the link below to register your device first:

http://support.cyberdata.net/register.php

CyberData’s Try & Buy program allows you to order QTY (1) of any SIP device and try it for 30 days to determine if it will meet your needs. When “Try and Buy" is selected, we charge on shipment and we will apply a credit IF the product is returned through our RMA process within 30 days, in good condition in its original packaging.

Once returned and upon inspection, CyberData will apply the credit to your credit card, less any shipping and handling charges that CyberData incurs. No returns are accepted after 30 days under our Try & Buy program.

Need help configuring your devices?

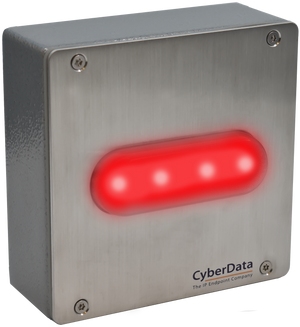

The wall-mounted SIP Outdoor RGB (Multi-Color) Strobe operates as an IP65 rated visual alerting device. The Outdoor Strobe can be set up as part of a ring group or page group to give visual notification of incoming calls or pages.

The Outdoor Strobe may also be activated by being part of a multicast group. The Strobe can be configured with up to 10 multicast addresses and is activated when a stream is sent to its address.

You can have the Strobe respond to message waiting signals by blinking. When the message has been heard, the Strobe stops blinking.

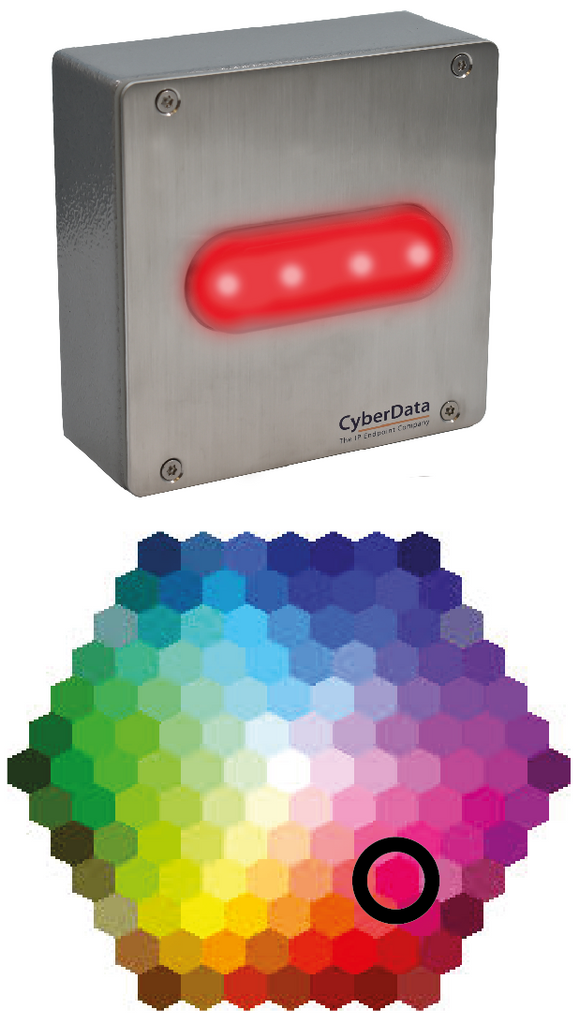

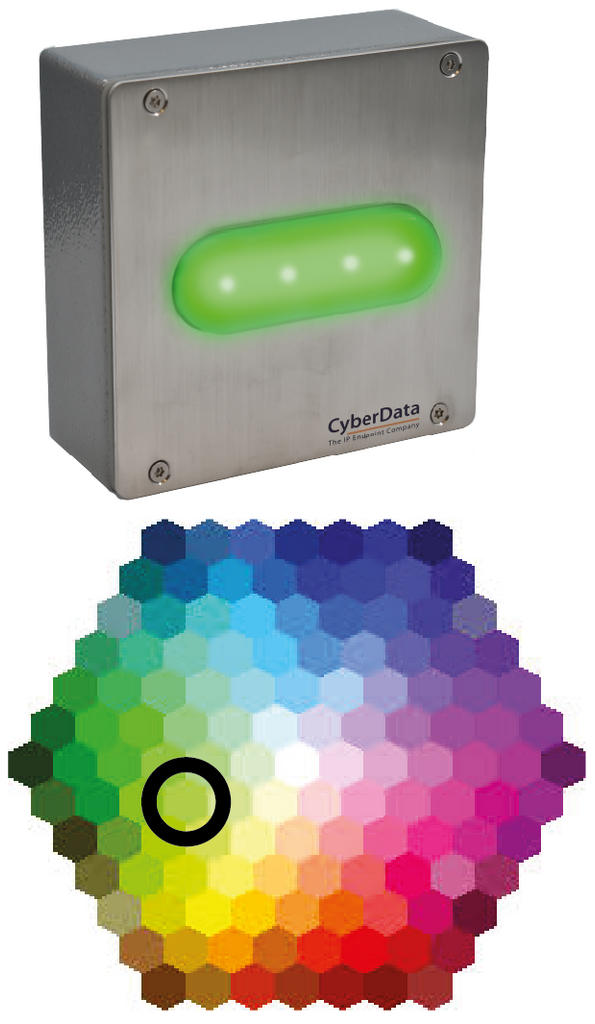

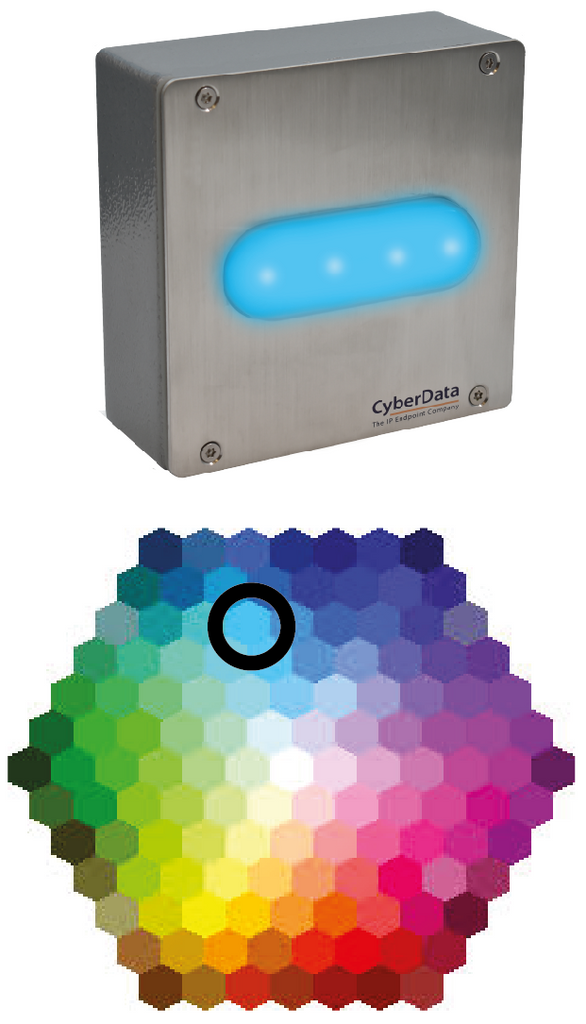

Multiple colors, blink rate and brightness can be selected for each of the different activation methods. There are 10 multicast settings and two SIP extensions.

Users may also use CyberData's HTTP command set to directly access the Strobe’s functions.

CyberData has maintained one of the most comprehensive lists of IP PBX servers certified to work with CyberData VoIP Products.

  • Meets ADA requirements for telephony signaling and notification
  • TLS 1.2, enhanced security for IP Endpoints in a local or cloud-based environment
  • Cisco SRST support
  • Event-controlled relay
  • Tamper sensor
  • Web-based setup

    Use Areas Include:

    • Shipping and receiving areas
    • Parking garages and parking lots
    • Playgrounds
    • Places of Refuge
    • Anyplace needing an IP rated outdoor visual alert
      Ethernet I/F 10/100 Mbps
      Protocol SIP RFC 3261 Compatible
      Power Input PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included)
      Flash Rate 5 user-defined scenes
      LED MTBF 100,000 Hours
      On-Board Relay 1A @ 30 VDC
      Network Security TLS/SSL 1.2
      IP Rating IP65
      Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
      Humidity: 5-95%, non-condensing
      Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
      Storage Altitude Up to 15,000 ft. (4573 m)
      Dimensions* 5.1 inches [129.5 mm] Length
      2.9 inches [73.66 mm] Width
      5.1 inches [129.5 mm] Height
      Weight
      Boxed Weight
      2.0 lbs. [0.90 kg]
      3.0 lbs. [1.35 kg]
      Compliance CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
      Warranty 2 years Limited
      Part Number 011479

      *Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

      How do I update my firmware?

      Go to the Downloads tab, click on the serial number range matching your device and download the firmware compatible with it. To update the firmware, unzip the file and log in to the web GUI for the device you are trying to upgrade. Navigate to the Firmware tab and browse for the firmware file you just downloaded. Select and upload that file. Do not reboot, the device will do it for you. For more information, please check your product’s Operations Guide, also available under the Downloads tab.

      PLEASE NOTE: If you are downgrading, please contact CyberData’s Technical Support Department first to ensure the device does not get damaged. We also recommend you export a copy of your current configuration BEFORE updating, should a loss of power or another issue occur that would potentially lose your settings.

      Is this device compatible with my service provider or IP-PBX server?

      CyberData VoIP products are compatible with IP-PBX servers that support standard SIP protocol. You can find a full list of IP-PBX servers that CyberData products have been validated on by going to Connecting to Compatible IP-PBX Servers. If you do not see your IP-PBX on this list, feel free to contact CyberData’s Technical Support Department for more information.

      What is multicast?

      IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.

      Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.

      CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.

      How can I prevent water or weather damage to the device if it is in a vulnerable location?

      Refer to “Connecting and Sealing the RGB Strobe” on the Quick Reference Placemat.

      For additional support or answers to questions not covered on this page, who should I contact?

      Typical Installation

      Dimensions and Rear View with Mounting Holes

      Dimensions

      Mounting

      Cable Routing and Wall Mounting Option
      Side Conduit Mounting Restrictions

      Onboard Terminal Connections

      Connections


      Remote Switch Connection

      Description

      The wall-mounted SIP Outdoor RGB (Multi-Color) Strobe operates as an IP65 rated visual alerting device. The Outdoor Strobe can be set up as part of a ring group or page group to give visual notification of incoming calls or pages.

      The Outdoor Strobe may also be activated by being part of a multicast group. The Strobe can be configured with up to 10 multicast addresses and is activated when a stream is sent to its address.

      You can have the Strobe respond to message waiting signals by blinking. When the message has been heard, the Strobe stops blinking.

      Multiple colors, blink rate and brightness can be selected for each of the different activation methods. There are 10 multicast settings and two SIP extensions.

      Users may also use CyberData's HTTP command set to directly access the Strobe’s functions.

      CyberData has maintained one of the most comprehensive lists of IP PBX servers certified to work with CyberData VoIP Products.

      Features

      • Meets ADA requirements for telephony signaling and notification
      • TLS 1.2, enhanced security for IP Endpoints in a local or cloud-based environment
      • Cisco SRST support
      • Event-controlled relay
      • Tamper sensor
      • Web-based setup

        Use Areas Include:

        • Shipping and receiving areas
        • Parking garages and parking lots
        • Playgrounds
        • Places of Refuge
        • Anyplace needing an IP rated outdoor visual alert

          Specs

          Ethernet I/F 10/100 Mbps
          Protocol SIP RFC 3261 Compatible
          Power Input PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included)
          Flash Rate 5 user-defined scenes
          LED MTBF 100,000 Hours
          On-Board Relay 1A @ 30 VDC
          Network Security TLS/SSL 1.2
          IP Rating IP65
          Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
          Humidity: 5-95%, non-condensing
          Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
          Storage Altitude Up to 15,000 ft. (4573 m)
          Dimensions* 5.1 inches [129.5 mm] Length
          2.9 inches [73.66 mm] Width
          5.1 inches [129.5 mm] Height
          Weight
          Boxed Weight
          2.0 lbs. [0.90 kg]
          3.0 lbs. [1.35 kg]
          Compliance CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
          Warranty 2 years Limited
          Part Number 011479

          *Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

          FAQs

          How do I update my firmware?

          Go to the Downloads tab, click on the serial number range matching your device and download the firmware compatible with it. To update the firmware, unzip the file and log in to the web GUI for the device you are trying to upgrade. Navigate to the Firmware tab and browse for the firmware file you just downloaded. Select and upload that file. Do not reboot, the device will do it for you. For more information, please check your product’s Operations Guide, also available under the Downloads tab.

          PLEASE NOTE: If you are downgrading, please contact CyberData’s Technical Support Department first to ensure the device does not get damaged. We also recommend you export a copy of your current configuration BEFORE updating, should a loss of power or another issue occur that would potentially lose your settings.

          Is this device compatible with my service provider or IP-PBX server?

          CyberData VoIP products are compatible with IP-PBX servers that support standard SIP protocol. You can find a full list of IP-PBX servers that CyberData products have been validated on by going to Connecting to Compatible IP-PBX Servers. If you do not see your IP-PBX on this list, feel free to contact CyberData’s Technical Support Department for more information.

          What is multicast?

          IP multicast is a technique for one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver. This stream scales to a larger receiver population by not requiring prior knowledge of who or how many receivers there are. Multicast uses network infrastructure efficiently by requiring the source to send a packet only once, even if it needs to be delivered to many receivers. The network replicates the packet in order to reach multiple receivers only when necessary.

          Multicast is a great alternative to SIP registration as it does not require that the recipient of the stream to register as an extension on an IP-PBX server.

          CyberData products support both regular IGMP multicast as well as proprietary Polycom Group Paging.

          How can I prevent water or weather damage to the device if it is in a vulnerable location?

          Refer to “Connecting and Sealing the RGB Strobe” on the Quick Reference Placemat.

          For additional support or answers to questions not covered on this page, who should I contact?

          Installation

          Typical Installation

          Dimensions and Rear View with Mounting Holes

          Dimensions

          Mounting

          Cable Routing and Wall Mounting Option
          Side Conduit Mounting Restrictions

          Onboard Terminal Connections

          Connections


          Remote Switch Connection
