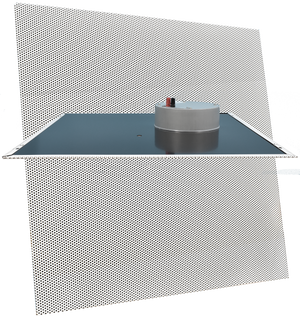

011523 Auxiliary Analog 2 x 2 Ceiling Tile Drop-In Speaker
Part Number: 011523
MSRP: $0.00
- Description
- Specs
- Installation
- Downloads
When paired with any CyberData SIP, InformaCast Enabled or Syn-Apps Speaker, the Auxiliary Analog 2 x 2 Ceiling Tile Drop-In Speaker will extend the sound coverage area without increasing the total speaker wattage.
| Power Input | 15 watts at 8 Ohm |
| Operating Range |
Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
|
Dimensions (Unit)* |
Length: 23.8 in. [605 mm] Width: 3 in. [77 mm] Height: 23.8 in. [605 mm] |
|
Dimensions (Boxed) |
Length: 25.5 in. [647.7 mm] Width: 4.0 in. [101.6 mm] Height: 24.5 in. [622.3 mm] |
| Weight | 12.0 lbs. [5.44 kg] |
| Boxed Weight | 14.0 lbs. [6.35 kg] |
| Compliance | CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
| Warranty | 2 Years Limited |
| Part Number | 011523 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
- Typical Installation
- Mounting
- Dimensions
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:6/16/20 |
| PDF Quick-Reference | DATE:6/16/20 |
| PDF CE Declaration of Conformity | DATE:5/15/17 |
| Connecting to Compatible IP-PBX Servers | |
| Firmware, Drivers & Utilities | |
| ZIP The SolarWinds TFTP server is used when autoprovisioning firmware updates or audio files. | |
Description
When paired with any CyberData SIP, InformaCast Enabled or Syn-Apps Speaker, the Auxiliary Analog 2 x 2 Ceiling Tile Drop-In Speaker will extend the sound coverage area without increasing the total speaker wattage.
Specs
| Power Input | 15 watts at 8 Ohm |
| Operating Range |
Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
|
Dimensions (Unit)* |
Length: 23.8 in. [605 mm] Width: 3 in. [77 mm] Height: 23.8 in. [605 mm] |
|
Dimensions (Boxed) |
Length: 25.5 in. [647.7 mm] Width: 4.0 in. [101.6 mm] Height: 24.5 in. [622.3 mm] |
| Weight | 12.0 lbs. [5.44 kg] |
| Boxed Weight | 14.0 lbs. [6.35 kg] |
| Compliance | CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
| Warranty | 2 Years Limited |
| Part Number | 011523 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
Installation
- Typical Installation
- Mounting
- Dimensions
Downloads
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:6/16/20 |
| PDF Quick-Reference | DATE:6/16/20 |
| PDF CE Declaration of Conformity | DATE:5/15/17 |
| Connecting to Compatible IP-PBX Servers | |
| Firmware, Drivers & Utilities | |
| ZIP The SolarWinds TFTP server is used when autoprovisioning firmware updates or audio files. | |
