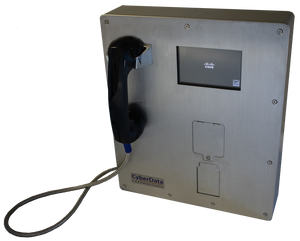

The Cisco 8851/61 Secure Phone Case takes a Cisco 8851 or 8861 and protects it from damage. The Cisco 8851/61 is housed in a steel enclosure with security screws holding down the stainless steel front cover. The screen protector is replaceable acrylic. The handset and cord cable are designed for demanding environments.
- Stainless steel front cover
- Replaceable acrylic cover for phone display
- Powder coated back enclosure
- Handset with 32-inch armored cable
- Supplied keyboard cover plate
- Hookswitch controller
- Auto answer or dial out
- High reliability magnetic hook switch
- Removable faceplate for access to the phone keypad
| Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
|
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) | |
| Storage Altitude | Up to 15,000 ft. (4573 m) | |
| Dimensions* |
Length: 12.992 in. [330 mm] Width: 5.302 in. [134.66 mm]** Height: 15.197 in. [386 mm] |
|
| Weight | 15 lbs. [6.8 kg] | |
| Boxed Weight | 19.0 lbs [8.62 kg] | |
| Compliance | RoHS Compliant | |
| Warranty | 2 Years Limited | |
| Part Number | 011474 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
**Includes the phone cradle.
- Dimensions
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:1/28/19 |
| PDF Quick Setup Guide | DATE:11/21/18 |
Description
The Cisco 8851/61 Secure Phone Case takes a Cisco 8851 or 8861 and protects it from damage. The Cisco 8851/61 is housed in a steel enclosure with security screws holding down the stainless steel front cover. The screen protector is replaceable acrylic. The handset and cord cable are designed for demanding environments.
Features
- Stainless steel front cover
- Replaceable acrylic cover for phone display
- Powder coated back enclosure
- Handset with 32-inch armored cable
- Supplied keyboard cover plate
- Hookswitch controller
- Auto answer or dial out
- High reliability magnetic hook switch
- Removable faceplate for access to the phone keypad
Specs
| Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
|
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) | |
| Storage Altitude | Up to 15,000 ft. (4573 m) | |
| Dimensions* |
Length: 12.992 in. [330 mm] Width: 5.302 in. [134.66 mm]** Height: 15.197 in. [386 mm] |
|
| Weight | 15 lbs. [6.8 kg] | |
| Boxed Weight | 19.0 lbs [8.62 kg] | |
| Compliance | RoHS Compliant | |
| Warranty | 2 Years Limited | |
| Part Number | 011474 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
**Includes the phone cradle.
Installation

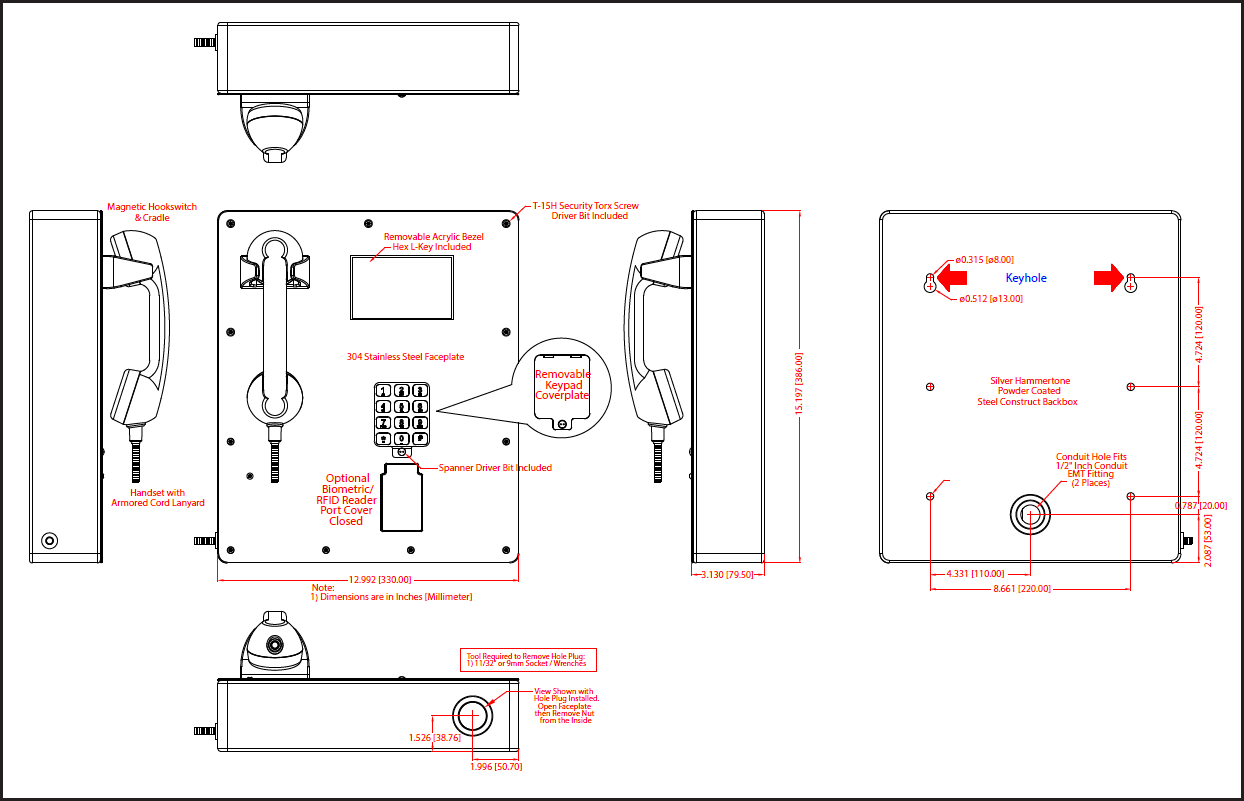

- Dimensions
Downloads
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:1/28/19 |
| PDF Quick Setup Guide | DATE:11/21/18 |
