011356 Singlewire-enabled Notification Display

Part Number: 011356

Contact Us For Pricing


The CyberData Singlewire-enabled notification display provides a method for SingleWire InformaCast notification messages to be displayed on a high resolution PoE-powered 14-inch LCD monitor. The CyberData Singlewire-enabled notification display shows fixed and scrolling Singlewire notifications and gives the option of an analog or a digital clock screen when notifications have stopped.

Audio messages from the InformaCast server can be directed to an attached speaker or horn.

High priority notification messages can be configured to blink alert areas of the screen with userdefined flashing patterns.

The clock format, notification message size, color, and the high priority flashing indications are user configurable within the web interface.

  • Web Interface and configuration
  • Configurable Analog and digital clock
  • Informacast notification device compliant
  • Multi-language support for messages
  • Configurable font, size and color
  • Configurable colored strobe function
  • Automatic and user settable ambient light adjustment
  • 802.3af PoE
  • Relay
  • Sense Input
  • Connection for external speaker or horn
Protocol InformaCast V4.0 and later
Ethernet I/F 10/100 Mbps
Power Input PoE 802.3af
Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
LCD size and resolution 14 inches
LCD resolution 1368 x 768 pixels
Dimensions Length: 14.1 inches [358.14 mm], Width: 2.6 inches [66.04 mm], Height: 9.9 inches [251.46 mm]
Warranty 2 years limited
Weight 3 lbs. [1.36 kg]
Weight 4 lbs. [1.81 kg]
Part Number 011356

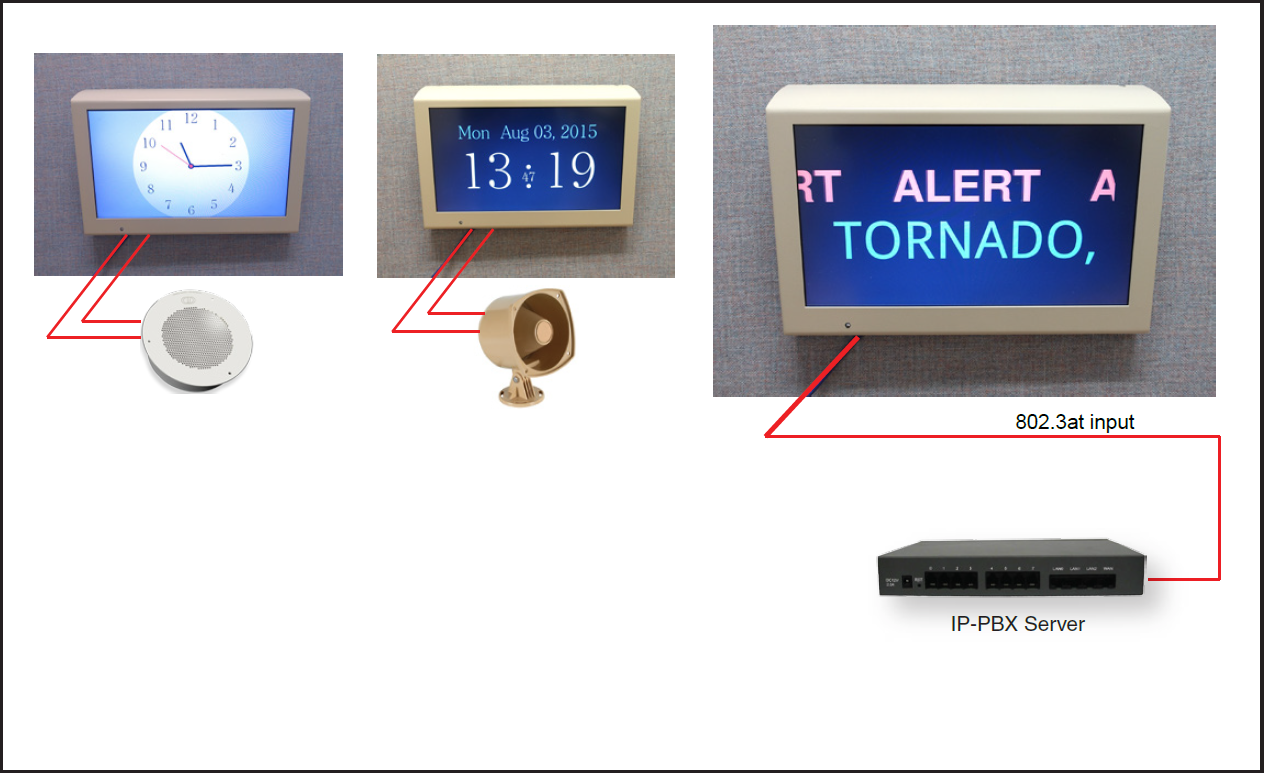

Typical Configuration

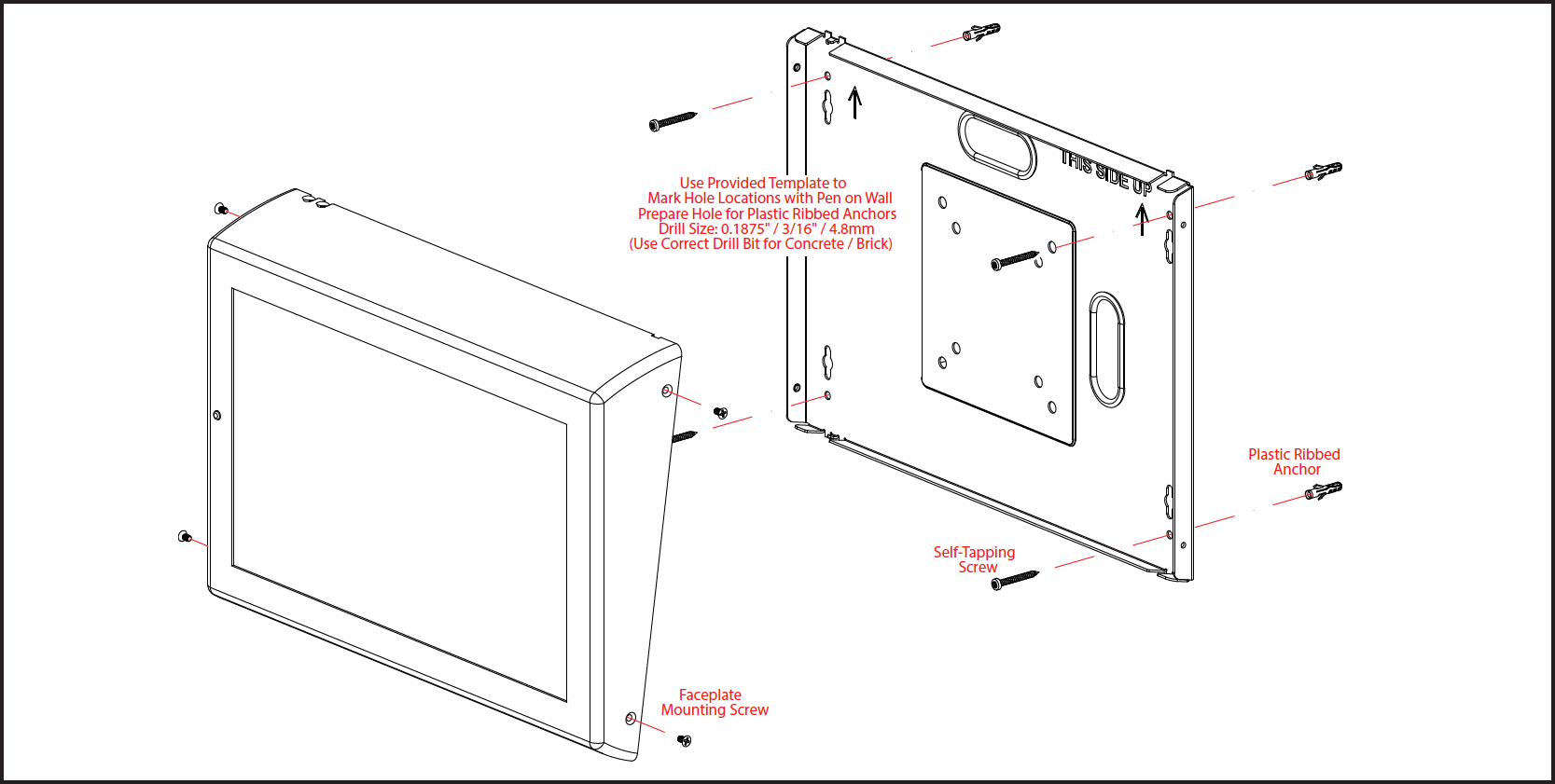

Mounting

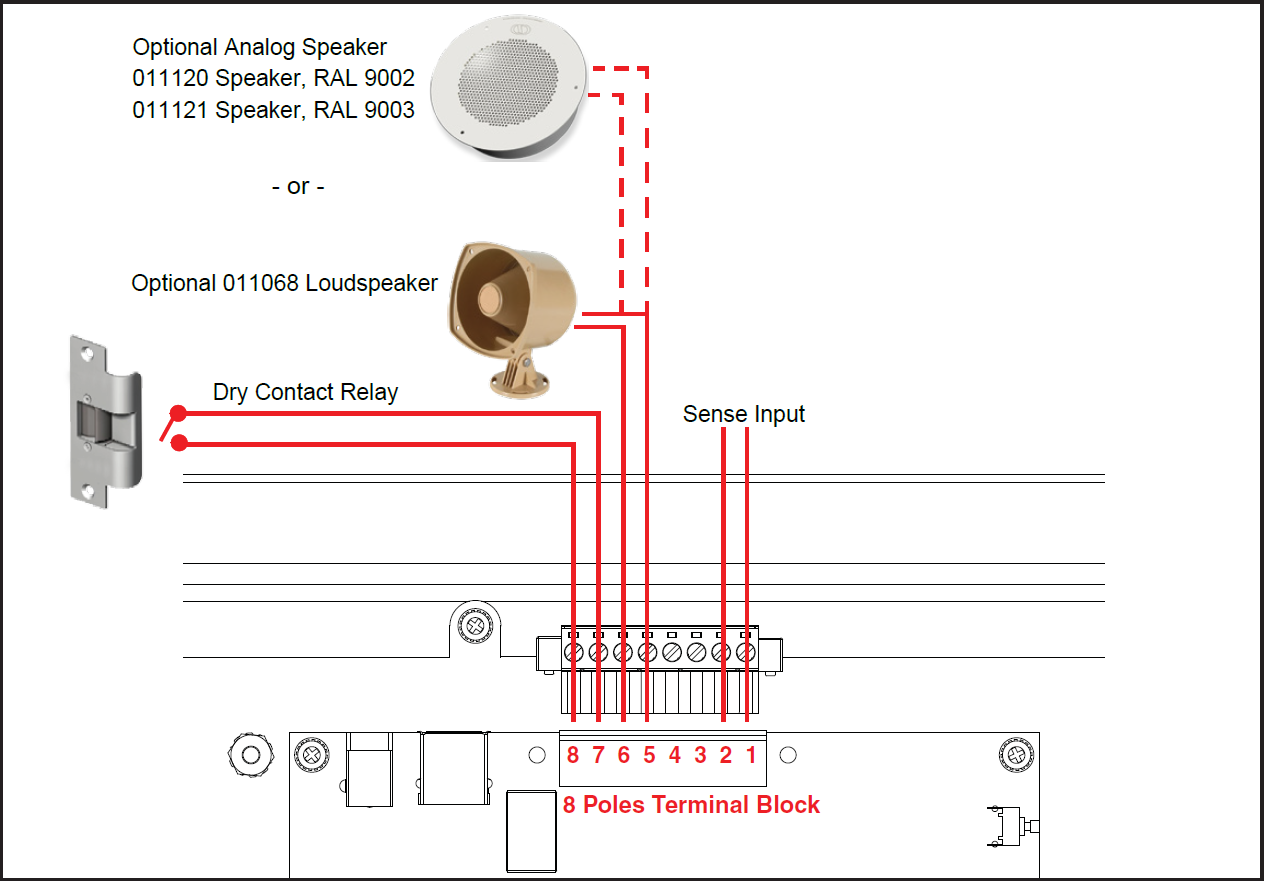

Typical Configuration

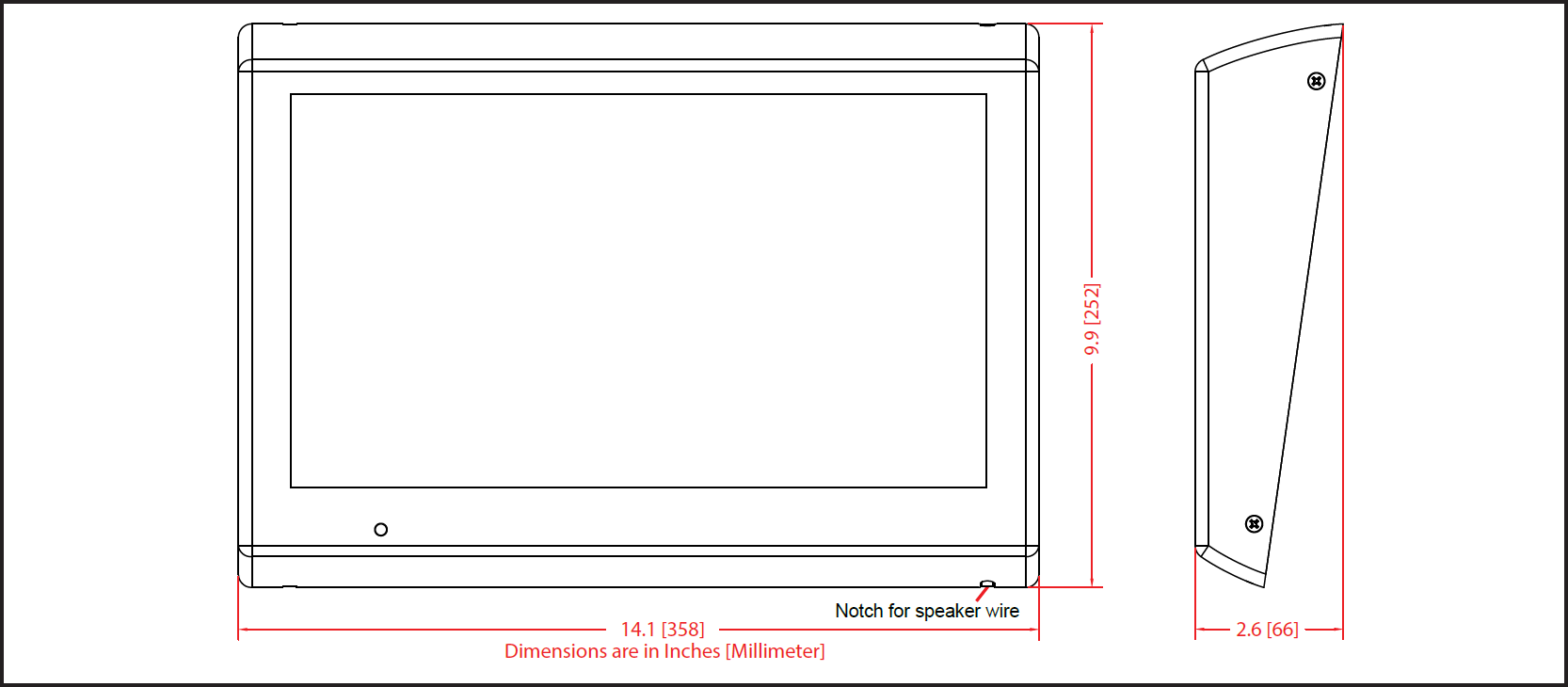

Dimensions
Documentation
Documentation
Description Date
PDF Datasheet DATE:3/6/18

Description

The CyberData Singlewire-enabled notification display provides a method for SingleWire InformaCast notification messages to be displayed on a high resolution PoE-powered 14-inch LCD monitor. The CyberData Singlewire-enabled notification display shows fixed and scrolling Singlewire notifications and gives the option of an analog or a digital clock screen when notifications have stopped.

Audio messages from the InformaCast server can be directed to an attached speaker or horn.

High priority notification messages can be configured to blink alert areas of the screen with userdefined flashing patterns.

The clock format, notification message size, color, and the high priority flashing indications are user configurable within the web interface.

Features

  • Web Interface and configuration
  • Configurable Analog and digital clock
  • Informacast notification device compliant
  • Multi-language support for messages
  • Configurable font, size and color
  • Configurable colored strobe function
  • Automatic and user settable ambient light adjustment
  • 802.3af PoE
  • Relay
  • Sense Input
  • Connection for external speaker or horn

Specs

Protocol InformaCast V4.0 and later
Ethernet I/F 10/100 Mbps
Power Input PoE 802.3af
Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
LCD size and resolution 14 inches
LCD resolution 1368 x 768 pixels
Dimensions Length: 14.1 inches [358.14 mm], Width: 2.6 inches [66.04 mm], Height: 9.9 inches [251.46 mm]
Warranty 2 years limited
Weight 3 lbs. [1.36 kg]
Weight 4 lbs. [1.81 kg]
Part Number 011356

Installation


Typical Configuration

Mounting

Typical Configuration

Dimensions

Downloads

Documentation
Documentation
Description Date
PDF Datasheet DATE:3/6/18
