011330 PoE-Powered Display

Part Number: 011330

Contact Us For Pricing


The CyberData PoE-Powered Display provides a method for notification messages to be displayed on a high resolution PoE-powered 14-inch LCD monitor. The CyberData PoE-Powered Display shows fixed and scrolling notifications and gives the option of an analog or a digital clock screen when notifications have stopped.

Audio messages from the IP-PBX server can be directed to an attached speaker or horn.

High priority notification messages can be configured to blink alert areas of the screen with userdefined flashing patterns.

The clock format, notification message size, color, and the high priority flashing indications are user configurable within the web interface.

Web Interface and configuration Configurable Analog and digital clock Multi-language support for messages Configurable font, size and color Configurable colored strobe function Automatic and user settable ambient light adjustment 802.3af PoE Relay Sense Input Connection for external speaker or horn
Protocol SIP RFC 3261 Compatible
Ethernet I/F 10/100 Mbps
Power Input PoE 802.3af
Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
LCD size and resolution 14 inches
LCD resolution 1368 x 768 pixels
Dimensions Length: 14.1 inches [358.14 mm], Width: 2.6 inches [66.04 mm], Height: 9.9 inches [251.46 mm]
Warranty 2 years limited
Weight 3 lbs. [1.36 kg]
Weight 4 lbs. [1.81 kg]
Part Number 011330
Typical Configuration Typical Configuration Dimensions Mounting
Documentation
Documentation
Description Date
PDF Datasheet DATE:3/5/18
PDF Quick Start Guide DATE:3/5/18
PDF Quick-Reference Placemat DATE:3/5/18

Description

The CyberData PoE-Powered Display provides a method for notification messages to be displayed on a high resolution PoE-powered 14-inch LCD monitor. The CyberData PoE-Powered Display shows fixed and scrolling notifications and gives the option of an analog or a digital clock screen when notifications have stopped.

Audio messages from the IP-PBX server can be directed to an attached speaker or horn.

High priority notification messages can be configured to blink alert areas of the screen with userdefined flashing patterns.

The clock format, notification message size, color, and the high priority flashing indications are user configurable within the web interface.

Features

Web Interface and configuration Configurable Analog and digital clock Multi-language support for messages Configurable font, size and color Configurable colored strobe function Automatic and user settable ambient light adjustment 802.3af PoE Relay Sense Input Connection for external speaker or horn

Specs

Protocol SIP RFC 3261 Compatible
Ethernet I/F 10/100 Mbps
Power Input PoE 802.3af
Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
LCD size and resolution 14 inches
LCD resolution 1368 x 768 pixels

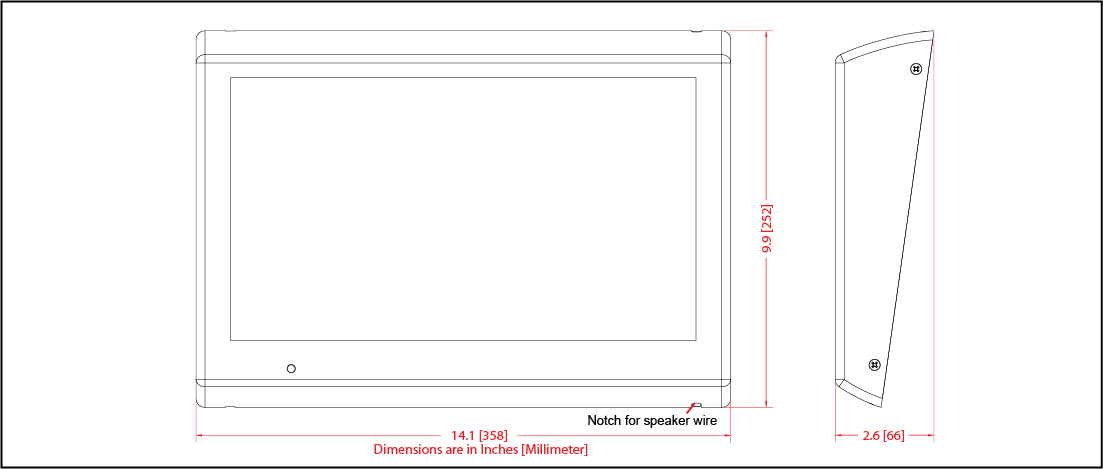

Dimensions Length: 14.1 inches [358.14 mm], Width: 2.6 inches [66.04 mm], Height: 9.9 inches [251.46 mm]
Warranty 2 years limited
Weight 3 lbs. [1.36 kg]
Weight 4 lbs. [1.81 kg]
Part Number 011330

Installation

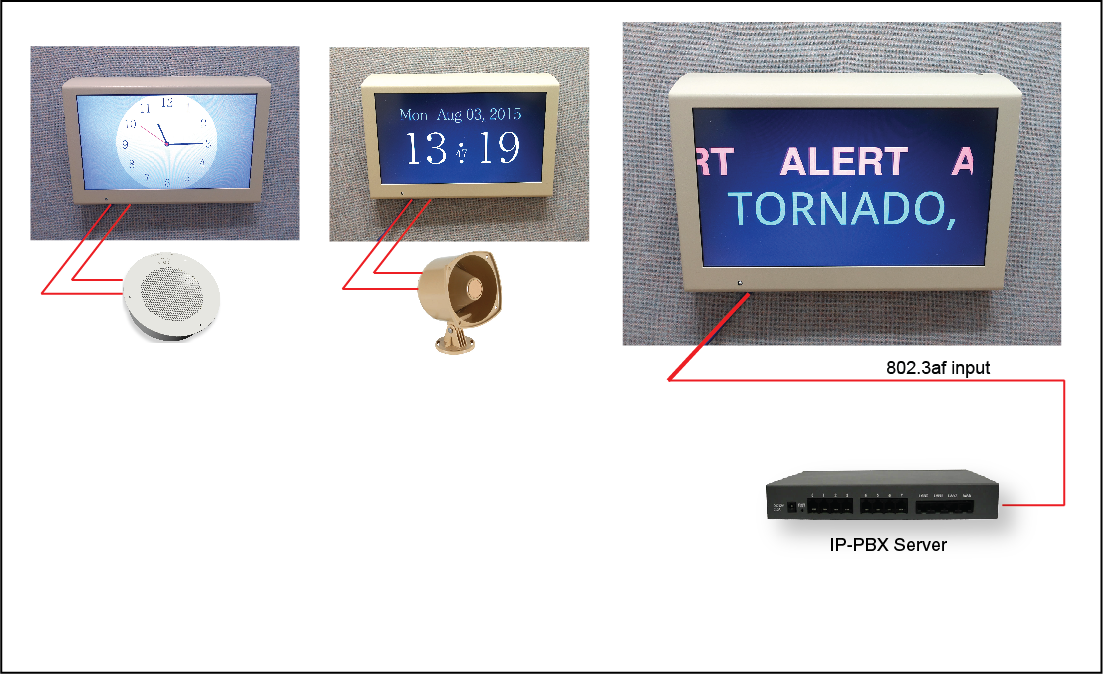

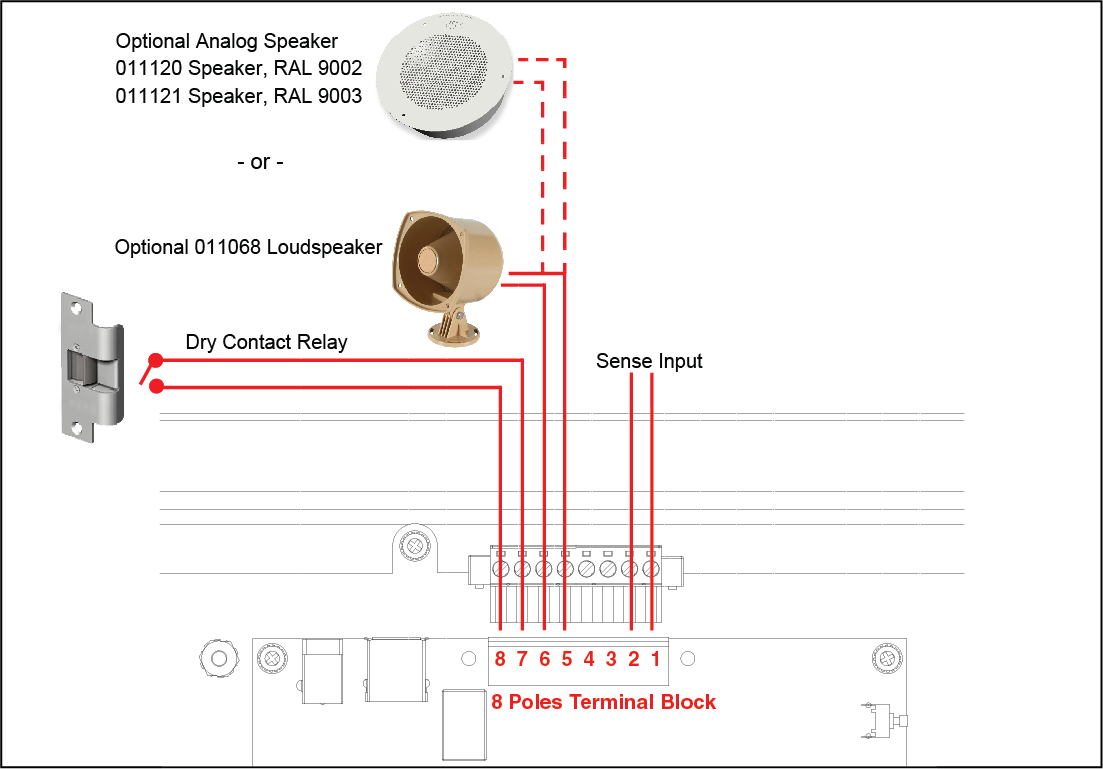

Typical Configuration Typical Configuration Dimensions Mounting
