011200 Syn-Apps Ceiling Tile Drop-in Speaker

Part Number: 011200

MSRP: $0.00

The Syn-Apps Ceiling Tile Drop-In Speaker is the newest option for installation of the Syn-Apps Speaker. The The "Drop-In" design combines easy installation with a streamlined look.
  • Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply
  • Support for G.722 codecs.
  • SA-Announce compliant
  • Plug-and-Play with SA-Announce for automatic speaker configuration
  • Background / streaming music when combined with Syn-Apps Paging Relay
  • Web-based configuration and firmware upgrades via SA-Announce
  • Plenum-rated enclosure
  • Small footprint
  • High efficiency speaker driver
  • Network and external speaker volume control
  • Can drive one external analog speaker for greater coverage
Audio Output 802.3af- SPL 109.2 dB @ 1 meter
802.3at SPL 111.9 dB @ 1 meter
Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
Ethernet I/F 10/100 Mbps
Protocol Syn-Apps SA-Announce
Power Input PoE 802.3af/802.3at
Payload Types G.711 a-law, G.711 a-law, G.722 a-law, G.722 a-law
Dimensions (Unit) Length: 12 in. [304.8 mm], Width: 3.23 in. [82.04 mm], Height: 23.75 in. [603.25 mm]
Dimensions (Boxed) Length: 16.25 in. [412.75 mm], Width 8.125 in. [206.38 mm], Height: 28.25 in. [717.55 mm]
Boxed Weight 8.0 lbs. [3.63 kg]
Compliance CE; EMC Directive Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 Year Limited
Part Number 011200

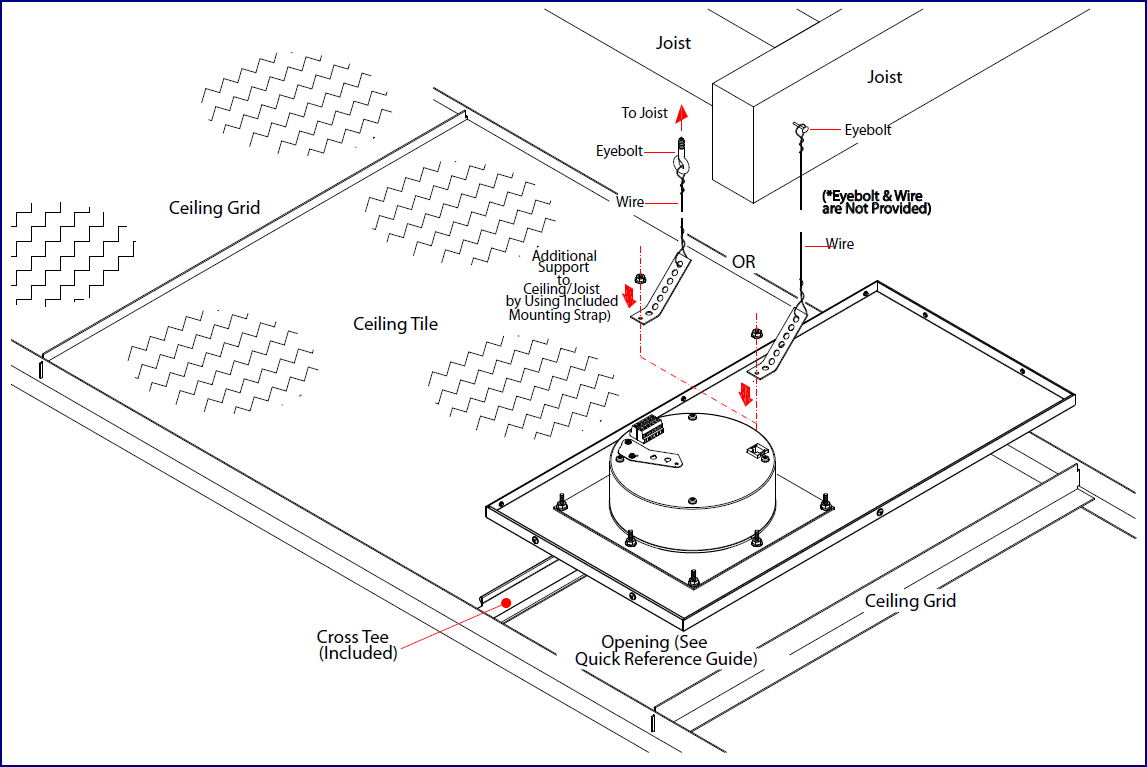

Typical Installation
Click here for Serial Numbers beginning with 2001xxxxx

Serial Number begins with 2000xxxxx

Documentation
Description Date
PDF Datasheet DATE:3/10/16
PDF Quick-Reference DATE:4/18/12
PDF CE Declaration of Conformity DATE:5/15/17

Description

The Syn-Apps Ceiling Tile Drop-In Speaker is the newest option for installation of the Syn-Apps Speaker. The The "Drop-In" design combines easy installation with a streamlined look.

Features

  • Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply
  • Support for G.722 codecs.
  • SA-Announce compliant
  • Plug-and-Play with SA-Announce for automatic speaker configuration
  • Background / streaming music when combined with Syn-Apps Paging Relay
  • Web-based configuration and firmware upgrades via SA-Announce
  • Plenum-rated enclosure
  • Small footprint
  • High efficiency speaker driver
  • Network and external speaker volume control
  • Can drive one external analog speaker for greater coverage

Specs

Audio Output 802.3af- SPL 109.2 dB @ 1 meter
802.3at SPL 111.9 dB @ 1 meter
Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
Ethernet I/F 10/100 Mbps
Protocol Syn-Apps SA-Announce
Power Input PoE 802.3af/802.3at
Payload Types G.711 a-law, G.711 a-law, G.722 a-law, G.722 a-law
Dimensions (Unit) Length: 12 in. [304.8 mm], Width: 3.23 in. [82.04 mm], Height: 23.75 in. [603.25 mm]
Dimensions (Boxed) Length: 16.25 in. [412.75 mm], Width 8.125 in. [206.38 mm], Height: 28.25 in. [717.55 mm]
Boxed Weight 8.0 lbs. [3.63 kg]
Compliance CE; EMC Directive Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty 2 Year Limited
Part Number 011200

Installation


Typical Installation

Downloads

Click here for Serial Numbers beginning with 2001xxxxx

Serial Number begins with 2000xxxxx

Documentation
Description Date
PDF Datasheet DATE:3/10/16
PDF Quick-Reference DATE:4/18/12
PDF CE Declaration of Conformity DATE:5/15/17
