011182011183 Singlewire InformaCast Talk Back Speaker

Part Number: 11,182,011,183

MSRP: $0.00

The CyberData Singlewire InformaCast® Talk Back Speaker enables two-way conversations using the Singlewire InformaCast® Talk Back application running on the phone. The Talk Back Speaker easily connects into local area networks with a single CAT5/6 cable from your PoE switch. Its small footprint allows the speaker to be mounted almost anywhere with multiple mounting options available.
  • InformaCast® compliant
  • InformaCast® CK compliant
  • Push-to-Talk
  • Supports SingleWire/Informacast Server Resilience
  • Web-based configuration
  • Web-based firmware upgradeable
  • Plenum-rated enclosure
  • Small footprint
  • High efficiency speaker driver
  • PoE 802.3af-enabled (Powered-over-Ethernet)
  • Network and external speaker volume control
  • Optional external call button and LED indicator

Typical Installation 1

Typical Installation 2

Call Button Mounting

Call Button Connection

Auxilliary Analog Speaker

Ceiling Mounting

Mounting Options

Description

The CyberData Singlewire InformaCast® Talk Back Speaker enables two-way conversations using the Singlewire InformaCast® Talk Back application running on the phone. The Talk Back Speaker easily connects into local area networks with a single CAT5/6 cable from your PoE switch. Its small footprint allows the speaker to be mounted almost anywhere with multiple mounting options available.

Features

  • InformaCast® compliant
  • InformaCast® CK compliant
  • Push-to-Talk
  • Supports SingleWire/Informacast Server Resilience
  • Web-based configuration
  • Web-based firmware upgradeable
  • Plenum-rated enclosure
  • Small footprint
  • High efficiency speaker driver
  • PoE 802.3af-enabled (Powered-over-Ethernet)
  • Network and external speaker volume control
  • Optional external call button and LED indicator

Installation

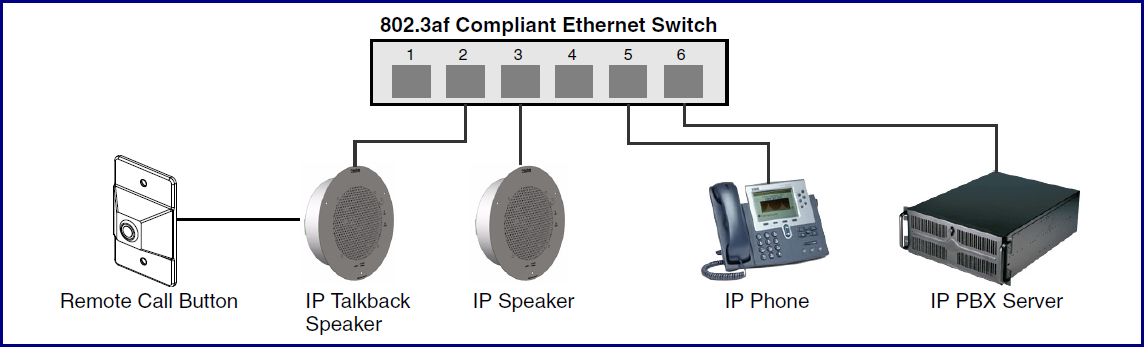

Typical Installation 1

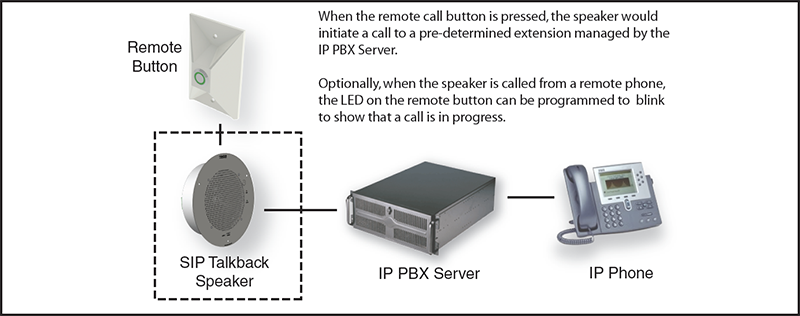

Typical Installation 2

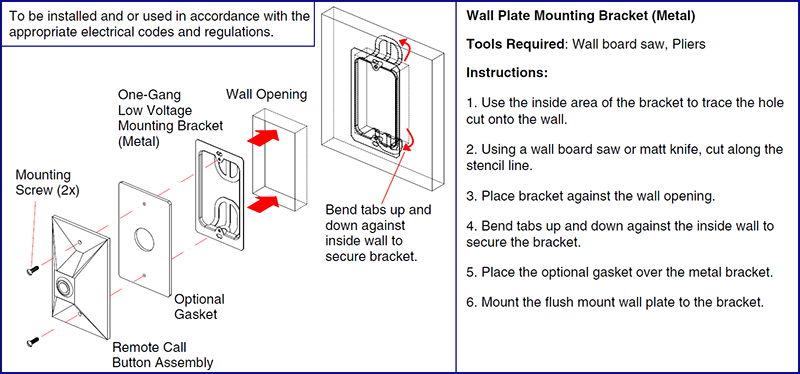

Call Button Mounting

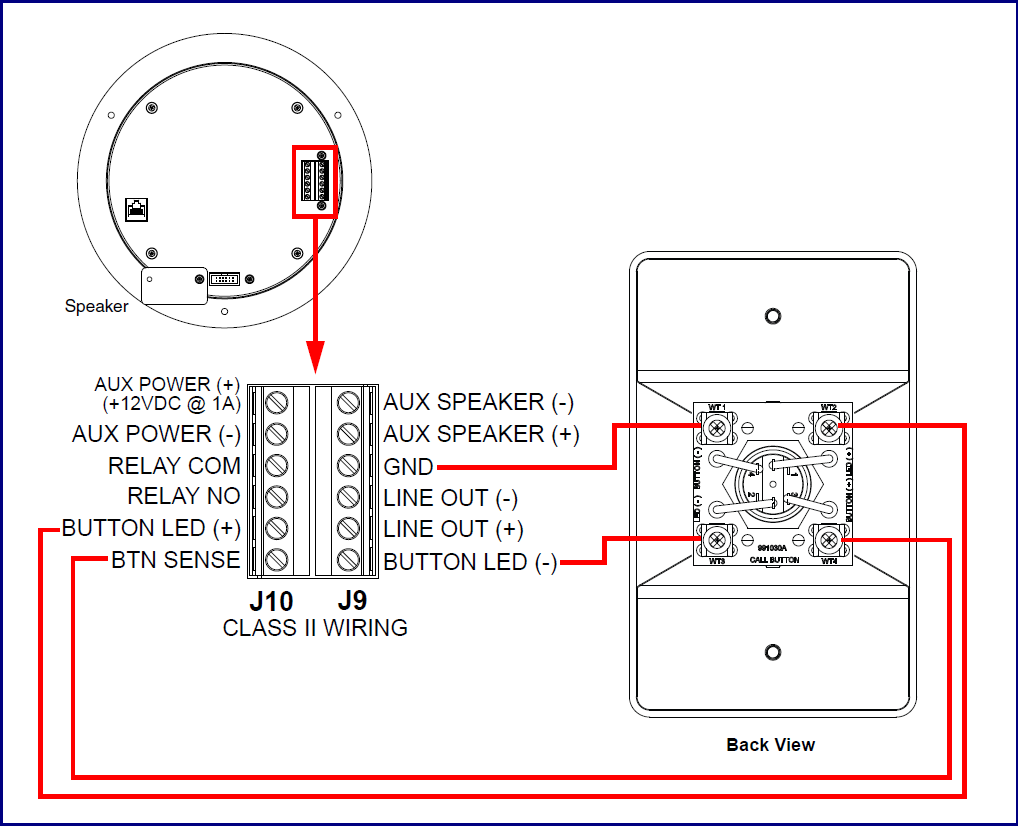

Call Button Connection

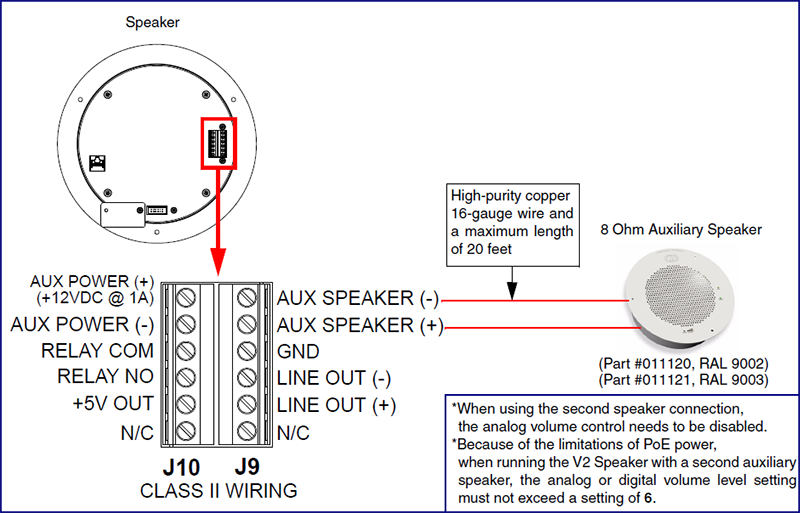

Auxilliary Analog Speaker

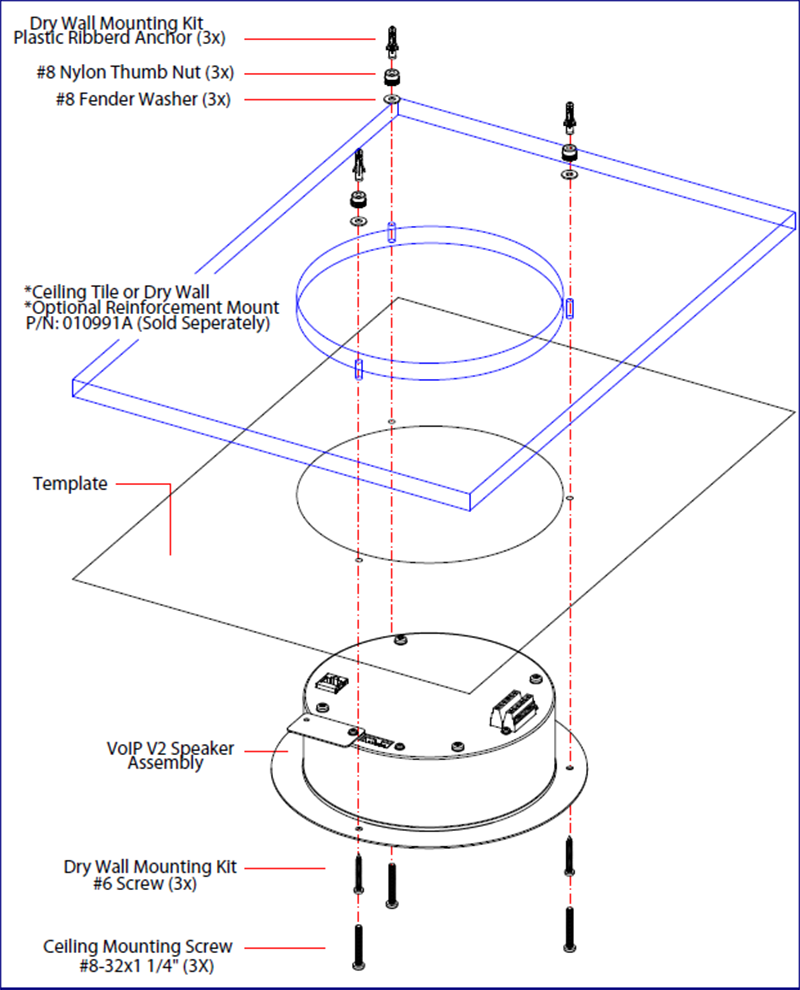

Ceiling Mounting

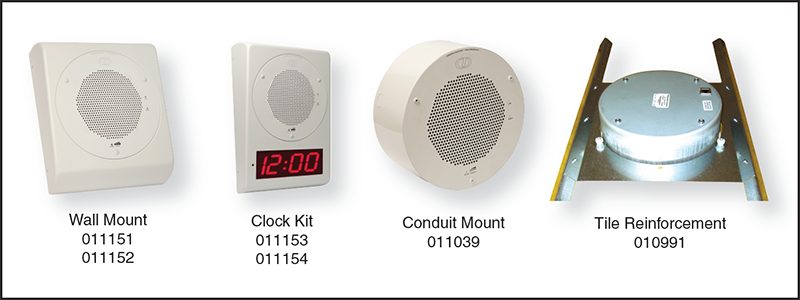

Mounting Options

Downloads
