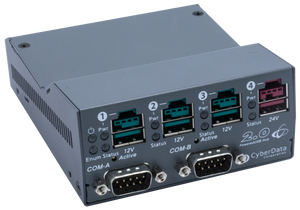

The CyberData 4-port PoweredUSB & RS232 Hub with external power supply provides a simple and affordable way to add four PoweredUSB ports to your PC that are controlled by the PC's Stand-by/Wake commands. With this PoweredUSB add-on hub, it is easy to connect devices that need more than the standard USB interface supplied 500mA of +5 volts. This hub solution also provides legacy serial device connectivity via two RS232 ports allowing you to use existing RS-232 devices until they are ready for migration. The 4-port hub includes plug-n-play installation, three +12V ports (1.5A each) and one +24V port (2.3A), multiple power supply options, peripheral power control by PC stand-by/wake commands, short-circuit and over-current protection, LED indicators to show power and USB 2.0 status, instruction manual, and two-year warranty. The 4-Port hub is also designed to mount into Dell's Retail Integrator system.
Advanced DataLine Protection
The CyberData PoweredUSB hub is designed with circuitry that protects the communication and power lines from damage when hot plugging non-PoweredUSB compliant peripherals.
- 4 PoweredUSB ports
- Advanced DataLine protection
- PoweredUSB.Org .08G compliant
- 2 Full-featured RS232 ports
- Serial ports jumperable for +5V, +12V or +24V output
- Windows "green mode" support
- USB 2.0 Compliant
- PoweredUSB .08g Compliant
| PoweredUSB Ports | 4 |
| PoweredUSB Power Output (std) | 1@24V 2.3A, 3@12V 1.5A each (All ports support standard "A" type +5V USB connection) |
| Port Baud Rates | 480Mbps, 12Mbps, 1.5Mbps |
| RS232 Ports | 2-DB9M with power option |
| Power Input | 24 VDC |
| External LEDs | Power, Link, Status |
| Dimensions | 3.75 inches [95.25 mm] Length 4.25 inches [107.95 mm] Width 1.75 inches [44.45 mm] Height |
| Weight/ Boxed Weight |
1.0 lbs. (0.45 kg) 2.6 lbs. (1.15 kg) |
| Compliance | CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
| Warranty | 2 years limited |
| Part Number | 010845 |
Typical Installation
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:8/15/18 |
| PDF Quick Reference | DATE:5/29/20 |
| PDF Operations Guide | DATE:5/29/20 |
| PDF Operations Guide | DATE:8/2/11 |
| Firmware, Drivers & Utilities | |
| ZIP FTDI Windows drivers and instruction notes | |
Description
The CyberData 4-port PoweredUSB & RS232 Hub with external power supply provides a simple and affordable way to add four PoweredUSB ports to your PC that are controlled by the PC's Stand-by/Wake commands. With this PoweredUSB add-on hub, it is easy to connect devices that need more than the standard USB interface supplied 500mA of +5 volts. This hub solution also provides legacy serial device connectivity via two RS232 ports allowing you to use existing RS-232 devices until they are ready for migration. The 4-port hub includes plug-n-play installation, three +12V ports (1.5A each) and one +24V port (2.3A), multiple power supply options, peripheral power control by PC stand-by/wake commands, short-circuit and over-current protection, LED indicators to show power and USB 2.0 status, instruction manual, and two-year warranty. The 4-Port hub is also designed to mount into Dell's Retail Integrator system.
Advanced DataLine Protection
The CyberData PoweredUSB hub is designed with circuitry that protects the communication and power lines from damage when hot plugging non-PoweredUSB compliant peripherals.
Features
- 4 PoweredUSB ports
- Advanced DataLine protection
- PoweredUSB.Org .08G compliant
- 2 Full-featured RS232 ports
- Serial ports jumperable for +5V, +12V or +24V output
- Windows "green mode" support
- USB 2.0 Compliant
- PoweredUSB .08g Compliant
Specs
| PoweredUSB Ports | 4 |
| PoweredUSB Power Output (std) | 1@24V 2.3A, 3@12V 1.5A each (All ports support standard "A" type +5V USB connection) |
| Port Baud Rates | 480Mbps, 12Mbps, 1.5Mbps |
| RS232 Ports | 2-DB9M with power option |
| Power Input | 24 VDC |
| External LEDs | Power, Link, Status |
| Dimensions | 3.75 inches [95.25 mm] Length 4.25 inches [107.95 mm] Width 1.75 inches [44.45 mm] Height |
| Weight/ Boxed Weight |
1.0 lbs. (0.45 kg) 2.6 lbs. (1.15 kg) |
| Compliance | CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
| Warranty | 2 years limited |
| Part Number | 010845 |
Installation
Typical Installation
Downloads
| Documentation | |
|---|---|
| Description | Date |
| PDF Datasheet | DATE:8/15/18 |
| PDF Quick Reference | DATE:5/29/20 |
| PDF Operations Guide | DATE:5/29/20 |
| PDF Operations Guide | DATE:8/2/11 |
| Firmware, Drivers & Utilities | |
| ZIP FTDI Windows drivers and instruction notes | |
